NVD5867NLT4G
  • Share:

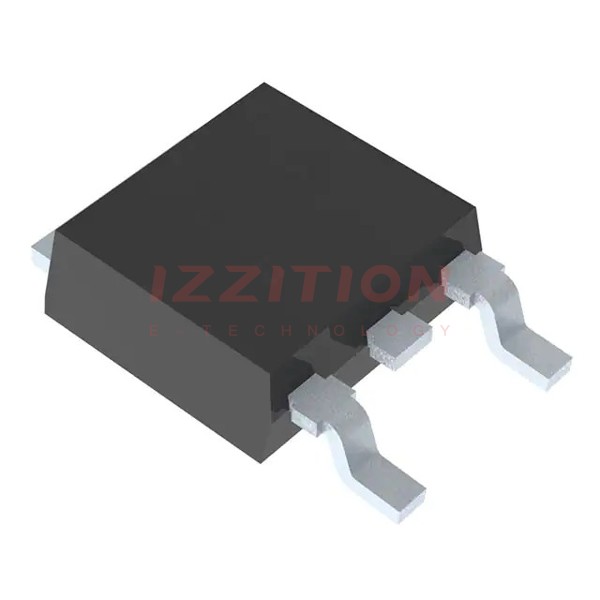

onsemi NVD5867NLT4G

Manufacturer No:
NVD5867NLT4G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 60V 6A/22A DPAK-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NVD5867NLT4G is a high-performance, single N-channel power MOSFET produced by onsemi. This device is designed to operate at high current and voltage levels, making it suitable for a variety of automotive and industrial applications. It features a low on-resistance (RDS(on)) of 39 mΩ at 10 V and 50 mΩ at 4.5 V, which minimizes conduction losses and enhances overall efficiency. The MOSFET is packaged in a DPAK (TO-252) case, which is Pb-free, halogen-free, and RoHS compliant.

Key Specifications

ParameterSymbolValueUnit
Drain-to-Source VoltageVDSS60V
Gate-to-Source VoltageVGS±20V
Continuous Drain Current (RθJC)ID22 A (TC = 25°C), 16 A (TC = 100°C)A
Power Dissipation (RθJC)PD43 W (TC = 25°C), 21 W (TC = 100°C)W
Pulsed Drain CurrentIDM85 AA
Operating Junction and Storage TemperatureTJ, Tstg−55 to 175°C
Source Current (Body Diode)IS36 AA
Single Pulse Drain-to-Source Avalanche EnergyEAS18 mJmJ
Lead Temperature for Soldering PurposesTL260°C
Junction-to-Case Thermal ResistanceRθJC3.5°C/W
Junction-to-Ambient Thermal ResistanceRθJA45°C/W

Key Features

  • Low RDS(on) to minimize conduction losses
  • High current capability of up to 22 A
  • Avalanche energy specified for robust operation
  • AEC-Q101 qualified and PPAP capable, ensuring automotive-grade reliability
  • Pb-free, halogen-free, and RoHS compliant packaging
  • High gate threshold voltage for improved noise immunity
  • Low gate-to-source leakage current

Applications

The NVD5867NLT4G is suitable for a wide range of applications, including:

  • Automotive systems such as power steering, power windows, and fuel pumps
  • Industrial power supplies and motor control systems
  • DC-DC converters and power management systems
  • High-power switching and power amplification

Q & A

  1. What is the maximum drain-to-source voltage of the NVD5867NLT4G? The maximum drain-to-source voltage is 60 V.
  2. What is the continuous drain current at 25°C and 100°C? The continuous drain current is 22 A at 25°C and 16 A at 100°C.
  3. What is the typical on-resistance (RDS(on)) at 10 V and 4.5 V? The typical RDS(on) is 39 mΩ at 10 V and 50 mΩ at 4.5 V.
  4. Is the NVD5867NLT4G AEC-Q101 qualified? Yes, the NVD5867NLT4G is AEC-Q101 qualified and PPAP capable.
  5. What is the junction-to-case thermal resistance? The junction-to-case thermal resistance (RθJC) is 3.5 °C/W.
  6. What is the maximum pulse drain current? The maximum pulse drain current (IDM) is 85 A.
  7. What is the operating junction and storage temperature range? The operating junction and storage temperature range is −55 to 175 °C.
  8. Is the NVD5867NLT4G RoHS compliant? Yes, the NVD5867NLT4G is Pb-free, halogen-free, and RoHS compliant.
  9. What is the single pulse drain-to-source avalanche energy? The single pulse drain-to-source avalanche energy (EAS) is 18 mJ.
  10. What is the lead temperature for soldering purposes? The lead temperature for soldering purposes is 260 °C.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:6A (Ta), 22A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:39mOhm @ 11A, 10V
Vgs(th) (Max) @ Id:2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:15 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:675 pF @ 25 V
FET Feature:-
Power Dissipation (Max):3.3W (Ta), 43W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DPAK-3
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
0 Remaining View Similar

In Stock

-
330

Please send RFQ , we will respond immediately.

Same Series
NVD5867NLT4G-TB01
NVD5867NLT4G-TB01
MOSFET N-CH 60V 6A/22A DPAK-3
NVD5867NLT4G
NVD5867NLT4G
MOSFET N-CH 60V 6A/22A DPAK-3

Similar Products

Part Number NVD5867NLT4G NVD5863NLT4G NVD5865NLT4G
Manufacturer onsemi onsemi onsemi
Product Status Obsolete Obsolete Obsolete
FET Type N-Channel N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60 V 60 V 60 V
Current - Continuous Drain (Id) @ 25°C 6A (Ta), 22A (Tc) 14.9A (Ta), 82A (Tc) 10A (Ta), 46A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V 4.5V, 10V 4.5V, 10V
Rds On (Max) @ Id, Vgs 39mOhm @ 11A, 10V 7.1mOhm @ 41A, 10V 16mOhm @ 19A, 10V
Vgs(th) (Max) @ Id 2.5V @ 250µA 3V @ 250µA 2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 15 nC @ 10 V 70 nC @ 10 V 29 nC @ 10 V
Vgs (Max) ±20V ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 675 pF @ 25 V 3850 pF @ 25 V 1400 pF @ 25 V
FET Feature - - -
Power Dissipation (Max) 3.3W (Ta), 43W (Tc) 3.1W (Ta), 96W (Tc) 3.1W (Ta), 71W (Tc)
Operating Temperature -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Supplier Device Package DPAK-3 DPAK DPAK
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63 TO-252-3, DPak (2 Leads + Tab), SC-63 TO-252-3, DPak (2 Leads + Tab), SC-63
