NVD5867NLT4G-TB01
  • Share:

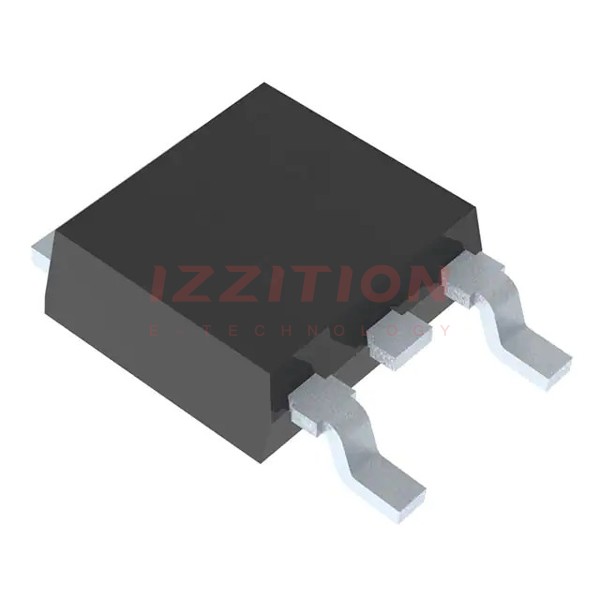

onsemi NVD5867NLT4G-TB01

Manufacturer No:
NVD5867NLT4G-TB01
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 60V 6A/22A DPAK-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NVD5867NLT4G-TB01 is a high-performance power MOSFET manufactured by ON Semiconductor. This device is designed to operate as a single N-channel MOSFET with a drain-to-source voltage (VDSS) of 60V and a continuous drain current (ID) of up to 22A at 25°C. It is packaged in a DPAK-3 configuration, which is Pb-free, halogen-free, and RoHS compliant. The NVD5867NLT4G-TB01 is AEC-Q101 qualified and PPAP capable, making it suitable for automotive and other demanding applications.

Key Specifications

Parameter Symbol Value Unit
Drain-to-Source Voltage VDSS 60 V
Gate-to-Source Voltage VGS ±20 V
Continuous Drain Current (TC = 25°C) ID 22 A
Continuous Drain Current (TC = 100°C) ID 16 A
Power Dissipation (TC = 25°C) PD 43 W
Power Dissipation (TC = 100°C) PD 21 W
Drain-to-Source On Resistance RDS(on) 39 mΩ mΩ
Gate Threshold Voltage VGS(TH) 1.5 - 2.5 V

Key Features

  • Low RDS(on): Minimizes conduction losses, enhancing overall efficiency.
  • High Current Capability: Supports up to 22A of continuous drain current at 25°C.
  • Avalanche Energy Specified: Ensures robust performance under transient conditions.
  • AEC-Q101 Qualified and PPAP Capable: Suitable for automotive and other high-reliability applications.
  • Pb-free, Halogen-free, and RoHS Compliant: Environmentally friendly and compliant with regulatory standards.

Applications

  • Automotive Systems: Ideal for use in automotive powertrain, body, and chassis applications due to its AEC-Q101 qualification.
  • Industrial Power Supplies: Suitable for high-current switching applications in industrial power supplies.
  • Motor Control: Used in motor control circuits for efficient and reliable operation.
  • Power Management: Applicable in various power management systems requiring high current handling and low on-resistance.

Q & A

  1. What is the maximum drain-to-source voltage of the NVD5867NLT4G-TB01?

    The maximum drain-to-source voltage (VDSS) is 60V.

  2. What is the continuous drain current rating at 25°C?

    The continuous drain current (ID) at 25°C is up to 22A.

  3. Is the NVD5867NLT4G-TB01 RoHS compliant?

    Yes, the device is Pb-free, halogen-free, and RoHS compliant.

  4. What is the typical on-resistance of the NVD5867NLT4G-TB01?

    The typical drain-to-source on resistance (RDS(on)) is 39 mΩ.

  5. What are the key features of the NVD5867NLT4G-TB01?

    Key features include low RDS(on), high current capability, avalanche energy specification, and AEC-Q101 qualification.

  6. What package type is the NVD5867NLT4G-TB01 available in?

    The device is packaged in a DPAK-3 configuration.

  7. Is the NVD5867NLT4G-TB01 suitable for automotive applications?

    Yes, it is AEC-Q101 qualified and PPAP capable, making it suitable for automotive and other high-reliability applications.

  8. What is the gate threshold voltage range of the NVD5867NLT4G-TB01?

    The gate threshold voltage (VGS(TH)) range is from 1.5V to 2.5V.

  9. What are some typical applications of the NVD5867NLT4G-TB01?

    Typical applications include automotive systems, industrial power supplies, motor control, and power management systems.

  10. Where can I find detailed specifications and datasheets for the NVD5867NLT4G-TB01?

    Detailed specifications and datasheets can be found on the ON Semiconductor website or through authorized distributors like Mouser Electronics.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:6A (Ta), 22A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:39mOhm @ 11A, 10V
Vgs(th) (Max) @ Id:2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:15 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:675 pF @ 25 V
FET Feature:-
Power Dissipation (Max):3.3W (Ta), 43W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DPAK-3
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
0 Remaining View Similar

In Stock

-
46

Please send RFQ , we will respond immediately.
