MCH6341-TL-W
  • Share:

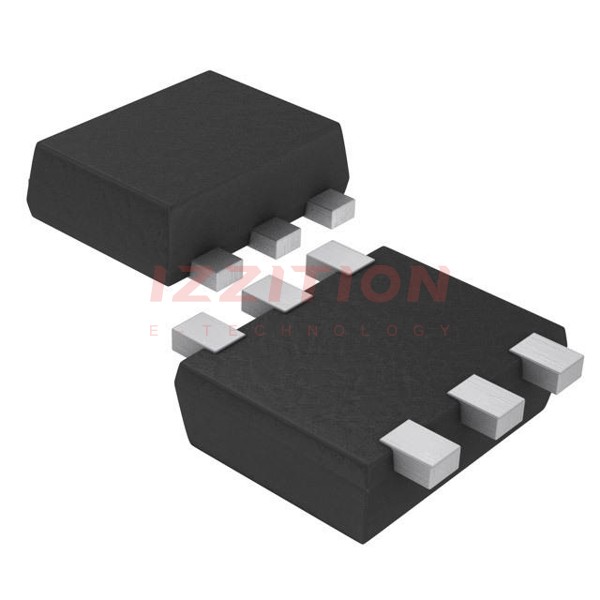

onsemi MCH6341-TL-W

Manufacturer No:
MCH6341-TL-W
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET P-CH 30V 5A 6MCPH
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MCH6341-TL-W is a Power MOSFET manufactured by ON Semiconductor. This device is designed for general-purpose switching applications and features a single P-Channel configuration. It is characterized by its low ON-resistance, 4V drive capability, and ESD diode-protected gate. The MCH6341-TL-W is suitable for a wide range of applications due to its robust specifications and compliance with RoHS and halogen-free standards.

Key Specifications

Parameter Value Parameter Value
Manufacturer ON Semiconductor Technology MOSFET (Metal Oxide)
Mounting Style SMD/SMT Number of Channels 1 Channel
Transistor Polarity P-Channel Vds - Drain-Source Breakdown Voltage 30 V
Id - Continuous Drain Current 5 A Rds On - Drain-Source Resistance 45 mΩ (typ), 59 mΩ (max) @ Vgs = 10V, Id = 3A
Vgs th - Gate-Source Threshold Voltage 2.6 V (max) @ Id = 1mA Vgs - Gate-Source Voltage ±20 V
Qg - Gate Charge 10 nC Minimum Operating Temperature -55°C
Maximum Operating Temperature 150°C Power Dissipation 1.5 W
Configuration Single Channel Mode Enhancement
Packaging Reel Series MCH6341-TL-W
Forward Transconductance - Min 2.8 S @ Vds = 10V, Id = 3A Rise Time 26 ns
Fall Time 35 ns Typical Turn-Off Delay Time 45 ns
Typical Turn-On Delay Time 7.5 ns Unit Weight 0.000265 oz

Key Features

  • Low ON-resistance: The MCH6341-TL-W features a low Rds(on) of 45 mΩ (typ) and 59 mΩ (max) at Vgs = 10V and Id = 3A, making it efficient for switching applications.
  • 4V drive capability: This MOSFET can be driven with a low gate voltage, making it compatible with a variety of control circuits.
  • ESD diode-protected gate: The gate is protected by an ESD diode, enhancing the device's robustness against electrostatic discharge.
  • RoHS and halogen-free compliance: The device is free from lead and halogens, making it environmentally friendly and compliant with current regulations.

Applications

The MCH6341-TL-W is suitable for various general-purpose switching applications, including but not limited to:

  • Power supplies and DC-DC converters
  • Motor control and drive systems
  • Audio and video equipment
  • Industrial control systems
  • Automotive electronics

Q & A

  1. What is the maximum drain-to-source breakdown voltage of the MCH6341-TL-W?

    The maximum drain-to-source breakdown voltage (Vdss) is 30 V.

  2. What is the continuous drain current rating of the MCH6341-TL-W?

    The continuous drain current (Id) is rated at 5 A.

  3. What is the typical ON-resistance of the MCH6341-TL-W?

    The typical ON-resistance (Rds(on)) is 45 mΩ at Vgs = 10V and Id = 3A.

  4. What is the gate-source threshold voltage of the MCH6341-TL-W?

    The gate-source threshold voltage (Vgs(th)) is between 1.2 V and 2.6 V at Id = 1mA.

  5. Is the MCH6341-TL-W RoHS compliant?

    Yes, the MCH6341-TL-W is RoHS compliant and also halogen-free.

  6. What is the maximum operating temperature of the MCH6341-TL-W?

    The maximum operating temperature is 150°C.

  7. What is the gate charge of the MCH6341-TL-W?

    The gate charge (Qg) is 10 nC.

  8. What is the typical turn-on delay time of the MCH6341-TL-W?

    The typical turn-on delay time is 7.5 ns).

  9. What is the typical fall time of the MCH6341-TL-W?

    The typical fall time is 35 ns).

  10. What is the packaging type of the MCH6341-TL-W?

    The device is packaged in a 6-MCPH (6-SMD, Flat Leads) and shipped in reels of 3000 pieces).

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:5A (Ta)
Drive Voltage (Max Rds On, Min Rds On):4V, 10V
Rds On (Max) @ Id, Vgs:59mOhm @ 3A, 10V
Vgs(th) (Max) @ Id:2.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:10 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:430 pF @ 10 V
FET Feature:-
Power Dissipation (Max):-
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:6-MCPH
Package / Case:6-SMD, Flat Leads
0 Remaining View Similar

In Stock

$0.55
862

Please send RFQ , we will respond immediately.

Same Series
MCH6341-TL-E
MCH6341-TL-E
MOSFET P-CH 30V 5A 6MCPH
MCH6341-TL-H
MCH6341-TL-H
MOSFET P-CH 30V 5A 6MCPH

Similar Products

Part Number MCH6341-TL-W MCH6351-TL-W MCH6342-TL-W MCH6344-TL-W MCH6321-TL-W MCH6331-TL-W MCH6341-TL-E MCH6341-TL-H
Manufacturer onsemi onsemi onsemi onsemi onsemi onsemi onsemi onsemi
Product Status Active Active Obsolete Obsolete Obsolete Obsolete Discontinued at Digi-Key Discontinued at Digi-Key
FET Type P-Channel P-Channel P-Channel P-Channel P-Channel P-Channel P-Channel P-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V 12 V 30 V 30 V 20 V 30 V 30 V 30 V
Current - Continuous Drain (Id) @ 25°C 5A (Ta) 9A (Ta) 4.5A (Ta) 2A (Ta) 4A (Ta) 3.5A (Ta) 5A (Ta) 5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4V, 10V 1.5V, 4.5V 1.8V, 4.5V 4V, 10V 1.8V, 4.5V 4V, 10V 4V, 10V 4V, 10V
Rds On (Max) @ Id, Vgs 59mOhm @ 3A, 10V 16.9mOhm @ 4.5A, 4.5V 73mOhm @ 2A, 4.5V 150mOhm @ 1A, 10V 83mOhm @ 2A, 4.5V 98mOhm @ 1.5A, 10V 59mOhm @ 3A, 10V 59mOhm @ 3A, 10V
Vgs(th) (Max) @ Id 2.6V @ 1mA - 1.3V @ 1mA 2.6V @ 1mA - 2.6V @ 1mA - -
Gate Charge (Qg) (Max) @ Vgs 10 nC @ 10 V 20.5 nC @ 4.5 V 8.6 nC @ 4.5 V 3.9 nC @ 10 V 4.6 nC @ 4.5 V 5 nC @ 10 V 10 nC @ 10 V 10 nC @ 10 V
Vgs (Max) ±20V ±10V ±10V ±20V ±10V ±20V ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 430 pF @ 10 V 2200 pF @ 6 V 650 pF @ 10 V 172 pF @ 10 V 375 pF @ 10 V 250 pF @ 10 V 430 pF @ 10 V 430 pF @ 10 V
FET Feature - - - - - - - -
Power Dissipation (Max) - 1.5W (Ta) 1.5W (Ta) 800mW (Ta) 1.5W (Ta) 1.5W (Ta) 1.5W (Ta) 1.5W (Ta)
Operating Temperature 150°C (TJ) 150°C (TJ) 150°C (TJ) 150°C (TJ) 150°C (TJ) 150°C (TJ) - -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Supplier Device Package 6-MCPH 6-MCPH SC-88FL/MCPH6 SC-88FL/MCPH6 6-MCPH SC-88FL/MCPH6 6-MCPH 6-MCPH
Package / Case 6-SMD, Flat Leads 6-SMD, Flat Leads 6-TSSOP, SC-88, SOT-363 6-TSSOP, SC-88, SOT-363 6-SMD, Flat Leads 6-TSSOP, SC-88, SOT-363 6-SMD, Flat Leads 6-SMD, Flat Leads
