Overview

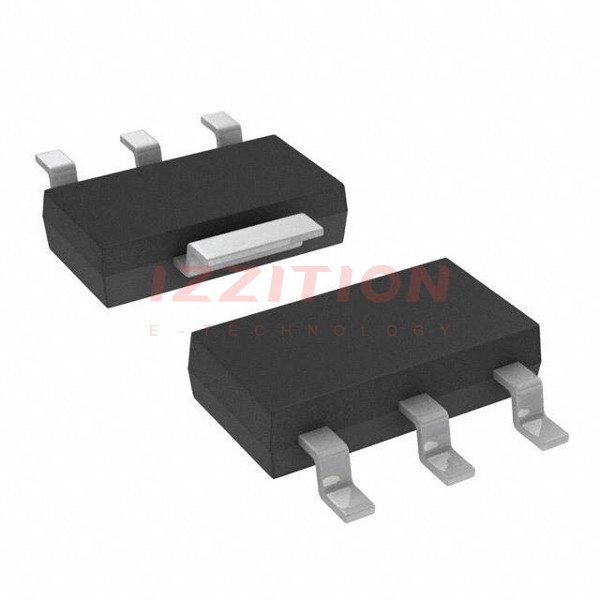

The NTF3055L108T3G is a power, N-Channel, logic level MOSFET produced by onsemi. This device is designed for low voltage, high speed switching applications and is available in the SOT-223 package. It is particularly suited for use in power supplies, converters, power motor controls, and bridge circuits. The NTF3055L108T3G is Pb-free and RoHS compliant, ensuring environmental sustainability and regulatory compliance.
Key Specifications
| Rating | Symbol | Value | Unit |
|---|---|---|---|
| Drain-to-Source Voltage | VDSS | 60 | Vdc |
| Drain-to-Gate Voltage | VDGR | 60 | Vdc |
| Gate-to-Source Voltage (Continuous) | VGS | ±15 | Vdc |
| Gate-to-Source Voltage (Non-repetitive, tp ≤ 10 ms) | VGS | ±20 | Vdc |
| Drain Current (Continuous @ TA = 25°C) | ID | 3.0 | Adc |
| Drain Current (Continuous @ TA = 100°C) | ID | 1.4 | Adc |
| Drain Current (Single Pulse, tp ≤ 10 μs) | IDM | 9.0 | Apk |
| Total Power Dissipation @ TA = 25°C | PD | 2.1 | Watts |
| Total Power Dissipation @ TA = 100°C | PD | 1.3 | Watts |
| Derate above 25°C | 0.014 | W/°C | |
| Operating and Storage Temperature Range | TJ, Tstg | -55 to 175 | °C |
| Single Pulse Drain-to-Source Avalanche Energy | EAS | 74 | mJ |
| Thermal Resistance (Junction-to-Ambient) | RθJA | 72.3 | °C/W |
| Maximum Lead Temperature for Soldering | TL | 260 | °C |
Key Features
- Logic level gate drive for low voltage operation.
- High speed switching capabilities.
- Pb-free and RoHS compliant.
- AEC-Q101 qualified and PPAP capable for automotive and other critical applications.
- Low on-resistance (RDS(on)) of 120 mΩ at VGS = 5.0 V and ID = 1.5 A.
- High drain current of up to 3.0 A.
- High drain-to-source voltage rating of 60 V.
- Low gate threshold voltage (VGS(th)) range of 1.0 to 4.6 V.
Applications
- Power Supplies
- Converters
- Power Motor Controls
- Bridge Circuits
Q & A
- What is the maximum drain-to-source voltage of the NTF3055L108T3G? The maximum drain-to-source voltage is 60 Vdc.
- What is the continuous drain current at 25°C? The continuous drain current at 25°C is 3.0 Adc.
- Is the NTF3055L108T3G Pb-free and RoHS compliant? Yes, it is Pb-free and RoHS compliant.
- What are the typical applications for this MOSFET? Typical applications include power supplies, converters, power motor controls, and bridge circuits.
- What is the thermal resistance (junction-to-ambient) of the NTF3055L108T3G? The thermal resistance (junction-to-ambient) is 72.3 °C/W.
- What is the maximum lead temperature for soldering? The maximum lead temperature for soldering is 260 °C.
- What is the gate threshold voltage range of the NTF3055L108T3G? The gate threshold voltage range is from 1.0 to 4.6 V.
- Is the NTF3055L108T3G AEC-Q101 qualified? Yes, it is AEC-Q101 qualified and PPAP capable.
- What is the on-resistance (RDS(on)) at VGS = 5.0 V and ID = 1.5 A? The on-resistance (RDS(on)) is 120 mΩ.
- What is the single pulse drain-to-source avalanche energy? The single pulse drain-to-source avalanche energy is 74 mJ.
