Overview

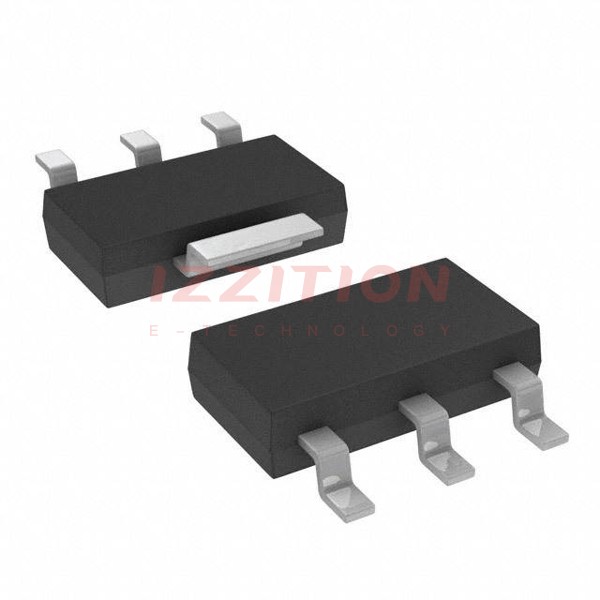

The NVF3055L108T1G is a power MOSFET produced by ON Semiconductor. This N-channel, logic level MOSFET is designed for low voltage, high speed switching applications. It is packaged in a SOT-223 (TO-261) case, which is Pb-free and RoHS compliant. The device is AEC-Q101 qualified and PPAP capable, making it suitable for automotive and other applications requiring unique site and control change requirements.
Key Specifications
| Characteristic | Symbol | Value | Unit |
|---|---|---|---|
| Drain-to-Source Voltage | VDSS | 60 | Vdc |
| Gate-to-Source Voltage - Continuous | VGS | ±15 | Vdc |
| Drain Current - Continuous @ TA = 25°C | ID | 3.0 | Adc |
| Drain Current - Continuous @ TA = 100°C | ID | 1.4 | Adc |
| Single Pulse Drain Current | IDM | 9.0 | Apk |
| Total Power Dissipation @ TA = 25°C | PD | 2.1 | Watts |
| Operating and Storage Temperature Range | TJ, Tstg | -55 to 175 | °C |
| Static Drain-to-Source On-Resistance | RDS(on) | 120 mΩ | mΩ |
| Gate Charge | QT | 15 nC | nC |
| Maximum Lead Temperature for Soldering | TL | 260 | °C |
Key Features
- AEC-Q101 qualified and PPAP capable, suitable for automotive and other applications requiring unique site and control change requirements.
- Pb-free and RoHS compliant.
- Logic level gate drive for ease of use with low voltage control signals.
- Low on-state resistance (RDS(on)) of 120 mΩ.
- High speed switching capabilities.
- Surface mount SOT-223 (TO-261) package.
Applications
- Power Supplies
- Converters
- Power Motor Controls
- Bridge Circuits
Q & A
- What is the maximum drain-to-source voltage of the NVF3055L108T1G MOSFET?
The maximum drain-to-source voltage (VDSS) is 60 Vdc.
- What is the continuous drain current at 25°C for this MOSFET?
The continuous drain current (ID) at 25°C is 3.0 Adc.
- Is the NVF3055L108T1G Pb-free and RoHS compliant?
Yes, the NVF3055L108T1G is Pb-free and RoHS compliant.
- What is the typical on-state resistance (RDS(on)) of this MOSFET?
The typical on-state resistance (RDS(on)) is 120 mΩ.
- What are the operating and storage temperature ranges for this device?
The operating and storage temperature range is -55°C to 175°C.
- What is the maximum gate charge (QT) for the NVF3055L108T1G?
The maximum gate charge (QT) is 15 nC.
- What package type is used for the NVF3055L108T1G?
The device is packaged in a SOT-223 (TO-261) case.
- Is the NVF3055L108T1G suitable for automotive applications?
Yes, it is AEC-Q101 qualified and PPAP capable, making it suitable for automotive applications.
- What are some common applications for the NVF3055L108T1G MOSFET?
Common applications include power supplies, converters, power motor controls, and bridge circuits.
- What is the maximum lead temperature for soldering purposes?
The maximum lead temperature for soldering purposes is 260°C.
