FDN337N-F169
  • Share:

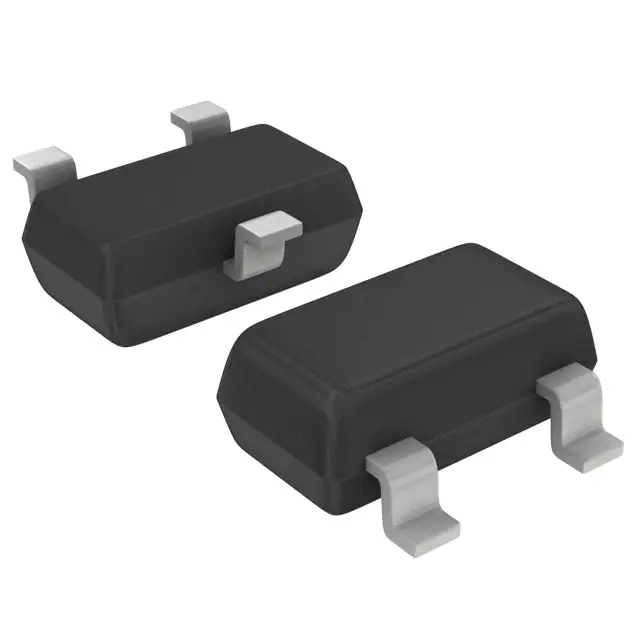

onsemi FDN337N-F169

Manufacturer No:
FDN337N-F169
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 30V 2.2A SOT23-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FDN337N-F169 is an N-Channel, logic level, enhancement mode field effect transistor produced by onsemi. This transistor is fabricated using onsemi's proprietary, high cell density, DMOS technology, which is designed to minimize on-state resistance. The device is particularly suited for low voltage applications in devices such as notebook computers, portable phones, PCMCIA cards, and other battery-powered circuits where fast switching and low in-line power loss are critical.

Key Specifications

ParameterValueUnit
Drain-Source Voltage (V_DS)30V
Drain Current (I_D)2.2A
On-Resistance (R_DS(on)) @ V_GS = 4.5 V0.065Ω
On-Resistance (R_DS(on)) @ V_GS = 2.5 V0.082Ω
Gate-Source Voltage (V_GS)±8V
Gate Threshold Voltage (V_gs(th))1V
Thermal Resistance, Junction-to-Ambient250°C/W
Thermal Resistance, Junction-to-Case75°C/W
Package TypeSOT-23-3

Key Features

  • High density cell design for extremely low R_DS(on)
  • Exceptional on-resistance and maximum DC current capability
  • Industry standard outline SOT-23 surface mount package using proprietary SuperSOT™-3 design for superior thermal and electrical capabilities
  • Fast switching and low in-line power loss, making it suitable for battery-powered circuits

Applications

The FDN337N-F169 is suitable for a variety of applications, including:

  • Notebook computers
  • Portable phones
  • PCMCIA cards
  • Other battery-powered circuits where fast switching and low power loss are essential

Q & A

  1. What is the maximum drain-source voltage of the FDN337N-F169?
    The maximum drain-source voltage is 30 V.
  2. What is the maximum drain current of the FDN337N-F169?
    The maximum drain current is 2.2 A.
  3. What is the on-resistance of the FDN337N-F169 at V_GS = 4.5 V?
    The on-resistance is 0.065 Ω at V_GS = 4.5 V.
  4. What is the on-resistance of the FDN337N-F169 at V_GS = 2.5 V?
    The on-resistance is 0.082 Ω at V_GS = 2.5 V.
  5. What is the package type of the FDN337N-F169?
    The package type is SOT-23-3.
  6. What are the typical applications of the FDN337N-F169?
    Typical applications include notebook computers, portable phones, PCMCIA cards, and other battery-powered circuits.
  7. What technology is used to fabricate the FDN337N-F169?
    The FDN337N-F169 is fabricated using onsemi's proprietary, high cell density, DMOS technology.
  8. What are the thermal resistance values for the FDN337N-F169?
    The thermal resistance, junction-to-ambient, is 250 °C/W, and the thermal resistance, junction-to-case, is 75 °C/W.
  9. Is the FDN337N-F169 still in production?
    No, the FDN337N-F169 is no longer manufactured and is listed as obsolete.
  10. Where can I find substitutes for the FDN337N-F169?
    You can find substitutes on the onsemi website or through distributors like Digi-Key.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:2.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On):2.5V, 4.5V
Rds On (Max) @ Id, Vgs:65mOhm @ 2.2A, 4.5V
Vgs(th) (Max) @ Id:1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:9 nC @ 4.5 V
Vgs (Max):±8V
Input Capacitance (Ciss) (Max) @ Vds:300 pF @ 10 V
FET Feature:-
Power Dissipation (Max):500mW (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SOT-23-3
Package / Case:TO-236-3, SC-59, SOT-23-3
0 Remaining View Similar

In Stock

-
53

Please send RFQ , we will respond immediately.
