Overview

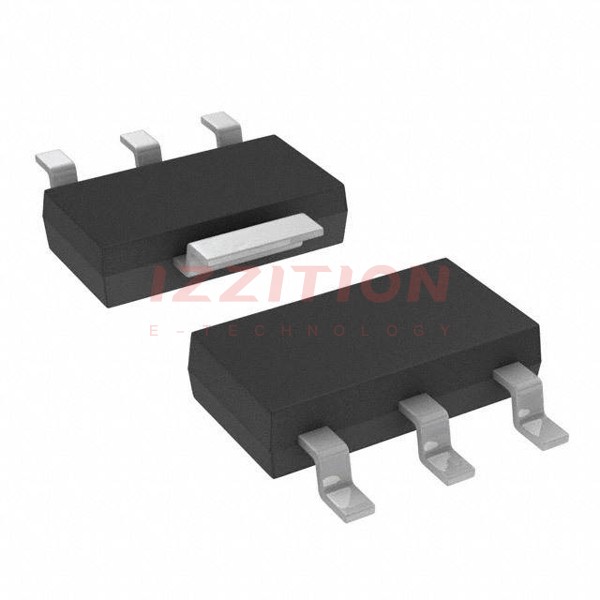

The NVF3055-100T1G is a power MOSFET produced by onsemi, designed for low voltage, high speed switching applications. This N-Channel MOSFET is packaged in a SOT-223 (TO-261) case and is Pb-Free and RoHS compliant. It is particularly suited for use in power supplies, converters, power motor controls, and bridge circuits. The device is AEC-Q101 qualified and PPAP capable, making it suitable for automotive and other applications requiring unique site and control change requirements.
Key Specifications
| Rating | Symbol | Value | Unit |
|---|---|---|---|
| Drain-to-Source Voltage | VDSS | 60 | Vdc |
| Drain-to-Gate Voltage (RGS = 10 MΩ) | VDGR | 60 | Vdc |
| Gate-to-Source Voltage | VGS | ±20 (Continuous), ±30 (Non-repetitive, tp ≤ 10 ms) | Vdc, Vpk |
| Drain Current | ID | 3.0 A (Continuous @ TA = 25°C), 1.4 A (Continuous @ TA = 100°C), 9.0 A (Single Pulse, tp ≤ 10 μs) | Adc, Apk |
| Total Power Dissipation @ TA = 25°C | PD | 2.1 W (Note 1), 1.3 W (Note 2) | W |
| Operating and Storage Temperature Range | TJ, Tstg | -55 to 175 | °C |
| Single Pulse Drain-to-Source Avalanche Energy | EAS | 74 mJ | mJ |
| Thermal Resistance - Junction-to-Ambient | RθJA | 72.3 °C/W (Note 1), 114 °C/W (Note 2) | °C/W |
| Maximum Lead Temperature for Soldering | TL | 260 | °C |
| Static Drain-to-Source On-Resistance | RDS(on) | 88 - 110 mΩ (VGS = 10 Vdc, ID = 1.5 A) | mΩ |
Key Features
- AEC-Q101 qualified and PPAP capable, making it suitable for automotive and other applications requiring unique site and control change requirements.
- Pb-Free and RoHS compliant.
- High speed switching capabilities.
- Low on-resistance (RDS(on) = 88 - 110 mΩ at VGS = 10 Vdc, ID = 1.5 A).
- High drain current (3.0 A continuous at TA = 25°C).
- Wide operating temperature range (-55°C to 175°C).
Applications
- Power Supplies
- Converters
- Power Motor Controls
- Bridge Circuits
Q & A
- What is the maximum drain-to-source voltage of the NVF3055-100T1G MOSFET? The maximum drain-to-source voltage is 60 Vdc.
- What is the continuous drain current rating at 25°C? The continuous drain current rating at 25°C is 3.0 A.
- Is the NVF3055-100T1G Pb-Free and RoHS compliant? Yes, the NVF3055-100T1G is Pb-Free and RoHS compliant.
- What are the typical applications for this MOSFET? Typical applications include power supplies, converters, power motor controls, and bridge circuits.
- What is the thermal resistance (junction-to-ambient) for this device? The thermal resistance (junction-to-ambient) is 72.3 °C/W (Note 1) and 114 °C/W (Note 2).
- What is the maximum lead temperature for soldering? The maximum lead temperature for soldering is 260°C.
- What is the static drain-to-source on-resistance? The static drain-to-source on-resistance is 88 - 110 mΩ at VGS = 10 Vdc, ID = 1.5 A.
- Is the NVF3055-100T1G AEC-Q101 qualified? Yes, the NVF3055-100T1G is AEC-Q101 qualified and PPAP capable.
- What is the operating temperature range of the NVF3055-100T1G? The operating temperature range is -55°C to 175°C.
- What package type is used for the NVF3055-100T1G? The NVF3055-100T1G is packaged in a SOT-223 (TO-261) case.
