Overview

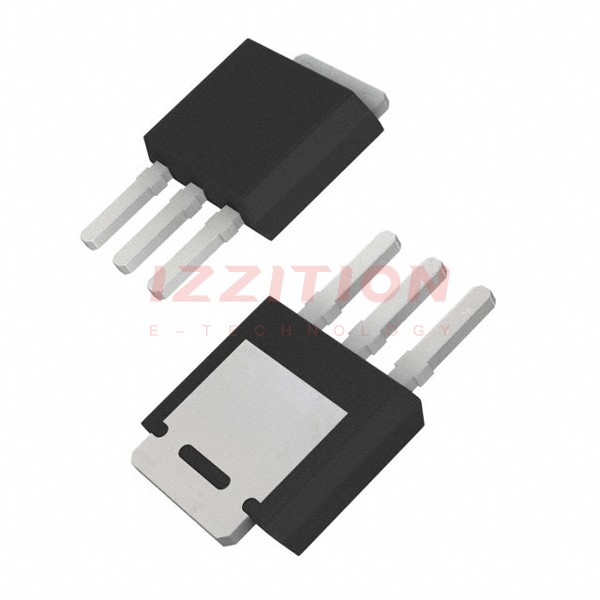

The NTD25P03L1G is a Single P-Channel Logic Level Power MOSFET designed and manufactured by onsemi. This device is optimized for low voltage, high speed switching applications and is capable of withstanding high energy levels in both avalanche and commutation modes. It features a drain-to-source voltage (Vdss) of -30V and a continuous drain current (Id) of -25A at 25°C, with a maximum on-resistance (Rds On) of 80mΩ at 25A and 5V gate-to-source voltage. The MOSFET is packaged in a TO-251-3 (IPAK) case, making it suitable for through-hole mounting.
Key Specifications
Parameter | Value | Unit |
---|---|---|
Drain to Source Voltage (Vdss) | -30 | V |
Continuous Drain Current (Id) @ 25°C | -25 | A |
Maximum On-Resistance (Rds On) @ Id, Vgs | 80 mΩ @ 25A, 5V | mΩ |
Gate Threshold Voltage (Vgs(th)) @ Id | 2V @ 250µA | V |
Maximum Gate to Source Voltage (Vgs) | ±15 | V |
Power Dissipation (Max) @ Tj | 75 | W |
Operating Temperature Range | -55°C to 150°C | °C |
Package / Case | TO-251-3 Short Leads, IPAK, TO-251AA | |
Mounting Type | Through Hole | |
Input Capacitance (Ciss) @ Vds | 1260 pF @ 25 V | pF |
Gate Charge (Qg) @ Vgs | 20 nC @ 5 V | nC |
Key Features
- Designed for low voltage, high speed switching applications.
- Able to withstand high energy in avalanche and commutation modes.
- Pb-Free and RoHS Compliant.
- AEC-Q101 Qualified and PPAP Capable for automotive and other applications requiring unique site and control change requirements.
- Comparable source-to-drain diode recovery time to a discrete fast recovery diode.
Applications
- PWM Motor Controls.
- Power Supplies.
- Converters.
- Bridge Circuits.
- Soft Start Circuits.
- Overcurrent Protection.
- Resonant Converters.
Q & A
- What is the maximum drain-to-source voltage of the NTD25P03L1G MOSFET?
The maximum drain-to-source voltage (Vdss) is -30V. - What is the continuous drain current rating of the NTD25P03L1G at 25°C?
The continuous drain current (Id) is -25A at 25°C. - What is the typical on-resistance of the NTD25P03L1G?
The maximum on-resistance (Rds On) is 80mΩ at 25A and 5V gate-to-source voltage. - What is the gate threshold voltage of the NTD25P03L1G?
The gate threshold voltage (Vgs(th)) is 2V at 250µA. - What is the maximum gate-to-source voltage for the NTD25P03L1G?
The maximum gate-to-source voltage (Vgs) is ±15V. - What is the power dissipation rating of the NTD25P03L1G?
The maximum power dissipation is 75W at Tj. - What is the operating temperature range of the NTD25P03L1G?
The operating temperature range is -55°C to 150°C. - In what package is the NTD25P03L1G available?
The NTD25P03L1G is available in a TO-251-3 (IPAK) package. - Is the NTD25P03L1G Pb-Free and RoHS Compliant?
Yes, the NTD25P03L1G is Pb-Free and RoHS Compliant. - What are some typical applications of the NTD25P03L1G?
Typical applications include PWM Motor Controls, Power Supplies, Converters, Bridge Circuits, Soft Start Circuits, Overcurrent Protection, and Resonant Converters.
