NTBG080N120SC1
  • Share:

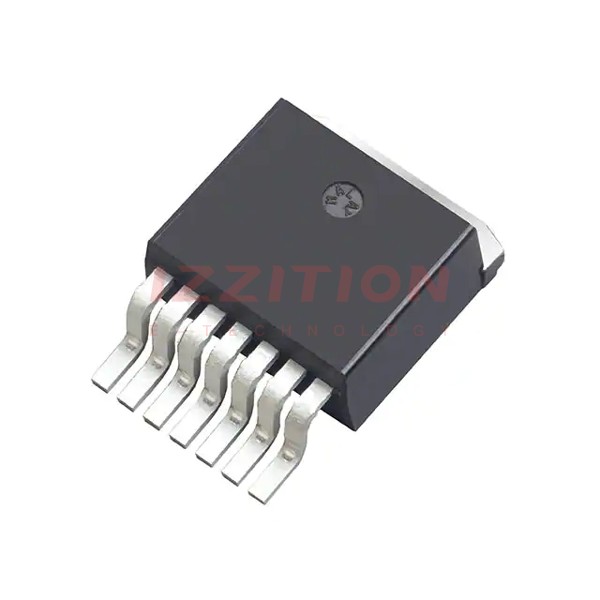

onsemi NTBG080N120SC1

Manufacturer No:
NTBG080N120SC1
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
SICFET N-CH 1200V 30A D2PAK-7
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NTBG080N120SC1 is a high-performance N-Channel Silicon Carbide (SiC) MOSFET produced by onsemi. This device is part of the EliteSiC family, known for its fast switching and rugged design. The NTBG080N120SC1 offers significant advantages over traditional silicon MOSFETs, including higher blocking voltage, higher thermal conductivity, and lower on-state resistance. These characteristics make it ideal for applications requiring high efficiency, compact design, and reliable operation in high-temperature environments.

Key Specifications

Parameter Value Unit
Drain-to-Source Breakdown Voltage (VBR(DSS)) 1200 V
Continuous Drain Current (ID) 30 A
On-State Resistance (RDS(on)) 40
Gate Threshold Voltage (VGS(TH)) VGS = VDS, ID = 5 mA -
Input Capacitance (CISS) VGS = 0 V, f = 1 MHz -
Maximum Junction Temperature (TJ(max)) 175 °C
Package Type D2PAK-7L (TO-263-7L HV) -

Key Features

  • High Blocking Voltage: 1200 V, making it suitable for high-voltage applications.
  • Low On-State Resistance: 40 mΩ, which reduces power losses and increases efficiency.
  • High Thermal Conductivity: Better heat dissipation compared to silicon MOSFETs.
  • Fast Switching: Enables high-frequency operation and reduces switching losses.
  • Compact Design: Smaller component size due to reduced need for inductors and filters.
  • High-Temperature Operation: Can operate efficiently in high-temperature environments up to 175°C.

Applications

  • Power Supplies: High-efficiency power supplies, including DC-DC converters and AC-DC converters.
  • Motor Drives: Electric vehicle drives, industrial motor drives, and servo drives.
  • Renewable Energy Systems: Solar inverters, wind turbine inverters, and energy storage systems.
  • Industrial Power Systems: Uninterruptible power supplies (UPS), power factor correction (PFC), and other industrial power applications.

Q & A

  1. What is the NTBG080N120SC1 MOSFET used for?

    The NTBG080N120SC1 is used in high-performance applications requiring high efficiency, fast switching, and rugged design, such as power supplies, motor drives, renewable energy systems, and industrial power systems.

  2. What are the key advantages of using SiC MOSFETs over silicon MOSFETs?

    SIC MOSFETs offer higher blocking voltage, higher thermal conductivity, lower on-state resistance, and the ability to operate at higher temperatures and switching frequencies.

  3. What is the maximum drain current of the NTBG080N120SC1?

    The maximum continuous drain current is 30 A.

  4. What is the on-state resistance of the NTBG080N120SC1?

    The on-state resistance (RDS(on)) is 40 mΩ.

  5. What is the maximum junction temperature for the NTBG080N120SC1?

    The maximum junction temperature is 175°C.

  6. In what package is the NTBG080N120SC1 available?

    The NTBG080N120SC1 is available in the D2PAK-7L (TO-263-7L HV) package.

  7. Why is the NTBG080N120SC1 beneficial for high-frequency applications?

    It is beneficial due to its fast switching capabilities, which reduce switching losses and enable high-frequency operation.

  8. How does the NTBG080N120SC1 contribute to compact system design?

    It contributes by reducing the need for larger inductors and filters, allowing for a more compact system design.

  9. What are some common applications for the NTBG080N120SC1 in renewable energy systems?

    Common applications include solar inverters, wind turbine inverters, and energy storage systems.

  10. Is the NTBG080N120SC1 suitable for high-voltage applications?

    Yes, it is suitable with a drain-to-source breakdown voltage of 1200 V.

Product Attributes

FET Type:N-Channel
Technology:SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss):1200 V
Current - Continuous Drain (Id) @ 25°C:30A (Tc)
Drive Voltage (Max Rds On, Min Rds On):20V
Rds On (Max) @ Id, Vgs:110mOhm @ 20A, 20V
Vgs(th) (Max) @ Id:4.3V @ 5mA
Gate Charge (Qg) (Max) @ Vgs:56 nC @ 20 V
Vgs (Max):+25, -15V
Input Capacitance (Ciss) (Max) @ Vds:1154 pF @ 800 V
FET Feature:-
Power Dissipation (Max):179W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:D2PAK-7
Package / Case:TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
0 Remaining View Similar

In Stock

$14.64
46

Please send RFQ , we will respond immediately.

Same Series
DD26M20LV5Z
DD26M20LV5Z
CONN D-SUB HD PLUG 26P SLDR CUP
DD15S10LVLS/AA
DD15S10LVLS/AA
CONN D-SUB HD RCPT 15POS CRIMP
RD15S10HV30/AA
RD15S10HV30/AA
CONN D-SUB RCPT 15POS CRIMP
DD15S20LV5S
DD15S20LV5S
CONN D-SUB HD RCPT 15P SLDR CUP
CBC9W4S10HV3S/AA
CBC9W4S10HV3S/AA
CONN D-SUB RCPT 9POS CRIMP
DD26S200T20/AA
DD26S200T20/AA
CONN D-SUB HD RCPT 26P SLDR CUP
CBC9W4S10HE3S/AA
CBC9W4S10HE3S/AA
CONN D-SUB RCPT 9POS CRIMP
DD26S10HT20/AA
DD26S10HT20/AA
CONN D-SUB HD RCPT 26POS CRIMP
DD62M32S0V3S/AA
DD62M32S0V3S/AA
CONN D-SUB HD PLUG 62P VERT SLDR
DD44S32S0T2X
DD44S32S0T2X
CONN D-SUB HD RCPT 44P VERT SLDR
DD26S2S50V50/AA
DD26S2S50V50/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD44S32S500X
DD44S32S500X
CONN D-SUB HD RCPT 44P VERT SLDR

Similar Products

Part Number NTBG080N120SC1 NTBG020N120SC1 NTBG040N120SC1
Manufacturer onsemi onsemi onsemi
Product Status Active Active Active
FET Type N-Channel N-Channel N-Channel
Technology SiCFET (Silicon Carbide) SiCFET (Silicon Carbide) SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) 1200 V 1200 V 1200 V
Current - Continuous Drain (Id) @ 25°C 30A (Tc) 8.6A (Ta), 98A (Tc) 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 20V 20V 20V
Rds On (Max) @ Id, Vgs 110mOhm @ 20A, 20V 28mOhm @ 60A, 20V 56mOhm @ 35A, 20V
Vgs(th) (Max) @ Id 4.3V @ 5mA 4.3V @ 20mA 4.3V @ 10mA
Gate Charge (Qg) (Max) @ Vgs 56 nC @ 20 V 220 nC @ 20 V 106 nC @ 20 V
Vgs (Max) +25, -15V +25V, -15V +25V, -15V
Input Capacitance (Ciss) (Max) @ Vds 1154 pF @ 800 V 2943 pF @ 800 V 1789 pF @ 800 V
FET Feature - - -
Power Dissipation (Max) 179W (Tc) 3.7W (Ta), 468W (Tc) 357W (Tc)
Operating Temperature -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Supplier Device Package D2PAK-7 D2PAK-7 D2PAK-7
Package / Case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA TO-263-8, D²Pak (7 Leads + Tab), TO-263CA TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
