NTBG020N120SC1
  • Share:

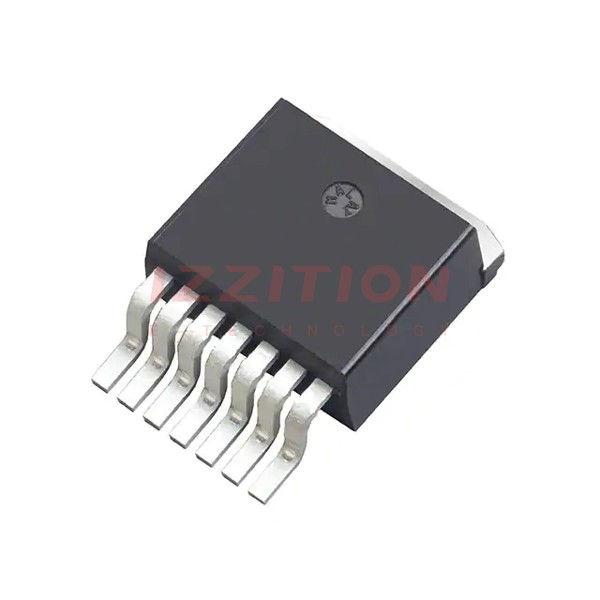

onsemi NTBG020N120SC1

Manufacturer No:
NTBG020N120SC1
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
SICFET N-CH 1200V 8.6A/98A D2PAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NTBG020N120SC1 is a Silicon Carbide (SiC) MOSFET from onsemi, part of their EliteSiC series. This device utilizes advanced SiC technology to offer superior switching performance and higher reliability compared to traditional silicon MOSFETs. Key benefits include low ON resistance, ultra-low gate charge, and high junction temperature tolerance, leading to increased efficiency, faster operation frequencies, and reduced system size and EMI.

Key Specifications

Parameter Value
Channel Type N-Channel
Blocking Voltage (BVDSS) 1200 V
Continuous Drain Current (ID) 98 A (at Tc)
Drain Source On-State Resistance (RDS(on)) 20 mΩ (at 25°C)
Total Gate Charge (Qg) 220 nC
Output Capacitance 258 pF
Junction Temperature (Tj) 175°C
Package Type D2PAK-7L (TO-263-7L HV)

Key Features

  • Low On Resistance: 20 mΩ at 25°C, ensuring minimal energy loss.
  • Ultra Low Gate Charge: 220 nC, facilitating faster switching times.
  • High Junction Temperature: Operates efficiently up to 175°C.
  • High UIS, Surge Current, and Avalanche Capability: Enhanced robustness against transient events.
  • Compact Design: Smaller component size due to the inherent properties of SiC technology.
  • High Efficiency and Reduced EMI: Leads to higher system efficiency and reduced electromagnetic interference.

Applications

  • DC-DC Converters: Ideal for high-efficiency power conversion.
  • Boost Inverters: Suitable for applications requiring high voltage and efficiency.
  • Solar Systems: Enhances the efficiency of solar power systems.
  • Charging Stations: Used in electric vehicle charging infrastructure for fast and efficient charging.
  • Motor Drives: Improves the performance and efficiency of motor drive systems.
  • AUX Power Supplies: Provides reliable and efficient power supply solutions.

Q & A

  1. What is the blocking voltage of the NTBG020N120SC1 MOSFET?

    The blocking voltage (BVDSS) is 1200 V.

  2. What is the continuous drain current rating of the NTBG020N120SC1?

    The continuous drain current (ID) is 98 A at Tc.

  3. What is the typical on-state resistance of the NTBG020N120SC1 at 25°C?

    The typical on-state resistance (RDS(on)) is 20 mΩ at 25°C.

  4. What is the total gate charge of the NTBG020N120SC1?

    The total gate charge (Qg) is 220 nC.

  5. What is the maximum junction temperature of the NTBG020N120SC1?

    The maximum junction temperature (Tj) is 175°C.

  6. In what package is the NTBG020N120SC1 available?

    The NTBG020N120SC1 is available in the D2PAK-7L (TO-263-7L HV) package.

  7. What are some of the key applications for the NTBG020N120SC1?

    Key applications include DC-DC converters, boost inverters, solar systems, charging stations, motor drives, and AUX power supplies.

  8. How does the NTBG020N120SC1 compare to traditional silicon MOSFETs?

    The NTBG020N120SC1 offers superior switching performance, higher reliability, lower on-state resistance, and higher thermal conductivity compared to traditional silicon MOSFETs.

  9. What are the benefits of using SiC MOSFETs like the NTBG020N120SC1?

    Benefits include higher efficiency, faster operation frequencies, increased power density, reduced EMI, and a more compact system size.

  10. Is the NTBG020N120SC1 suitable for high-temperature environments?

    Yes, the NTBG020N120SC1 can operate efficiently in high-temperature environments up to 175°C.

Product Attributes

FET Type:N-Channel
Technology:SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss):1200 V
Current - Continuous Drain (Id) @ 25°C:8.6A (Ta), 98A (Tc)
Drive Voltage (Max Rds On, Min Rds On):20V
Rds On (Max) @ Id, Vgs:28mOhm @ 60A, 20V
Vgs(th) (Max) @ Id:4.3V @ 20mA
Gate Charge (Qg) (Max) @ Vgs:220 nC @ 20 V
Vgs (Max):+25V, -15V
Input Capacitance (Ciss) (Max) @ Vds:2943 pF @ 800 V
FET Feature:-
Power Dissipation (Max):3.7W (Ta), 468W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:D2PAK-7
Package / Case:TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
0 Remaining View Similar

In Stock

$49.55
6

Please send RFQ , we will respond immediately.

Same Series
DD15S2S5WV5X
DD15S2S5WV5X
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S200ES/AA
DD15S200ES/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD26M20HE20/AA
DD26M20HE20/AA
CONN D-SUB HD PLUG 26P SLDR CUP
CBC9W4S10HV3S/AA
CBC9W4S10HV3S/AA
CONN D-SUB RCPT 9POS CRIMP
CBC9W4S10HT2S/AA
CBC9W4S10HT2S/AA
CONN D-SUB RCPT 9POS CRIMP
DD44S32S0TS/AA
DD44S32S0TS/AA
CONN D-SUB HD RCPT 44P VERT SLDR
DD26S200T0/AA
DD26S200T0/AA
CONN D-SUB HD RCPT 26P SLDR CUP
CBC9W4S10HES/AA
CBC9W4S10HES/AA
CONN D-SUB RCPT 9POS CRIMP
DD44S32S00X
DD44S32S00X
CONN D-SUB HD RCPT 44P VERT SLDR
DD44S3200T0
DD44S3200T0
CONN D-SUB HD RCPT 44P VERT SLDR
DD44S32S0V3X/AA
DD44S32S0V3X/AA
CONN D-SUB HD RCPT 44P VERT SLDR
DD26S20L00
DD26S20L00
CONN D-SUB HD RCPT 26P SLDR CUP

Similar Products

Part Number NTBG020N120SC1 NTBG040N120SC1 NTBG080N120SC1
Manufacturer onsemi onsemi onsemi
Product Status Active Active Active
FET Type N-Channel N-Channel N-Channel
Technology SiCFET (Silicon Carbide) SiCFET (Silicon Carbide) SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) 1200 V 1200 V 1200 V
Current - Continuous Drain (Id) @ 25°C 8.6A (Ta), 98A (Tc) 60A (Tc) 30A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 20V 20V 20V
Rds On (Max) @ Id, Vgs 28mOhm @ 60A, 20V 56mOhm @ 35A, 20V 110mOhm @ 20A, 20V
Vgs(th) (Max) @ Id 4.3V @ 20mA 4.3V @ 10mA 4.3V @ 5mA
Gate Charge (Qg) (Max) @ Vgs 220 nC @ 20 V 106 nC @ 20 V 56 nC @ 20 V
Vgs (Max) +25V, -15V +25V, -15V +25, -15V
Input Capacitance (Ciss) (Max) @ Vds 2943 pF @ 800 V 1789 pF @ 800 V 1154 pF @ 800 V
FET Feature - - -
Power Dissipation (Max) 3.7W (Ta), 468W (Tc) 357W (Tc) 179W (Tc)
Operating Temperature -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Supplier Device Package D2PAK-7 D2PAK-7 D2PAK-7
Package / Case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA TO-263-8, D²Pak (7 Leads + Tab), TO-263CA TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
