onsemi NTA4153NT1G

Manufacturer No:
NTA4153NT1G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 20V 915MA SC75
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

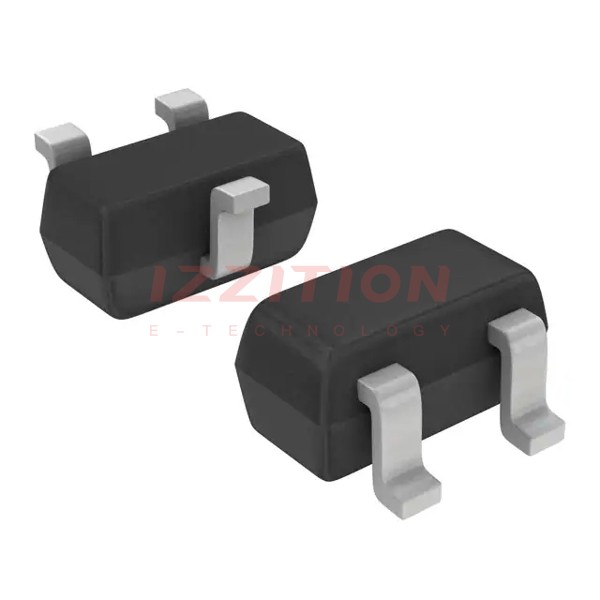

The NTA4153NT1G is a single N-channel MOSFET produced by onsemi, designed for small signal applications. This MOSFET operates in enhancement mode and is known for its low on-resistance and high efficiency. It features a maximum drain-to-source voltage of 20V and a continuous drain current of 915mA. The device is packaged in a SC-75/SOT-416 package, which is lead-free and suitable for surface mount assembly. The NTA4153NT1G is also ESD protected, making it robust against electrostatic discharge.

Key Specifications

Parameter Value Units
FET Type N-Channel
No of Channels 1
Drain-to-Source Voltage (Vdss) 20 V
Drain-Source On Resistance-Max (RDS(on)) 950 mΩ
Rated Power Dissipation 300 mW
Gate Charge (Qg) 1.82 nC
Gate-Source Voltage-Max (Vgss) ±6 V
Drain Current 915 mA
Turn-on Delay Time 3.7 ns
Turn-off Delay Time 25 ns
Rise Time 4.4 ns
Fall Time 7.6 ns
Operating Temperature Range -55°C to +150°C
Gate Source Threshold Voltage 1.1 V
Technology Silicon
Package Style SC-75/SOT-416
Mounting Method Surface Mount

Key Features

  • Low On-Resistance: The NTA4153NT1G features a low drain-to-source on-resistance (RDS(on)) of up to 950 mΩ, improving system efficiency.
  • Low Threshold Voltage: With a gate-source threshold voltage of 1.1 V, this MOSFET is suitable for low-voltage applications.
  • ESD Protection: The device includes built-in ESD protection, enhancing its robustness against electrostatic discharge.
  • Pb-Free Package: The SC-75/SOT-416 package is lead-free, making it compliant with environmental regulations.
  • Wide Operating Temperature Range: The MOSFET operates over a temperature range of -55°C to +150°C, making it suitable for a variety of applications.

Applications

  • Load/Power Switches: Ideal for switching applications where low on-resistance and high efficiency are required.
  • Power Supply Converter Circuits: Used in power supply circuits to improve efficiency and reduce power losses.
  • Battery Management: Suitable for battery management systems in portable devices.
  • Portable Electronics: Commonly used in cell phones, PDAs, digital cameras, and pagers due to its small size and low power consumption.

Q & A

  1. What is the maximum drain-to-source voltage of the NTA4153NT1G MOSFET?

    The maximum drain-to-source voltage is 20V.

  2. What is the continuous drain current rating of the NTA4153NT1G?

    The continuous drain current rating is 915mA.

  3. What is the typical on-resistance of the NTA4153NT1G?

    The typical on-resistance (RDS(on)) is up to 950 mΩ.

  4. Does the NTA4153NT1G have ESD protection?

    Yes, the device includes built-in ESD protection.

  5. What is the operating temperature range of the NTA4153NT1G?

    The operating temperature range is -55°C to +150°C.

  6. What type of package does the NTA4153NT1G come in?

    The device is packaged in a SC-75/SOT-416 package.

  7. Is the NTA4153NT1G lead-free?

    Yes, the package is lead-free.

  8. What are some common applications of the NTA4153NT1G?

    Common applications include load/power switches, power supply converter circuits, battery management, and portable electronics.

  9. What is the gate-source threshold voltage of the NTA4153NT1G?

    The gate-source threshold voltage is 1.1 V.

  10. How is the NTA4153NT1G mounted?

    The device is mounted using surface mount technology.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):20 V
Current - Continuous Drain (Id) @ 25°C:915mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):1.5V, 4.5V
Rds On (Max) @ Id, Vgs:230mOhm @ 600mA, 4.5V
Vgs(th) (Max) @ Id:1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:1.82 nC @ 4.5 V
Vgs (Max):±6V
Input Capacitance (Ciss) (Max) @ Vds:110 pF @ 16 V
FET Feature:-
Power Dissipation (Max):300mW (Tj)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SC-75, SOT-416
Package / Case:SC-75, SOT-416
