Overview

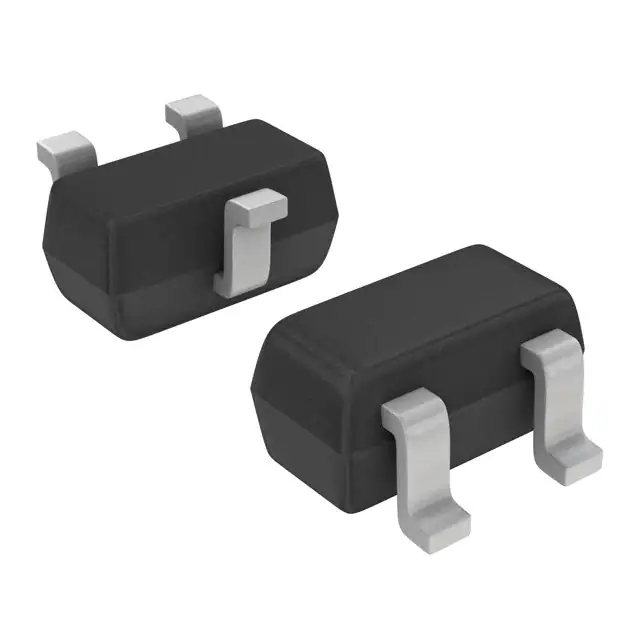

The NTA4151PT1H is a small signal MOSFET (Metal Oxide Semiconductor Field-Effect Transistor) produced by onsemi. This P-channel MOSFET is designed for low-power applications and is known for its compact package and efficient performance. The device is housed in a SC-75 (SOT-416) package, making it suitable for space-constrained designs. It is also RoHS3 compliant, ensuring environmental sustainability.
Key Specifications
| Parameter | Value |
|---|---|
| Drain-Source Breakdown Voltage (Vds) | 20 V |
| Continuous Drain Current (Id) @ 25°C | 760 mA |
| Drain-Source Resistance (Rds On) | 1 Ω |
| Gate-Source Voltage (Vgs) | -20 V to 10 V (typical range) |
| Package | SC-75, SOT-416 |
| RoHS Status | RoHS3 Compliant |
Key Features
- P-channel MOSFET for low-power applications
- Compact SC-75 (SOT-416) package
- Low on-resistance (Rds On) of 1 Ω
- Continuous drain current of 760 mA at 25°C
- Drain-source breakdown voltage of 20 V
- RoHS3 compliant for environmental sustainability
Applications
The NTA4151PT1H is suitable for various low-power applications, including:
- Switching circuits
- Amplifier circuits
- Voltage regulators
- Audio and video equipment
- Consumer electronics
Q & A
- What is the drain-source breakdown voltage of the NTA4151PT1H?
The drain-source breakdown voltage (Vds) is 20 V. - What is the continuous drain current of the NTA4151PT1H at 25°C?
The continuous drain current (Id) at 25°C is 760 mA. - What is the on-resistance (Rds On) of the NTA4151PT1H?
The on-resistance (Rds On) is 1 Ω. - In what package is the NTA4151PT1H available?
The NTA4151PT1H is available in the SC-75 (SOT-416) package. - Is the NTA4151PT1H RoHS compliant?
Yes, the NTA4151PT1H is RoHS3 compliant. - What are some typical applications of the NTA4151PT1H?
Typical applications include switching circuits, amplifier circuits, voltage regulators, audio and video equipment, and consumer electronics. - What is the gate-source voltage range for the NTA4151PT1H?
The gate-source voltage (Vgs) range is typically from -20 V to 10 V. - Why is the SC-75 package beneficial?
The SC-75 package is beneficial due to its compact size, making it suitable for space-constrained designs. - How does the NTA4151PT1H contribute to environmental sustainability?
The NTA4151PT1H is RoHS3 compliant, which ensures it meets environmental sustainability standards. - Where can I find detailed specifications for the NTA4151PT1H?
Detailed specifications can be found in the datasheet available on the manufacturer's website or through distributors like Mouser, Digi-Key, and others.
