Overview

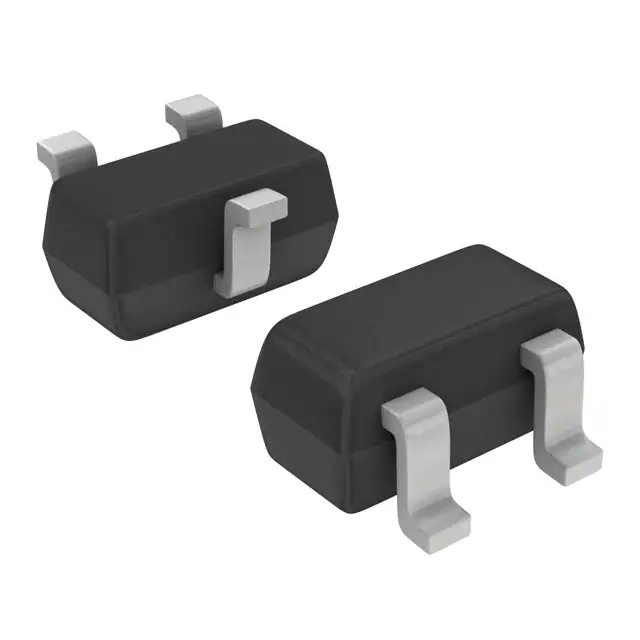

The NTA4151PT1G is a single, P-Channel, small signal MOSFET produced by onsemi. This device is designed for high efficiency and reliability in various electronic applications. It features a low RDS(on) for higher efficiency and longer battery life, making it suitable for battery-operated systems. The MOSFET is available in the SC-75 package, which is a small outline package measuring 1.6 x 1.6 mm, and is Pb-Free, Halogen Free/BFR Free, and RoHS compliant.
Key Specifications
| Parameter | Symbol | Value | Units |
|---|---|---|---|
| Drain-to-Source Voltage | VDSS | -20 | V |
| Gate-to-Source Voltage | VGS | ±6.0 | V |
| Continuous Drain Current | ID | -760 | mA |
| Power Dissipation (Steady State) | PD | 301 (SC-75), 313 (SC-89) | mW |
| Pulsed Drain Current | IDM | ±1000 | mA |
| Operating Junction and Storage Temperature | TJ, TSTG | -55 to 150 | °C |
| Continuous Source Current (Body Diode) | IS | -250 | mA |
| Lead Temperature for Soldering Purposes | TL | 260 | °C |
| Gate-to-Source ESD Rating (Human Body Model) | ESD | 1800 | V |
| Junction-to-Ambient Thermal Resistance (Steady State) | RJA | 415 (SC-75), 400 (SC-89) | °C/W |
| Drain-to-Source On Resistance | RDS(on) | 0.26 @ -4.5 V, 0.35 @ -2.5 V, 0.49 @ -1.8 V | Ω |
Key Features
- Low RDS(on) for higher efficiency and longer battery life
- Small Outline Package (1.6 x 1.6 mm) in SC-75 and SC-89 packages
- ESD protected gate
- Pb-Free, Halogen Free/BFR Free, and RoHS compliant
Applications
- High side load switch
- DC-DC conversion
- Small drive circuits
- Battery operated systems such as cell phones, PDAs, digital cameras, etc.
Q & A
- What is the maximum drain-to-source voltage of the NTA4151PT1G?
The maximum drain-to-source voltage (VDSS) is -20 V.
- What is the continuous drain current rating of the NTA4151PT1G?
The continuous drain current (ID) is -760 mA.
- What are the package options for the NTA4151PT1G?
The device is available in SC-75 and SC-89 packages.
- Is the NTA4151PT1G RoHS compliant?
- What is the typical on-resistance of the NTA4151PT1G?
The typical on-resistance (RDS(on)) is 0.26 Ω at VGS = -4.5 V, 0.35 Ω at VGS = -2.5 V, and 0.49 Ω at VGS = -1.8 V.
- What are some common applications for the NTA4151PT1G?
- What is the operating junction temperature range for the NTA4151PT1G?
The operating junction temperature range is -55°C to 150°C.
- What is the gate-to-source ESD rating of the NTA4151PT1G?
The gate-to-source ESD rating is 1800 V (Human Body Model).
- What is the lead temperature for soldering purposes?
The lead temperature for soldering purposes is 260°C.
- How does the NTA4151PT1G contribute to battery life in devices?
The low RDS(on) of the NTA4151PT1G contributes to higher efficiency and longer battery life in battery-operated systems.
