Product Introduction

Overview

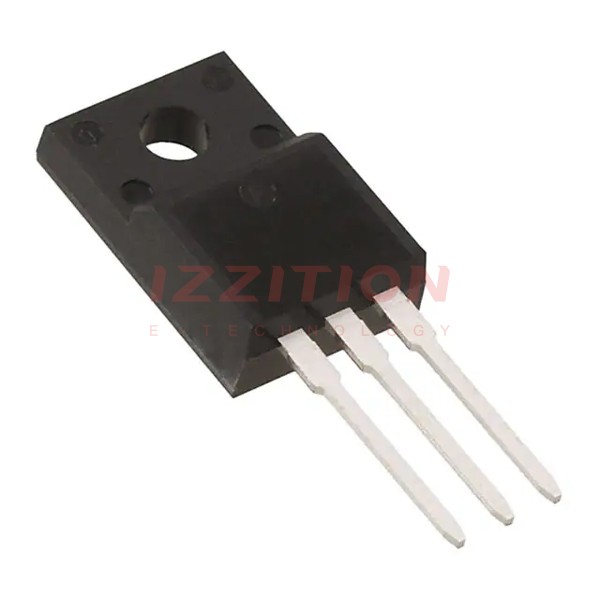

The NDFP03N150CG is a high-performance N-Channel Power MOSFET produced by onsemi. This device is designed to operate in high-voltage and high-current applications, making it suitable for a variety of industrial and power management systems. The MOSFET features an enhancement mode channel and is packaged in a TO220F-3FS case, which provides good thermal dissipation and mechanical stability.

Key Specifications

ParameterValue
FET TypeN-Channel MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)1500 V (1.5 kV)
Current - Continuous Drain (Id) @ 25°C2.5 A
Power Dissipation (Pd)32 W
Minimum Operating Temperature-55°C
Maximum Operating Temperature+150°C
Channel ModeEnhancement
PackageTO220F-3FS

Key Features

  • High voltage rating of 1500 V, making it suitable for high-voltage applications.
  • Continuous drain current of 2.5 A at 25°C, ensuring reliable operation in high-current scenarios.
  • Enhancement mode channel for efficient switching and control.
  • Wide operating temperature range from -55°C to +150°C, enhancing durability and reliability in various environments.
  • TO220F-3FS package for good thermal dissipation and mechanical stability.

Applications

The NDFP03N150CG is ideal for various high-power and high-voltage applications, including but not limited to:

  • Power supplies and DC-DC converters.
  • Motor control and drive systems.
  • Industrial automation and control systems.
  • High-voltage power management in medical and aerospace equipment.

Q & A

  1. What is the maximum drain to source voltage of the NDFP03N150CG?
    The maximum drain to source voltage (Vdss) is 1500 V (1.5 kV).
  2. What is the continuous drain current rating at 25°C?
    The continuous drain current (Id) at 25°C is 2.5 A.
  3. What is the operating temperature range of the NDFP03N150CG?
    The operating temperature range is from -55°C to +150°C.
  4. What type of channel does the NDFP03N150CG have?
    The NDFP03N150CG has an enhancement mode channel.
  5. What is the power dissipation rating of the NDFP03N150CG?
    The power dissipation (Pd) is 32 W.
  6. In what package is the NDFP03N150CG available?
    The NDFP03N150CG is available in the TO220F-3FS package.
  7. Is the NDFP03N150CG suitable for high-voltage applications?
    Yes, it is suitable for high-voltage applications due to its 1500 V rating.
  8. Can the NDFP03N150CG be used in motor control systems?
    Yes, it can be used in motor control and drive systems due to its high current and voltage ratings.
  9. Is the NDFP03N150CG obsolete?
    Yes, the NDFP03N150CG is listed as obsolete on some supplier websites.
  10. What are some common applications of the NDFP03N150CG?
    Common applications include power supplies, DC-DC converters, industrial automation, and high-voltage power management in medical and aerospace equipment.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):1500 V
Current - Continuous Drain (Id) @ 25°C:2.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:10.5Ohm @ 1A, 10V
Vgs(th) (Max) @ Id:-
Gate Charge (Qg) (Max) @ Vgs:34 nC @ 10 V
Vgs (Max):±30V
Input Capacitance (Ciss) (Max) @ Vds:650 pF @ 30 V
FET Feature:-
Power Dissipation (Max):2W (Ta), 32W (Tc)
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-220-3
Package / Case:TO-220-3 Full Pack
