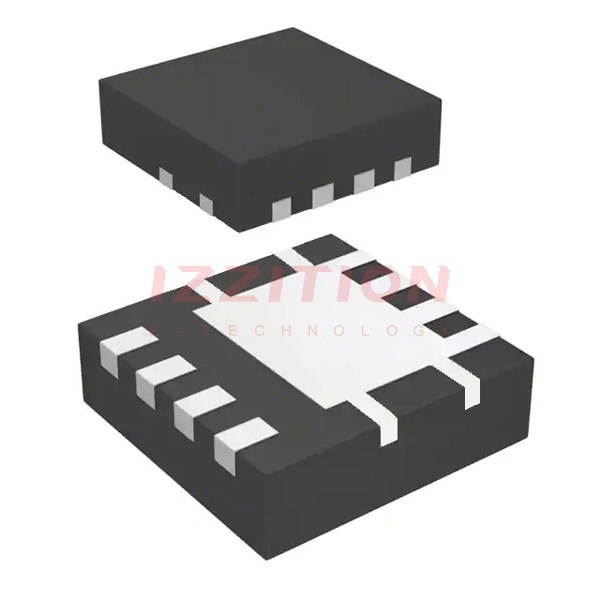

onsemi FDMC4435BZ

Manufacturer No:
FDMC4435BZ
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET P-CH 30V 8.5A/18A 8MLP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FDMC4435BZ is a P-Channel Power Trench® MOSFET produced by onsemi, utilizing their advanced POWERTRENCH process. This device is designed to minimize on-state resistance, making it highly suitable for power management and load switching applications. It is particularly well-suited for use in notebook computers and portable battery packs due to its high performance and current handling capabilities.

Key Specifications

Parameter Rating Unit
VDS (Drain to Source Voltage) −30 V
VGS (Gate to Source Voltage) ±25 V
ID (Drain Current) - Continuous −18 A
ID (Drain Current) - Pulsed −50 A
rDS(on) at VGS = −10 V, ID = −8.5 A 20 mΩ
rDS(on) at VGS = −4.5 V, ID = −6.3 A 37 mΩ
EAS (Single Pulse Avalanche Energy) 32 mJ
PD (Power Dissipation) at TC = 25°C 31 W
TJ, TSTG (Operating and Storage Junction Temperature Range) −55 to +150 °C
RJC (Thermal Resistance, Junction to Case) 4 °C/W
RJA (Thermal Resistance, Junction to Ambient) 53 °C/W

Key Features

  • Max rDS(on) = 20 mΩ at VGS = −10 V, ID = −8.5 A and 37 mΩ at VGS = −4.5 V, ID = −6.3 A.
  • Extended VGSS range (−25 V) for battery applications.
  • High performance trench technology for extremely low rDS(on).
  • High power and current handling capability.
  • HBM ESD protection level > 7 kV typical.
  • 100% UIL tested.
  • Pb-free and RoHS compliant.

Applications

  • High side in DC-DC buck converters.
  • Notebook battery power management.
  • Load switch in notebook computers.

Q & A

  1. What is the maximum drain to source voltage (VDS) of the FDMC4435BZ MOSFET?

    The maximum drain to source voltage (VDS) is −30 V.

  2. What is the maximum continuous drain current (ID) of the FDMC4435BZ MOSFET?

    The maximum continuous drain current (ID) is −18 A at TC = 25°C.

  3. What is the typical on-state resistance (rDS(on)) of the FDMC4435BZ MOSFET at VGS = −10 V and ID = −8.5 A?

    The typical on-state resistance (rDS(on)) is 20 mΩ at VGS = −10 V and ID = −8.5 A.

  4. Does the FDMC4435BZ MOSFET have ESD protection? 7 kV typical.

  5. Is the FDMC4435BZ MOSFET RoHS compliant?
  6. What are the typical applications of the FDMC4435BZ MOSFET?
  7. What is the operating and storage junction temperature range of the FDMC4435BZ MOSFET?
  8. What is the thermal resistance, junction to case (RJC), of the FDMC4435BZ MOSFET?
  9. What is the thermal resistance, junction to ambient (RJA), of the FDMC4435BZ MOSFET?
  10. Does the FDMC4435BZ MOSFET have any special testing or certification?
  11. What package options are available for the FDMC4435BZ MOSFET?

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:8.5A (Ta), 18A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:20mOhm @ 8.5A, 10V
Vgs(th) (Max) @ Id:3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:46 nC @ 10 V
Vgs (Max):±25V
Input Capacitance (Ciss) (Max) @ Vds:2045 pF @ 15 V
FET Feature:-
Power Dissipation (Max):2.3W (Ta), 31W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-MLP (3.3x3.3)
Package / Case:8-PowerWDFN
0 Remaining View Similar

In Stock

$0.95
433

Please send RFQ , we will respond immediately.
