FDMC4435BZ-F126
  • Share:

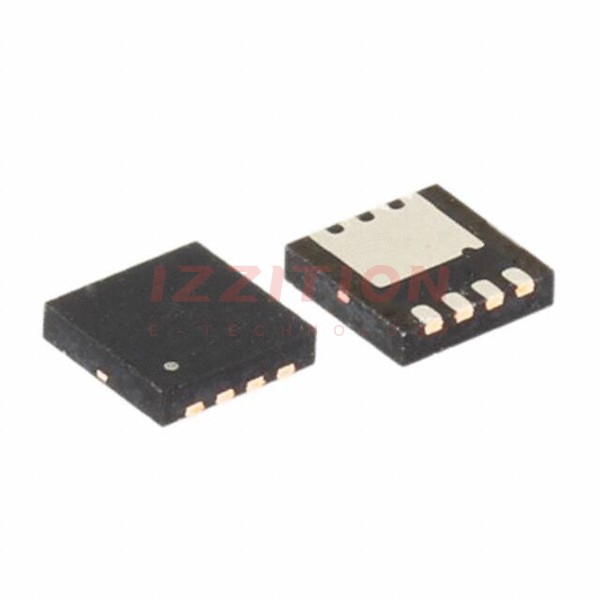

onsemi FDMC4435BZ-F126

Manufacturer No:
FDMC4435BZ-F126
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET P-CH 30V 8.5A/18A 8MLP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FDMC4435BZ-F126 is a P-Channel Power Trench MOSFET produced by onsemi, formerly known as Fairchild Semiconductor. This MOSFET is designed using onsemi's advanced POWERTRENCH process, which enhances its performance and efficiency. It is part of the FDMC4435BZ series, offering high current handling and low on-resistance, making it suitable for various power management applications.

Key Specifications

ParameterValue
Channel PolarityP-Channel
ConfigurationSingle
V(BR)DSS Min (V)-30V
ID (A)-18A
Container TypeREEL
Container Qty.3000

Key Features

  • Advanced POWERTRENCH process for improved performance and efficiency.
  • High current handling capability of up to -18A.
  • Low on-resistance, reducing power losses.
  • P-Channel configuration for versatile application in power management circuits.
  • Compact package suitable for space-constrained designs.

Applications

  • Power management in DC-DC converters and power supplies.
  • Motor control and drive systems.
  • Battery management systems.
  • Automotive electronics, including fuel pumps and anti-lock braking systems (ABS).
  • Industrial control systems and automation.

Q & A

  1. What is the channel polarity of the FDMC4435BZ-F126 MOSFET?
    The FDMC4435BZ-F126 is a P-Channel MOSFET.
  2. What is the maximum current handling capability of this MOSFET?
    The maximum current handling capability is -18A.
  3. What is the minimum drain-source breakdown voltage (V(BR)DSS) of this MOSFET?
    The minimum drain-source breakdown voltage is -30V.
  4. What is the container type and quantity for the FDMC4435BZ-F126?
    The container type is REEL, and the container quantity is 3000.
  5. What process is used to manufacture this MOSFET?
    This MOSFET is manufactured using onsemi's advanced POWERTRENCH process.
  6. What are some common applications of the FDMC4435BZ-F126?
    Common applications include power management in DC-DC converters, motor control, battery management systems, automotive electronics, and industrial control systems.
  7. Is the FDMC4435BZ-F126 suitable for high-power applications?
    Yes, it is suitable for high-power applications due to its high current handling and low on-resistance.
  8. Where can I find detailed specifications and datasheets for the FDMC4435BZ-F126?
    Detailed specifications and datasheets can be found on the onsemi website, as well as on distributor websites like Digi-Key and Mouser.
  9. What is the status of the FDMC4435BZ-F126 in terms of availability?
    The FDMC4435BZ-F126 is currently active and available for purchase.
  10. Can the FDMC4435BZ-F126 be used in automotive applications?
    Yes, it can be used in automotive applications such as fuel pumps and anti-lock braking systems (ABS).

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:8.5A (Ta), 18A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:20mOhm @ 8.5A, 10V
Vgs(th) (Max) @ Id:3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:46 nC @ 10 V
Vgs (Max):±25V
Input Capacitance (Ciss) (Max) @ Vds:2045 pF @ 15 V
FET Feature:-
Power Dissipation (Max):2.3W (Ta), 31W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-MLP (3.3x3.3)
Package / Case:8-PowerWDFN
0 Remaining View Similar

In Stock

-
382

Please send RFQ , we will respond immediately.
