ATP302-TL-H
  • Share:

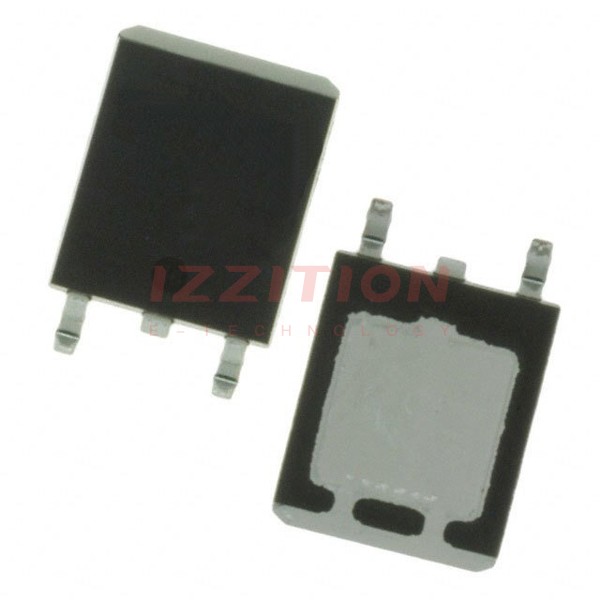

onsemi ATP302-TL-H

Manufacturer No:
ATP302-TL-H
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET P-CH 60V 70A ATPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The ATP302-TL-H is a P-Channel power MOSFET produced by onsemi. This surface mount device is part of the ATPAK package family and is designed for high-power applications. It is currently scheduled for obsolescence and will be discontinued by the manufacturer.

Key Specifications

ParameterSymbolConditionsRatingsUnit
Drain-to-Source VoltageVDSS--60V
Gate-to-Source VoltageVGSS--±20V
Drain Current (DC)IDTa = 25°C70A
Max Pulsed Drain CurrentIDMTp = 10μs280A
Max Power DissipationPDTc = 25°C70W
Avalanche Energy RatingEASVDD = 50V, ID = 70A197mJ

Key Features

  • P-Channel MOSFET with a high drain current rating of up to 70A at 25°C.
  • High voltage rating of 60V drain-to-source voltage.
  • Maximum pulsed drain current of 280A.
  • Maximum power dissipation of 70W at Tc = 25°C.
  • Avalanche energy rating of 197mJ.

Applications

The ATP302-TL-H is suitable for various high-power applications, including but not limited to:

  • Power supplies and DC-DC converters.
  • Motor control and drive systems.
  • High-frequency switching circuits.
  • Automotive and industrial power management systems.

Q & A

  1. What is the drain-to-source voltage rating of the ATP302-TL-H? The drain-to-source voltage rating is 60V.
  2. What is the maximum drain current at 25°C? The maximum drain current at 25°C is 70A.
  3. What is the maximum pulsed drain current? The maximum pulsed drain current is 280A.
  4. What is the maximum power dissipation at Tc = 25°C? The maximum power dissipation at Tc = 25°C is 70W.
  5. What is the avalanche energy rating? The avalanche energy rating is 197mJ.
  6. What package type does the ATP302-TL-H use? The ATP302-TL-H uses the ATPAK surface mount package.
  7. Is the ATP302-TL-H still in production? No, the ATP302-TL-H is scheduled for obsolescence and will be discontinued by the manufacturer.
  8. What are some common applications for the ATP302-TL-H? Common applications include power supplies, motor control systems, high-frequency switching circuits, and automotive/industrial power management systems.
  9. What is the gate-to-source voltage rating? The gate-to-source voltage rating is ±20V.
  10. Where can I find detailed specifications for the ATP302-TL-H? Detailed specifications can be found on the datasheets available from Mouser, Digi-Key, and other electronic component distributors.

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:70A (Ta)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:13mOhm @ 35A, 10V
Vgs(th) (Max) @ Id:-
Gate Charge (Qg) (Max) @ Vgs:115 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:5400 pF @ 20 V
FET Feature:-
Power Dissipation (Max):70W (Tc)
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:ATPAK
Package / Case:ATPAK (2 leads+tab)
