STL115N10F7AG
  • Share:

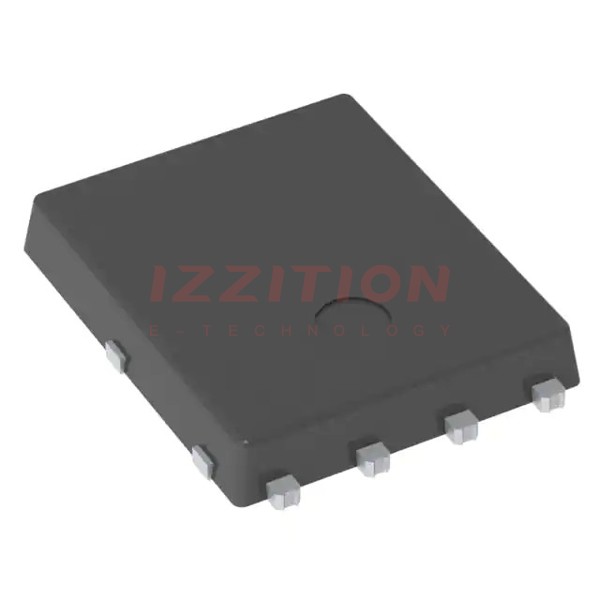

STMicroelectronics STL115N10F7AG

Manufacturer No:
STL115N10F7AG
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 100V 107A POWERFLAT
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STL115N10F7AG is an automotive-grade N-channel Power MOSFET manufactured by STMicroelectronics. This device utilizes the advanced STripFET™ F7 technology, which features an enhanced trench gate structure. This technology results in very low on-state resistance, making the MOSFET highly efficient for various power management applications.

Key Specifications

Parameter Value
VDS (Drain-Source Voltage) 100 V
RDS(on) (On-State Resistance) 0.005 Ω (typ.)
ID (Continuous Drain Current) 107 A
Package PowerFLAT 5x6
Temperature Range -40°C to 150°C

Key Features

  • STripFET™ F7 technology with enhanced trench gate structure for low on-state resistance.
  • High current handling capability of up to 107 A.
  • Automotive-grade, ensuring reliability and performance in demanding automotive applications.
  • Compact PowerFLAT 5x6 package, optimizing space and thermal performance.
  • Wide operating temperature range from -40°C to 150°C.

Applications

  • Automotive systems, including power steering, power windows, and fuel pumps.
  • Electric vehicles and hybrid electric vehicles.
  • Industrial power supplies and motor control systems.
  • High-power switching applications requiring low on-state resistance.

Q & A

  1. What is the maximum drain-source voltage of the STL115N10F7AG?

    The maximum drain-source voltage (VDS) is 100 V.

  2. What is the typical on-state resistance of the STL115N10F7AG?

    The typical on-state resistance (RDS(on)) is 0.005 Ω.

  3. What is the continuous drain current rating of the STL115N10F7AG?

    The continuous drain current (ID) is 107 A.

  4. In what package is the STL115N10F7AG available?

    The STL115N10F7AG is available in the PowerFLAT 5x6 package.

  5. What is the operating temperature range of the STL115N10F7AG?

    The operating temperature range is from -40°C to 150°C.

  6. What technology does the STL115N10F7AG use?

    The STL115N10F7AG uses STripFET™ F7 technology with an enhanced trench gate structure.

  7. Is the STL115N10F7AG suitable for automotive applications?

    Yes, it is an automotive-grade component, making it suitable for various automotive applications.

  8. What are some common applications for the STL115N10F7AG?

    Common applications include automotive systems, electric vehicles, industrial power supplies, and high-power switching applications.

  9. Why is the PowerFLAT 5x6 package beneficial?

    The PowerFLAT 5x6 package is beneficial for its compact size and improved thermal performance.

  10. Where can I find detailed specifications for the STL115N10F7AG?

    Detailed specifications can be found in the datasheet available on STMicroelectronics' official website or through authorized distributors.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:107A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:6mOhm @ 53A, 10V
Vgs(th) (Max) @ Id:4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:72.5 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:5600 pF @ 50 V
FET Feature:-
Power Dissipation (Max):136W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount, Wettable Flank
Supplier Device Package:PowerFlat™ (5x6)
Package / Case:8-PowerVDFN
0 Remaining View Similar

In Stock

$2.87
182

Please send RFQ , we will respond immediately.
