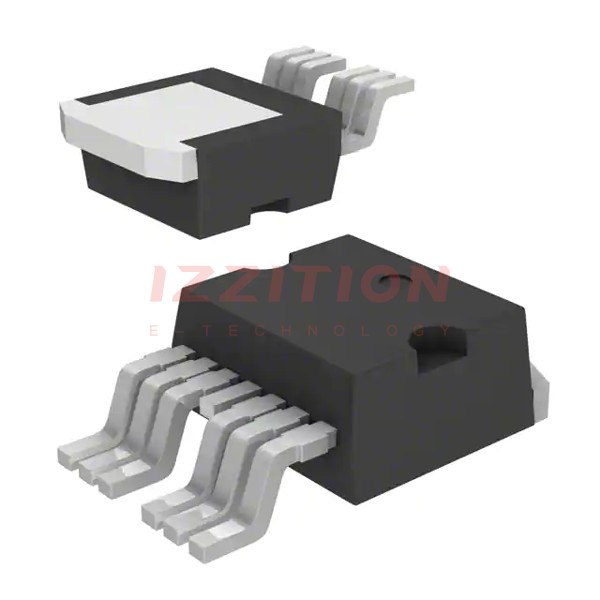

STMicroelectronics STH300NH02L-6

Manufacturer No:
STH300NH02L-6
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 24V 180A H2PAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STH300NH02L-6 is an automotive-grade N-channel power MOSFET produced by STMicroelectronics. It is part of the STripFET III series, known for its high performance and reliability. This device is designed for use in demanding automotive applications, adhering to the AEC-Q101 standard. The STH300NH02L-6 features a low on-resistance and high current handling capabilities, making it suitable for a variety of power management and switching applications.

Key Specifications

ParameterValue
VDS (Drain-Source Voltage)24 V
Rds(on) (On-Resistance)0.95 mΩ (typ.) @ Vgs = 10 V, Id = 80 A
Id (Drain Current)180 A (Tc)
Pd (Power Dissipation)300 W (Tc)
PackageH2PAK-6
QualificationAEC-Q101

Key Features

  • Low on-resistance (Rds(on)) of 0.95 mΩ (typ.) @ Vgs = 10 V, Id = 80 A, ensuring minimal power loss.
  • High current handling capability of up to 180 A (Tc).
  • Automotive-grade qualification (AEC-Q101) for reliability in harsh environments.
  • High power dissipation of 300 W (Tc) to handle demanding applications.
  • STripFET III technology for enhanced performance and efficiency.

Applications

The STH300NH02L-6 is designed for various automotive and industrial applications, including:

  • Power management systems.
  • Motor control and drive systems.
  • Switch-mode power supplies.
  • High-power switching applications.
  • Automotive systems such as electric vehicles, hybrid vehicles, and other high-current applications.

Q & A

  1. What is the typical on-resistance of the STH300NH02L-6?
    The typical on-resistance (Rds(on)) is 0.95 mΩ @ Vgs = 10 V, Id = 80 A.
  2. What is the maximum drain current of the STH300NH02L-6?
    The maximum drain current (Id) is 180 A (Tc).
  3. What is the power dissipation capability of the STH300NH02L-6?
    The power dissipation (Pd) is 300 W (Tc).
  4. What package type is the STH300NH02L-6 available in?
    The STH300NH02L-6 is available in an H2PAK-6 package.
  5. Is the STH300NH02L-6 qualified for automotive use?
    Yes, it is qualified to the AEC-Q101 standard for automotive applications.
  6. What technology is used in the STH300NH02L-6?
    The STH300NH02L-6 uses STMicroelectronics' STripFET III technology.
  7. What are some common applications for the STH300NH02L-6?
    Common applications include power management systems, motor control and drive systems, switch-mode power supplies, and high-power switching applications.
  8. Can the STH300NH02L-6 be used in industrial applications?
    Yes, it can be used in various industrial applications due to its high performance and reliability.
  9. What is the maximum drain-source voltage of the STH300NH02L-6?
    The maximum drain-source voltage (VDS) is 24 V.
  10. Where can I find detailed specifications for the STH300NH02L-6?
    Detailed specifications can be found on the official STMicroelectronics website, as well as on distributor websites like Digi-Key and Mouser.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):24 V
Current - Continuous Drain (Id) @ 25°C:180A (Tc)
Drive Voltage (Max Rds On, Min Rds On):5V, 10V
Rds On (Max) @ Id, Vgs:1.2mOhm @ 80A, 10V
Vgs(th) (Max) @ Id:1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:109 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:7050 pF @ 15 V
FET Feature:-
Power Dissipation (Max):300W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:H²PAK
Package / Case:TO-263-7, D²Pak (6 Leads + Tab)
