SCTH40N120G2V7AG
  • Share:

STMicroelectronics SCTH40N120G2V7AG

Manufacturer No:
SCTH40N120G2V7AG
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
SICFET N-CH 650V 33A H2PAK-7
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The SCTH40N120G2V7AG is an automotive-grade silicon carbide (SiC) Power MOSFET developed by STMicroelectronics. This device leverages ST's advanced 2nd generation SiC MOSFET technology, offering high performance and reliability. It is packaged in an H2PAK-7 format, making it suitable for a variety of high-power applications.

Key Specifications

ParameterValue
Drain-Source Voltage (Vds)1200 V
Typical Static Drain-Source On-Resistance (Rds(on))75 mΩ
Maximum Static Drain-Source On-Resistance (Rds(on))105 mΩ
Drain Current (Id)33 A
Power Dissipation (Pd)250 W (at Tc)

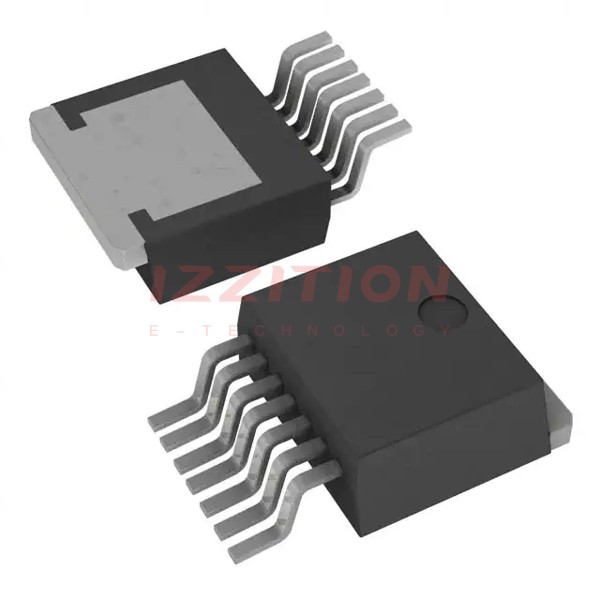

PackageH2PAK-7

Key Features

  • High voltage rating of 1200 V, making it suitable for high-power applications.
  • Low on-resistance (Rds(on)) of 75 mΩ (typ.) and 105 mΩ (max.), reducing energy losses.
  • High current capability of 33 A.
  • Automotive-grade reliability and durability.
  • Advanced 2nd generation SiC MOSFET technology for improved performance.

Applications

The SCTH40N120G2V7AG is designed for various high-power applications, including but not limited to:

  • Electric vehicles and hybrid electric vehicles.
  • Power supplies and DC-DC converters.
  • Industrial power systems and motor drives.
  • Renewable energy systems such as solar and wind power.

Q & A

  1. What is the drain-source voltage rating of the SCTH40N120G2V7AG? The drain-source voltage rating is 1200 V.
  2. What is the typical static drain-source on-resistance of the SCTH40N120G2V7AG? The typical static drain-source on-resistance is 75 mΩ.
  3. What is the maximum static drain-source on-resistance of the SCTH40N120G2V7AG? The maximum static drain-source on-resistance is 105 mΩ.
  4. What is the drain current rating of the SCTH40N120G2V7AG? The drain current rating is 33 A.
  5. What package type is the SCTH40N120G2V7AG available in? The SCTH40N120G2V7AG is available in an H2PAK-7 package.
  6. What are some typical applications for the SCTH40N120G2V7AG? Typical applications include electric vehicles, power supplies, industrial power systems, and renewable energy systems.
  7. What technology is used in the SCTH40N120G2V7AG? The SCTH40N120G2V7AG uses ST's advanced 2nd generation SiC MOSFET technology.
  8. Is the SCTH40N120G2V7AG automotive-grade? Yes, the SCTH40N120G2V7AG is automotive-grade.
  9. What is the power dissipation rating of the SCTH40N120G2V7AG? The power dissipation rating is 250 W (at Tc).
  10. Where can I find detailed specifications for the SCTH40N120G2V7AG? Detailed specifications can be found on STMicroelectronics' official website, as well as on distributor sites like Mouser and Digi-Key.

Product Attributes

FET Type:N-Channel
Technology:SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss):650 V
Current - Continuous Drain (Id) @ 25°C:33A (Tc)
Drive Voltage (Max Rds On, Min Rds On):18V
Rds On (Max) @ Id, Vgs:105mOhm @ 20A, 18V
Vgs(th) (Max) @ Id:5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:63 nC @ 18 V
Vgs (Max):+22V, -10V
Input Capacitance (Ciss) (Max) @ Vds:1230 pF @ 800 V
FET Feature:-
Power Dissipation (Max):250W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:H2PAK-7
Package / Case:TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
0 Remaining View Similar

In Stock

$21.80
30

Please send RFQ , we will respond immediately.
