Overview

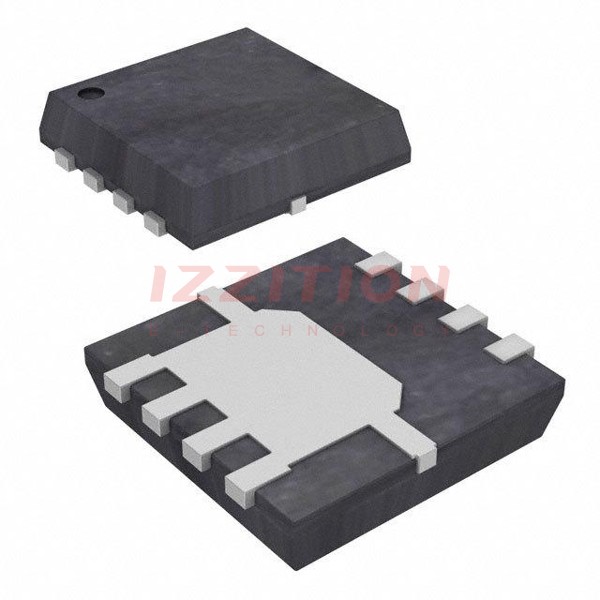

The NVTFS5C673NLWFTAG is a single N-Channel Power MOSFET manufactured by onsemi. This device is designed to handle high power applications with its robust specifications and features. It is particularly suited for use in surface mount configurations due to its 8-WDFN (3.3x3.3) package.
Key Specifications
| Parameter | Value |
|---|---|
| Drain-Source Voltage (Vdss) | 60V |
| Continuous Drain Current (Id) | 50A |
| Drain-Source On Resistance (Rds(on)) | Not specified in summary, refer to datasheet for detailed values |
| Package Type | 8-WDFN (3.3x3.3) |
| Maximum Power Dissipation (Ta) | 3.1W |
| Maximum Power Dissipation (Tc) | 46W |
Key Features
- High drain-source voltage rating of 60V
- High continuous drain current of 50A
- Compact 8-WDFN (3.3x3.3) surface mount package
- Low on-resistance for efficient power handling
- Rugged and reliable design for high power applications
Applications
The NVTFS5C673NLWFTAG is suitable for a variety of high power applications, including but not limited to:
- Power supplies and DC-DC converters
- Motor control and drive systems
- Automotive and industrial power systems
- High-frequency switching applications
Q & A
- What is the maximum drain-source voltage of the NVTFS5C673NLWFTAG?
The maximum drain-source voltage is 60V. - What is the continuous drain current rating of this MOSFET?
The continuous drain current rating is 50A. - What is the package type of the NVTFS5C673NLWFTAG?
The package type is 8-WDFN (3.3x3.3). - What is the maximum power dissipation at ambient temperature (Ta)?
The maximum power dissipation at ambient temperature is 3.1W. - What is the maximum power dissipation at case temperature (Tc)?
The maximum power dissipation at case temperature is 46W. - Where can I find detailed specifications for the NVTFS5C673NLWFTAG?
Detailed specifications can be found in the datasheet available on the onsemi website or through distributors like Digi-Key. - Is the NVTFS5C673NLWFTAG suitable for high-frequency switching applications?
Yes, it is suitable for high-frequency switching applications due to its low on-resistance and high current handling capabilities. - What are some common applications for the NVTFS5C673NLWFTAG?
Common applications include power supplies, motor control systems, automotive and industrial power systems, and high-frequency switching applications. - Is the NVTFS5C673NLWFTAG RoHS compliant?
Yes, the NVTFS5C673NLWFTAG is RoHS compliant. - Where can I purchase the NVTFS5C673NLWFTAG?
You can purchase the NVTFS5C673NLWFTAG from distributors such as Digi-Key, Mouser, and LCSC.
