NVH4L040N120SC1
  • Share:

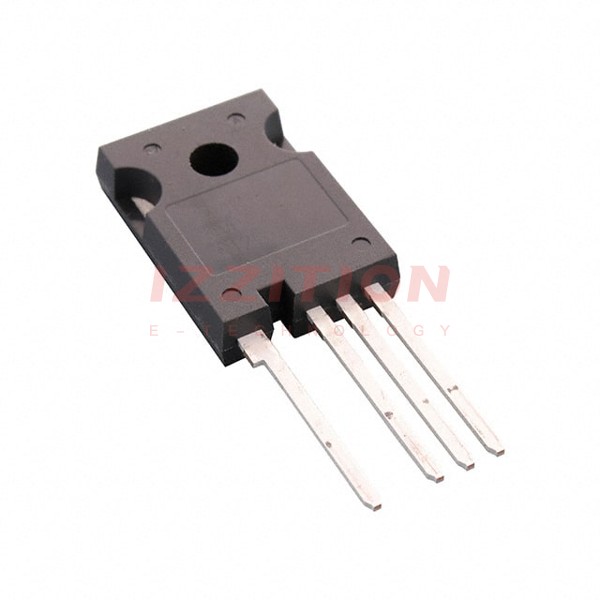

onsemi NVH4L040N120SC1

Manufacturer No:
NVH4L040N120SC1
Manufacturer:
onsemi
Package:
Tube
Description:
SICFET N-CH 1200V 58A TO247-4
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NVH4L040N120SC1 is a Silicon Carbide (SiC) N-Channel MOSFET produced by onsemi. This device is part of the EliteSiC family and is known for its high efficiency and reliability in high-power applications. The SiC technology offers superior performance compared to traditional silicon-based MOSFETs, with advantages such as lower switching losses, higher thermal stability, and improved overall system efficiency.

Key Specifications

ParameterValue
Voltage Rating (Vds)1200 V
On-Resistance (Rds(on))40 mΩ @ 20 V
Continuous Drain Current (Id)58 A
Pulse Drain Current (Idp)35 A
Power Dissipation (Pd)319 W
Threshold Voltage (Vth)4.3 V
Package TypeTO-247-4L

Key Features

  • High voltage rating of 1200 V, making it suitable for high-power applications.
  • Low on-resistance of 40 mΩ, reducing energy losses and improving efficiency.
  • High continuous drain current of 58 A and pulse drain current of 35 A.
  • High power dissipation capability of 319 W.
  • Threshold voltage of 4.3 V for reliable switching.
  • TO-247-4L package for robust and reliable mounting.

Applications

The NVH4L040N120SC1 SiC MOSFET is ideal for various high-power applications, including but not limited to:

  • Electric vehicles and hybrid electric vehicles.
  • Renewable energy systems such as solar and wind power inverters.
  • Industrial power supplies and motor drives.
  • High-frequency switching applications.
  • Power factor correction (PFC) circuits.

Q & A

  1. What is the voltage rating of the NVH4L040N120SC1 MOSFET?
    The voltage rating of the NVH4L040N120SC1 MOSFET is 1200 V.
  2. What is the on-resistance of the NVH4L040N120SC1 MOSFET?
    The on-resistance (Rds(on)) of the NVH4L040N120SC1 MOSFET is 40 mΩ @ 20 V.
  3. What is the continuous drain current of the NVH4L040N120SC1 MOSFET?
    The continuous drain current (Id) of the NVH4L040N120SC1 MOSFET is 58 A.
  4. What is the pulse drain current of the NVH4L040N120SC1 MOSFET?
    The pulse drain current (Idp) of the NVH4L040N120SC1 MOSFET is 35 A.
  5. What is the power dissipation capability of the NVH4L040N120SC1 MOSFET?
    The power dissipation capability (Pd) of the NVH4L040N120SC1 MOSFET is 319 W.
  6. What is the threshold voltage of the NVH4L040N120SC1 MOSFET?
    The threshold voltage (Vth) of the NVH4L040N120SC1 MOSFET is 4.3 V.
  7. What package type does the NVH4L040N120SC1 MOSFET use?
    The NVH4L040N120SC1 MOSFET uses the TO-247-4L package.
  8. What are the advantages of using SiC MOSFETs like the NVH4L040N120SC1?
    SIC MOSFETs offer lower switching losses, higher thermal stability, and improved overall system efficiency compared to traditional silicon-based MOSFETs.
  9. In which applications is the NVH4L040N120SC1 MOSFET commonly used?
    The NVH4L040N120SC1 MOSFET is commonly used in electric vehicles, renewable energy systems, industrial power supplies, motor drives, and high-frequency switching applications.
  10. Where can I find detailed specifications for the NVH4L040N120SC1 MOSFET?
    Detailed specifications for the NVH4L040N120SC1 MOSFET can be found in the datasheet available on onsemi's official website and other electronic component databases like LCSC and AllDatasheet.

Product Attributes

FET Type:N-Channel
Technology:SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss):1200 V
Current - Continuous Drain (Id) @ 25°C:58A (Tc)
Drive Voltage (Max Rds On, Min Rds On):20V
Rds On (Max) @ Id, Vgs:56mOhm @ 35A, 20V
Vgs(th) (Max) @ Id:4.3V @ 10mA
Gate Charge (Qg) (Max) @ Vgs:106 nC @ 20 V
Vgs (Max):+25V, -15V
Input Capacitance (Ciss) (Max) @ Vds:1762 pF @ 800 V
FET Feature:-
Power Dissipation (Max):319W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-247-4L
Package / Case:TO-247-4
0 Remaining View Similar

In Stock

$23.22
15

Please send RFQ , we will respond immediately.

Same Series
DD26M20JV5Z
DD26M20JV5Z
CONN D-SUB HD PLUG 26P SLDR CUP
CBC46W4S100T2X
CBC46W4S100T2X
CONN D-SUB RCPT 46POS CRIMP
CBC13W3S10HT20/AA
CBC13W3S10HT20/AA
CONN D-SUB RCPT 13POS CRIMP
CBC9W4S10HTS/AA
CBC9W4S10HTS/AA
CONN D-SUB RCPT 9POS CRIMP
CBC47W1S1S50T20
CBC47W1S1S50T20
CONN D-SUB RCPT 47POS CRIMP
DD26S20000/AA
DD26S20000/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S00X/AA
DD26S2S00X/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S200E3X
DD26S200E3X
CONN D-SUB HD RCPT 26P SLDR CUP
CBC46W4S10G00/AA
CBC46W4S10G00/AA
CONN D-SUB RCPT 46POS CRIMP
DD26S200V30/AA
DD26S200V30/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S50TX
DD26S2S50TX
CONN D-SUB HD RCPT 26P SLDR CUP
RD50S100V50
RD50S100V50
CONN D-SUB RCPT 50POS CRIMP

Similar Products

Part Number NVH4L040N120SC1 NVH4L080N120SC1 NVHL040N120SC1 NVH4L020N120SC1
Manufacturer onsemi onsemi onsemi onsemi
Product Status Active Active Active Active
FET Type N-Channel N-Channel N-Channel N-Channel
Technology SiCFET (Silicon Carbide) SiCFET (Silicon Carbide) SiCFET (Silicon Carbide) SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) 1200 V 1200 V 1200 V 1200 V
Current - Continuous Drain (Id) @ 25°C 58A (Tc) 29A (Tc) 60A (Tc) 102A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 20V 20V 20V 20V
Rds On (Max) @ Id, Vgs 56mOhm @ 35A, 20V 110mOhm @ 20A, 20V 56mOhm @ 35A, 20V 28mOhm @ 60A, 20V
Vgs(th) (Max) @ Id 4.3V @ 10mA 4.3V @ 5mA 4.3V @ 10mA 4.3V @ 20mA
Gate Charge (Qg) (Max) @ Vgs 106 nC @ 20 V 56 nC @ 20 V 106 nC @ 20 V 220 nC @ 20 V
Vgs (Max) +25V, -15V +25V, -15V +25V, -15V +25V, -15V
Input Capacitance (Ciss) (Max) @ Vds 1762 pF @ 800 V 1670 pF @ 800 V 1781 pF @ 800 V 2943 pF @ 800 V
FET Feature - - - -
Power Dissipation (Max) 319W (Tc) 170mW (Tc) 348W (Tc) 510W (Tc)
Operating Temperature -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ)
Mounting Type Through Hole Through Hole Through Hole Through Hole
Supplier Device Package TO-247-4L TO-247-4L TO-247-3 TO-247-4L
Package / Case TO-247-4 TO-247-4 TO-247-3 TO-247-4
