NVH4L020N120SC1
  • Share:

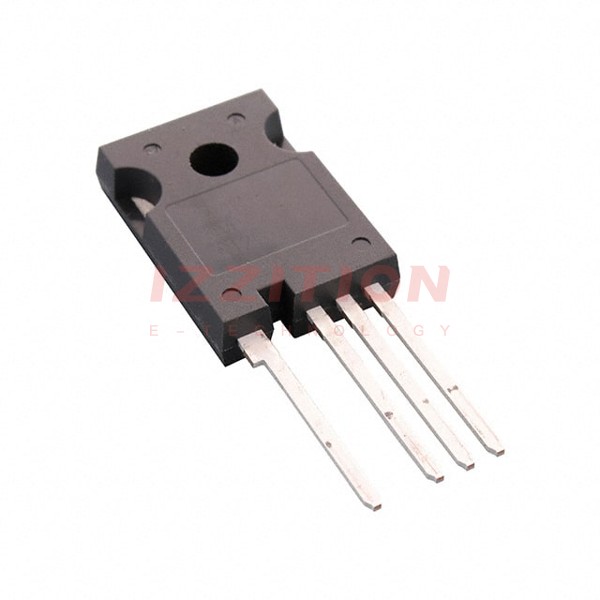

onsemi NVH4L020N120SC1

Manufacturer No:
NVH4L020N120SC1
Manufacturer:
onsemi
Package:
Tube
Description:
SICFET N-CH 1200V 102A TO247
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NVH4L020N120SC1 is a Silicon Carbide (SiC) N-Channel MOSFET produced by onsemi. This device is part of the EliteSiC family and is designed for high-performance applications requiring low on-resistance and high switching speeds. The NVH4L020N120SC1 features a typical on-resistance (RDS(on)) of 20 mΩ and a maximum drain-to-source voltage (VDSS) of 1200 V, making it suitable for demanding power conversion and automotive systems.

Key Specifications

Parameter Symbol Value Unit
Drain-to-Source Voltage VDSS 1200 V
Gate-to-Source Voltage VGS −15/+25 V
Continuous Drain Current (TC = 25°C) ID 101 A
Power Dissipation (TC = 25°C) PD 500 W
Pulsed Drain Current IDM 408 A
Operating Junction and Storage Temperature Range TJ, Tstg −55 to +175 °C
Source Current (Body Diode) IS 46 A
Gate Threshold Voltage VGS(TH) 1.8 to 4.3 V
Drain-to-Source On Resistance RDS(on) 20 to 28 mΩ mΩ
Total Gate Charge QG(TOT) 220 nC nC

Key Features

  • Low On-Resistance: Typical RDS(on) of 20 mΩ at VGS = 20 V, ID = 60 A, TJ = 25°C.
  • Ultra Low Gate Charge: Total gate charge (QG(TOT)) of 220 nC.
  • High Speed Switching: Low capacitance (Coss = 258 pF) for high-speed switching applications.
  • Avalanche Tested: 100% avalanche tested for reliability.
  • AEC-Q101 Qualified and PPAP Capable: Compliant with automotive standards for reliability and quality.
  • Halide Free and RoHS Compliant: Environmentally friendly and compliant with RoHS regulations.

Applications

  • Automotive On Board Charger: Suitable for high-power charging systems in electric and hybrid vehicles.
  • Automotive DC-DC Converter for EV/HEV: Used in power conversion systems for electric and hybrid vehicles.
  • Automotive Traction Inverter: Ideal for high-efficiency and high-reliability traction inverters in electric vehicles.

Q & A

  1. What is the maximum drain-to-source voltage of the NVH4L020N120SC1?

    The maximum drain-to-source voltage (VDSS) is 1200 V.

  2. What is the typical on-resistance of the NVH4L020N120SC1?

    The typical on-resistance (RDS(on)) is 20 mΩ at VGS = 20 V, ID = 60 A, TJ = 25°C.

  3. What is the total gate charge of the NVH4L020N120SC1?

    The total gate charge (QG(TOT)) is 220 nC.

  4. Is the NVH4L020N120SC1 AEC-Q101 qualified?

    Yes, the device is AEC-Q101 qualified and PPAP capable.

  5. What are the typical applications of the NVH4L020N120SC1?

    Typical applications include automotive on-board chargers, automotive DC-DC converters for EV/HEV, and automotive traction inverters.

  6. What is the maximum continuous drain current at TC = 25°C?

    The maximum continuous drain current (ID) at TC = 25°C is 101 A.

  7. What is the power dissipation at TC = 25°C?

    The power dissipation (PD) at TC = 25°C is 500 W.

  8. What is the operating junction and storage temperature range?

    The operating junction and storage temperature range (TJ, Tstg) is −55 to +175°C.

  9. Is the NVH4L020N120SC1 RoHS compliant?

    Yes, the device is halide free and RoHS compliant with exemption 7a, Pb-free 2LI (on second level interconnection).

  10. What is the maximum lead temperature for soldering?

    The maximum lead temperature for soldering (TL) is 300°C.

Product Attributes

FET Type:N-Channel
Technology:SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss):1200 V
Current - Continuous Drain (Id) @ 25°C:102A (Tc)
Drive Voltage (Max Rds On, Min Rds On):20V
Rds On (Max) @ Id, Vgs:28mOhm @ 60A, 20V
Vgs(th) (Max) @ Id:4.3V @ 20mA
Gate Charge (Qg) (Max) @ Vgs:220 nC @ 20 V
Vgs (Max):+25V, -15V
Input Capacitance (Ciss) (Max) @ Vds:2943 pF @ 800 V
FET Feature:-
Power Dissipation (Max):510W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-247-4L
Package / Case:TO-247-4
