NTD3055-150
  • Share:

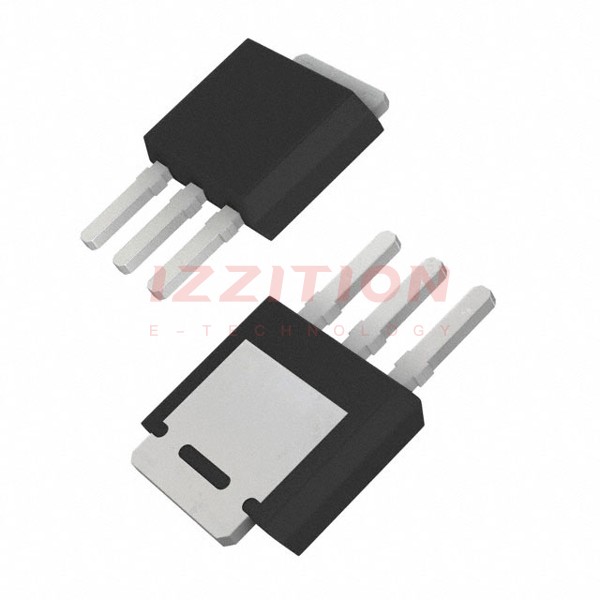

onsemi NTD3055-150

Manufacturer No:
NTD3055-150
Manufacturer:
onsemi
Package:
Tube
Description:
MOSFET N-CHAN 9A 60V DPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NTD3055-150 is a high-performance N-Channel power MOSFET produced by onsemi. This device is designed for low voltage, high-speed switching applications and is available in both DPAK (TO-252) and IPAK (TO-251) packages. It is particularly suited for use in power supplies, converters, power motor controls, and bridge circuits. The MOSFET is known for its robust specifications, including a maximum continuous drain current of 9 A and a maximum drain-source voltage of 60 V. It is also Pb-free and RoHS compliant, making it an environmentally friendly choice.

Key Specifications

Parameter Value Unit
Channel Type N -
Maximum Continuous Drain Current 9 A A
Maximum Drain Source Voltage 60 V V
Package Type DPAK (TO-252), IPAK (TO-251) -
Mounting Type Surface Mount, Through Hole -
Pin Count 3 -
Maximum Drain Source Resistance 150 mΩ
Channel Mode Enhancement -
Maximum Gate Threshold Voltage 4 V V
Maximum Power Dissipation 28.8 W W
Maximum Gate Source Voltage -20 V, +20 V V
Maximum Operating Temperature +175 °C °C
Minimum Operating Temperature -55 °C °C
Typical Gate Charge @ Vgs 7.1 nC @ 10 V nC

Key Features

  • High Current Capability: Maximum continuous drain current of 9 A.
  • Low On-Resistance: Maximum drain-source resistance of 150 mΩ.
  • High Voltage Rating: Maximum drain-source voltage of 60 V.
  • Enhancement Mode: N-Channel enhancement mode MOSFET.
  • Environmental Compliance: Pb-free and RoHS compliant.
  • AEC-Q101 Qualified: Suitable for automotive and other applications requiring unique site and control change requirements.
  • High Speed Switching: Designed for low voltage, high-speed switching applications.

Applications

  • Power Supplies: Used in various power supply configurations due to its high current and voltage ratings.
  • Converters: Suitable for DC-DC converters and other power conversion applications.
  • Power Motor Controls: Used in motor control circuits for efficient and reliable operation.
  • Bridge Circuits: Often used in bridge configurations for high-power applications.

Q & A

  1. What is the maximum continuous drain current of the NTD3055-150 MOSFET?

    The maximum continuous drain current is 9 A.

  2. What is the maximum drain-source voltage rating of this MOSFET?

    The maximum drain-source voltage is 60 V.

  3. What are the available package types for the NTD3055-150?

    The MOSFET is available in DPAK (TO-252) and IPAK (TO-251) packages.

  4. Is the NTD3055-150 Pb-free and RoHS compliant?

    Yes, it is Pb-free and RoHS compliant.

  5. What is the maximum operating temperature of the NTD3055-150?

    The maximum operating temperature is +175 °C.

  6. What is the typical gate charge at Vgs = 10 V for this MOSFET?

    The typical gate charge is 7.1 nC at Vgs = 10 V.

  7. Is the NTD3055-150 suitable for automotive applications?

    Yes, it is AEC-Q101 qualified and PPAP capable, making it suitable for automotive and other demanding applications.

  8. What are some common applications of the NTD3055-150 MOSFET?

    Common applications include power supplies, converters, power motor controls, and bridge circuits.

  9. What is the maximum power dissipation of the NTD3055-150?

    The maximum power dissipation is 28.8 W.

  10. What is the maximum gate-source voltage rating for this MOSFET?

    The maximum gate-source voltage is -20 V to +20 V.

Product Attributes

FET Type:-
Technology:-
Drain to Source Voltage (Vdss):-
Current - Continuous Drain (Id) @ 25°C:-
Drive Voltage (Max Rds On, Min Rds On):-
Rds On (Max) @ Id, Vgs:-
Vgs(th) (Max) @ Id:-
Gate Charge (Qg) (Max) @ Vgs:-
Vgs (Max):-
Input Capacitance (Ciss) (Max) @ Vds:-
FET Feature:-
Power Dissipation (Max):-
Operating Temperature:-
Mounting Type:-
Supplier Device Package:-
Package / Case:-
0 Remaining View Similar
