Overview

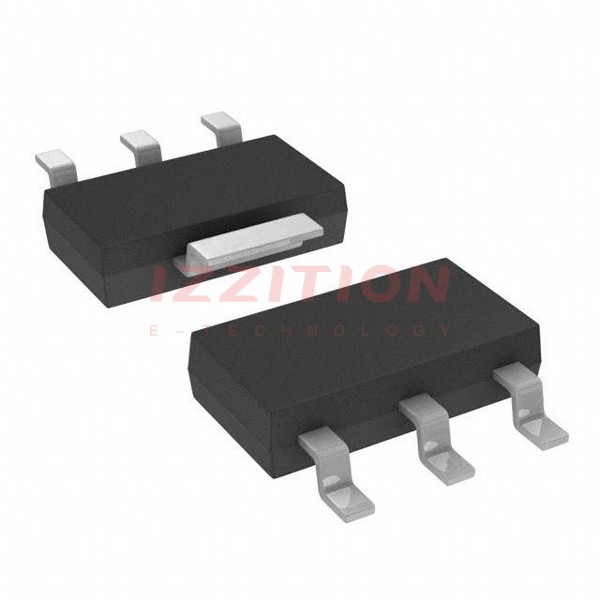

The FQT13N06LTF is an N-Channel enhancement mode power MOSFET produced by onsemi, utilizing their proprietary planar stripe and DMOS technology. This advanced technology is designed to reduce on-state resistance and provide superior switching performance along with high avalanche energy strength. The device is suitable for various applications including switched mode power supplies, audio amplifiers, DC motor control, and variable switching power applications.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Drain to Source Voltage (VDSS) | 60 | V |
| Continuous Drain Current (ID) at TC = 25°C | 2.8 | A |
| Continuous Drain Current (ID) at TC = 70°C | 2.24 | A |
| Pulsed Drain Current (IDM) | 11.2 | A |
| Gate to Source Voltage (VGSS) | ±25 | V |
| Single Pulsed Avalanche Energy (EAS) | 85 | mJ |
| Gate Threshold Voltage (VGS(th)) | 2.0 - 4.0 | V |
| Static Drain to Source On-Resistance (RDS(on)) at VGS = 10 V, ID = 1.4 A | 0.11 - 0.14 | mΩ |
| Total Gate Charge (Qg) | 5.8 - 7.5 | nC |
| Thermal Resistance, Junction-to-Ambient (RθJA) | 60 | °C/W |
| Operating and Storage Temperature Range (TJ, TSTG) | -55 to +150 | °C |
Key Features
- Low on-state resistance (RDS(on) = 140 mΩ max @ VGS = 10 V, ID = 1.4 A)
- Low gate charge (Typ. 5.8 nC)
- Low Crss (Typ. 15 pF)
- 100% avalanche tested
- Pb-free device
- Superior switching performance and high avalanche energy strength
Applications
- Switched mode power supplies
- Audio amplifiers
- DC motor control
- Variable switching power applications
Q & A
- What is the maximum drain to source voltage (VDSS) of the FQT13N06LTF?
The maximum drain to source voltage (VDSS) is 60 V.
- What is the continuous drain current (ID) at 25°C and 70°C?
The continuous drain current (ID) is 2.8 A at 25°C and 2.24 A at 70°C.
- What is the pulsed drain current (IDM) rating?
The pulsed drain current (IDM) is 11.2 A.
- What is the gate threshold voltage (VGS(th)) range?
The gate threshold voltage (VGS(th)) range is 2.0 to 4.0 V.
- What is the typical total gate charge (Qg)?
The typical total gate charge (Qg) is 5.8 nC.
- What is the thermal resistance, junction-to-ambient (RθJA)?
The thermal resistance, junction-to-ambient (RθJA), is 60 °C/W.
- What is the operating and storage temperature range?
The operating and storage temperature range is -55 to +150 °C.
- Is the FQT13N06LTF a Pb-free device?
- What are some typical applications of the FQT13N06LTF?
Typical applications include switched mode power supplies, audio amplifiers, DC motor control, and variable switching power applications.
- What is the maximum lead temperature for soldering purposes?
The maximum lead temperature for soldering purposes is 300 °C for 5 seconds.
