FQPF4N90CT
  • Share:

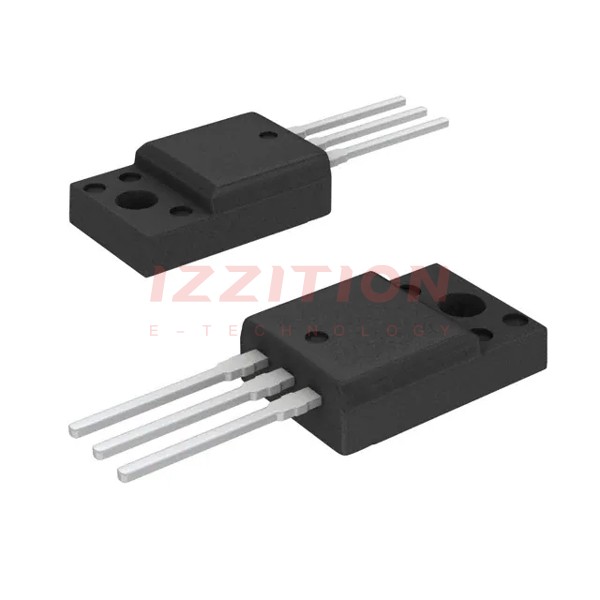

onsemi FQPF4N90CT

Manufacturer No:
FQPF4N90CT
Manufacturer:
onsemi
Package:
Bulk
Description:
MOSFET N-CH 900V 4A TO220F
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FQPF4N90CT is an N-Channel enhancement mode power MOSFET produced by onsemi, utilizing their proprietary planar stripe and DMOS technology. This advanced technology is designed to reduce on-state resistance, enhance switching performance, and provide high avalanche energy strength. The device is particularly suited for applications in switched mode power supplies, active power factor correction (PFC), and electronic lamp ballasts.

Key Specifications

Parameter Value Unit
Drain-Source Voltage (VDSS) 900 V
Drain Current (ID) - Continuous (TC = 25°C) 4 A
Drain Current (ID) - Continuous (TC = 100°C) 2.3 A
On-State Resistance (RDS(on)) 4.2 Ω (Max.) @ VGS = 10 V, ID = 2 A Ω
Gate Charge (Qg) 17 nC (Typ.) nC
Gate-Source Charge (Qgs) 4.5 nC (Typ.) nC
Gate-Drain Charge (Qgd) 7.5 nC (Typ.) nC
Thermal Resistance, Junction-to-Case (RθJC) 0.89 °C/W (Max.) °C/W
Thermal Resistance, Junction-to-Ambient (RθJA) 62.5 °C/W (Max.) °C/W

Key Features

  • High voltage rating of 900 V and high current capability of 4 A.
  • Low on-state resistance (RDS(on)) of 4.2 Ω (Max.) @ VGS = 10 V, ID = 2 A.
  • Low gate charge (Typ. 17 nC) and low Crss (Typ. 5.6 pF).
  • 100% avalanche tested for robustness.
  • Superior switching performance and high avalanche energy strength.

Applications

  • Switched mode power supplies.
  • Active power factor correction (PFC).
  • Electronic lamp ballasts.
  • LCD and LED TVs.
  • Desktop PCs and AC-DC merchant power supplies.

Q & A

  1. What is the maximum drain-source voltage (VDSS) of the FQPF4N90CT?

    The maximum drain-source voltage (VDSS) is 900 V.

  2. What is the continuous drain current (ID) at 25°C and 100°C?

    The continuous drain current (ID) is 4 A at 25°C and 2.3 A at 100°C.

  3. What is the on-state resistance (RDS(on)) of the FQPF4N90CT?

    The on-state resistance (RDS(on)) is 4.2 Ω (Max.) @ VGS = 10 V, ID = 2 A.

  4. What are the typical values for gate charge (Qg), gate-source charge (Qgs), and gate-drain charge (Qgd)?

    The typical values are 17 nC for Qg, 4.5 nC for Qgs, and 7.5 nC for Qgd.

  5. What is the thermal resistance from junction to case (RθJC) and junction to ambient (RθJA)?

    The thermal resistance from junction to case (RθJC) is 0.89 °C/W (Max.), and from junction to ambient (RθJA) is 62.5 °C/W (Max.).

  6. What are the primary applications of the FQPF4N90CT?

    The primary applications include switched mode power supplies, active power factor correction (PFC), and electronic lamp ballasts.

  7. Is the FQPF4N90CT 100% avalanche tested?

    Yes, the FQPF4N90CT is 100% avalanche tested.

  8. What is the package type of the FQPF4N90CT?

    The package type is TO-220F.

  9. What are some of the consumer electronics that use the FQPF4N90CT?

    It is used in LCD and LED TVs, desktop PCs, and AC-DC merchant power supplies.

  10. What technology is used to produce the FQPF4N90CT?

    The FQPF4N90CT is produced using onsemi’s proprietary planar stripe and DMOS technology.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):900 V
Current - Continuous Drain (Id) @ 25°C:4A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:4.2Ohm @ 2A, 10V
Vgs(th) (Max) @ Id:5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:22 nC @ 10 V
Vgs (Max):±30V
Input Capacitance (Ciss) (Max) @ Vds:960 pF @ 25 V
FET Feature:-
Power Dissipation (Max):47W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-220F-3
Package / Case:TO-220-3 Full Pack
0 Remaining View Similar

In Stock

-
210

Please send RFQ , we will respond immediately.

Same Series
FQPF4N90C
FQPF4N90C
MOSFET N-CH 900V 4A TO220F
FQP4N90C
FQP4N90C
MOSFET N-CH 900V 4A TO220-3

Similar Products

Part Number FQPF4N90CT FQPF9N90CT FQPF6N90CT FQPF4N90C
Manufacturer onsemi onsemi onsemi onsemi
Product Status Obsolete Active Obsolete Obsolete
FET Type N-Channel N-Channel N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 900 V 900 V 900 V 900 V
Current - Continuous Drain (Id) @ 25°C 4A (Tc) 8A (Tc) 6A (Tc) 4A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V 10V 10V 10V
Rds On (Max) @ Id, Vgs 4.2Ohm @ 2A, 10V 1.4Ohm @ 4A, 10V 2.3Ohm @ 3A, 10V 4.2Ohm @ 2A, 10V
Vgs(th) (Max) @ Id 5V @ 250µA 5V @ 250µA 5V @ 250µA 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 22 nC @ 10 V 58 nC @ 10 V 40 nC @ 10 V 22 nC @ 10 V
Vgs (Max) ±30V ±30V ±30V ±30V
Input Capacitance (Ciss) (Max) @ Vds 960 pF @ 25 V 2730 pF @ 25 V 1770 pF @ 25 V 960 pF @ 25 V
FET Feature - - - -
Power Dissipation (Max) 47W (Tc) 68W (Tc) 56W (Tc) 47W (Tc)
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Through Hole Through Hole Through Hole Through Hole
Supplier Device Package TO-220F-3 TO-220F-3 TO-220F-3 TO-220F-3
Package / Case TO-220-3 Full Pack TO-220-3 Full Pack TO-220-3 Full Pack TO-220-3 Full Pack
