Overview
The FDMC6686P is a P-Channel MOSFET produced by onsemi, utilizing the advanced PowerTrench® process. This technology optimizes the device for low on-resistance (rDS(ON)), enhanced switching performance, and increased ruggedness. The MOSFET is designed for high-performance applications requiring efficient power management and reliability.
Key Specifications
| Parameter | Value |
|---|---|
| Drain-Source Voltage (Vds) | -20V |
| Drain Current (Id) | -56A |
| Pulsed Drain Current | -377A |
| On-Resistance (rDS(ON)) | 4mΩ @ 4.5V |
| Gate-Source Voltage (Vgs) | ±8V |

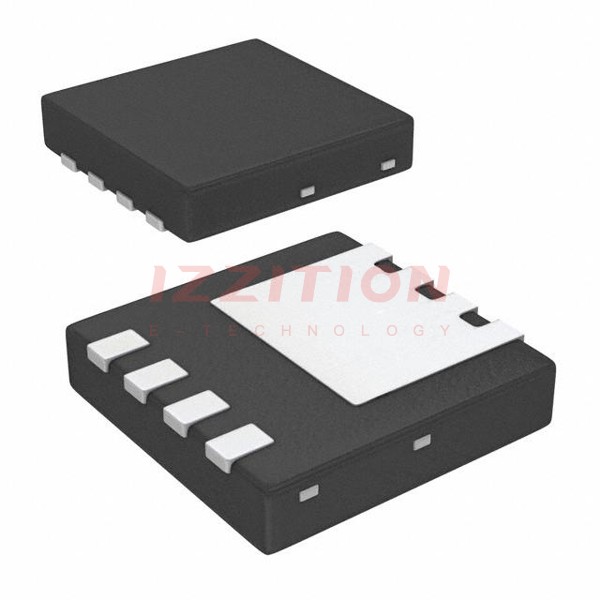

| Package Type | PQFN-8 (3.3x3.3mm) |
| Power Dissipation | 40W |
Key Features
- Advanced PowerTrench® process for low rDS(ON) and enhanced switching performance
- High current capability with a maximum drain current of -56A
- Low on-resistance of 4mΩ @ 4.5V
- Rugged design for reliability in demanding applications
- Surface mount package (PQFN-8) for compact and efficient board design
Applications
The FDMC6686P P-Channel MOSFET is suitable for a variety of high-performance applications, including but not limited to:
- Power management in consumer electronics
- Automotive systems requiring high current and low on-resistance
- Industrial power supplies and motor control systems
- High-efficiency DC-DC converters
Q & A
- What is the maximum drain-source voltage of the FDMC6686P?
The maximum drain-source voltage (Vds) is -20V. - What is the maximum drain current of the FDMC6686P?
The maximum drain current (Id) is -56A. - What is the on-resistance (rDS(ON)) of the FDMC6686P?
The on-resistance (rDS(ON)) is 4mΩ @ 4.5V. - What is the package type of the FDMC6686P?
The package type is PQFN-8 (3.3x3.3mm). - What is the maximum power dissipation of the FDMC6686P?
The maximum power dissipation is 40W. - What technology is used in the FDMC6686P?
The FDMC6686P uses the advanced PowerTrench® process. - What is the gate-source voltage range of the FDMC6686P?
The gate-source voltage (Vgs) range is ±8V. - Is the FDMC6686P suitable for automotive applications?
Yes, it is suitable for automotive systems requiring high current and low on-resistance. - Can the FDMC6686P be used in high-efficiency DC-DC converters?
Yes, it is suitable for high-efficiency DC-DC converters due to its low on-resistance and high current capability. - Is the FDMC6686P a surface mount device?
Yes, the FDMC6686P is a surface mount device.
