FDMA86551L
  • Share:

onsemi FDMA86551L

Manufacturer No:
FDMA86551L
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 60V 7.5A 6MICROFET
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FDMA86551L is a low to medium voltage N-Channel MOSFET produced by onsemi. This device is designed to provide maximum efficiency and thermal performance, particularly in synchronous buck converters. It is part of onsemi's MicroFET family, known for its compact size and high performance.

Key Specifications

ParameterValue
Voltage Rating (Vds)60 V
Continuous Drain Current (Id)7.5 A
Power Dissipation (Pd)2.4 W
On-State Resistance (Rds(on))23 mΩ @ 7.5 A, 10 V
Threshold Voltage (Vth)3 V @ 250 μA

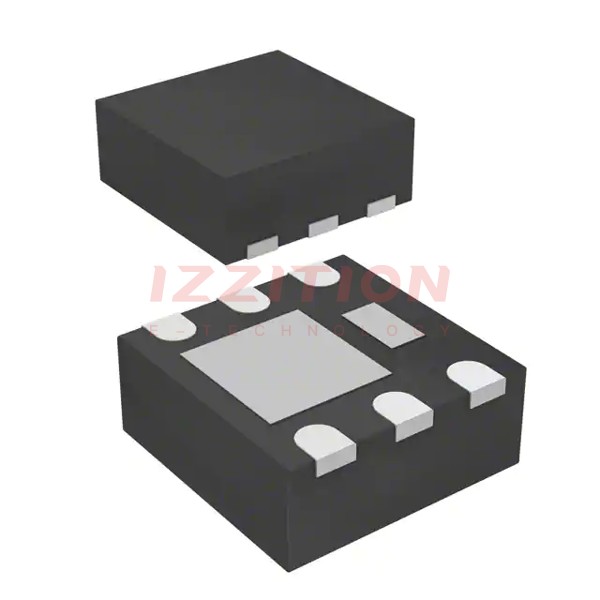

Package TypeVDFN-6 (2x2)

Key Features

  • Compact VDFN-6 (2x2) package for space-saving designs
  • Low on-state resistance (Rds(on)) of 23 mΩ for high efficiency
  • High continuous drain current of 7.5 A
  • Voltage rating of 60 V for robust operation
  • Low threshold voltage of 3 V @ 250 μA for easy switching
  • RoHS compliant for environmental sustainability

Applications

The FDMA86551L is ideal for use in synchronous buck converters, DC-DC converters, and other power management applications where high efficiency and thermal performance are critical. It is also suitable for use in automotive, industrial, and consumer electronics where reliability and compact design are essential.

Q & A

  1. What is the voltage rating of the FDMA86551L MOSFET? The voltage rating of the FDMA86551L is 60 V.
  2. What is the continuous drain current of the FDMA86551L? The continuous drain current is 7.5 A.
  3. What is the on-state resistance of the FDMA86551L? The on-state resistance is 23 mΩ @ 7.5 A, 10 V.
  4. What package type does the FDMA86551L use? The FDMA86551L uses a VDFN-6 (2x2) package.
  5. Is the FDMA86551L RoHS compliant? Yes, the FDMA86551L is RoHS compliant.
  6. What are the typical applications of the FDMA86551L? Typical applications include synchronous buck converters, DC-DC converters, and other power management applications.
  7. What is the threshold voltage of the FDMA86551L? The threshold voltage is 3 V @ 250 μA.
  8. How much power can the FDMA86551L dissipate? The FDMA86551L can dissipate up to 2.4 W.
  9. Why is the FDMA86551L preferred in power management applications? It is preferred due to its high efficiency, low on-state resistance, and compact design.
  10. Where can I find detailed specifications for the FDMA86551L? Detailed specifications can be found in the datasheet available on onsemi's official website and other authorized distributors like Digi-Key and TME.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:7.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:23mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id:3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:17 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1235 pF @ 30 V
FET Feature:-
Power Dissipation (Max):2.4W (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:6-MicroFET (2x2)
Package / Case:6-WDFN Exposed Pad
0 Remaining View Similar

In Stock

$1.22
87

Please send RFQ , we will respond immediately.

Similar Products

Part Number FDMA86551L FDMA86151L
Manufacturer onsemi onsemi
Product Status Active Active
FET Type N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60 V 100 V
Current - Continuous Drain (Id) @ 25°C 7.5A (Ta) 3.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V 4.5V, 10V
Rds On (Max) @ Id, Vgs 23mOhm @ 7.5A, 10V 88mOhm @ 3.3A, 10V
Vgs(th) (Max) @ Id 3V @ 250µA 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 17 nC @ 10 V 7.3 nC @ 10 V
Vgs (Max) ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 1235 pF @ 30 V 450 pF @ 50 V
FET Feature - -
Power Dissipation (Max) 2.4W (Ta) 2.4W (Ta)
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount
Supplier Device Package 6-MicroFET (2x2) 6-MicroFET (2x2)
Package / Case 6-WDFN Exposed Pad 6-WDFN Exposed Pad
