FDMA86151L
  • Share:

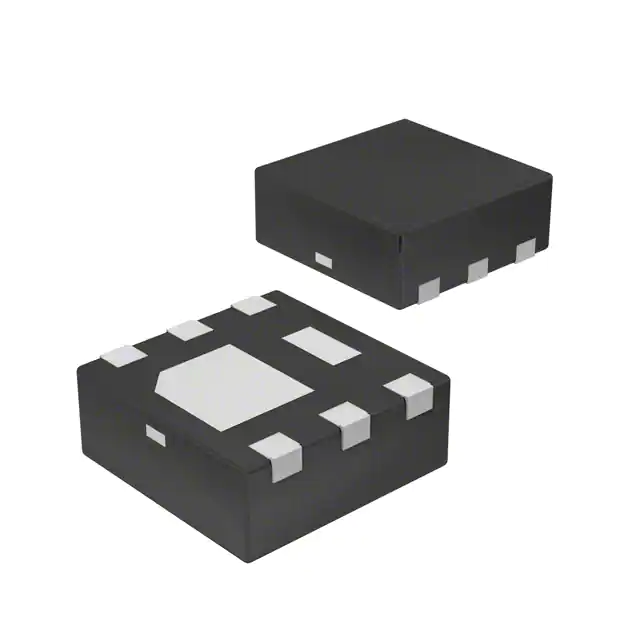

onsemi FDMA86151L

Manufacturer No:
FDMA86151L
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 100V 3.3A 6MICROFET
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FDMA86151L is a low/medium voltage N-Channel MOSFET produced by onsemi. This device is designed to provide maximum efficiency and thermal performance, particularly in synchronous buck converters. It features a low on-resistance (rDS(on)) and gate charge, making it suitable for high-performance power management applications.

Key Specifications

ParameterValue
Voltage Rating (Vds)100 V
Continuous Drain Current (Id)3.3 A (at Ta)
Maximum Drain Current (Idm)20 A
On-Resistance (rDS(on))0.06 ohm
Power Dissipation (Pd)2.4 W (at Ta)
Package TypeWDFN (6-MicroFET, 2x2 mm)
PackagingTape & Reel (TR)

Key Features

  • Low on-resistance (rDS(on)) of 0.06 ohm for reduced power losses.
  • Low gate charge for efficient switching.
  • Compact WDFN package (2x2 mm) for space-saving designs.
  • High thermal performance.
  • Part of the PowerTrench® series, known for its advanced trench technology.

Applications

The FDMA86151L is primarily used in synchronous buck converters and other high-efficiency power management applications. It is suitable for use in DC-DC converters, power supplies, and other systems requiring low on-resistance and high thermal performance.

Q & A

  1. What is the voltage rating of the FDMA86151L MOSFET?
    The voltage rating of the FDMA86151L MOSFET is 100 V.
  2. What is the continuous drain current of the FDMA86151L?
    The continuous drain current of the FDMA86151L is 3.3 A at ambient temperature (Ta).
  3. What is the maximum drain current of the FDMA86151L?
    The maximum drain current (Idm) of the FDMA86151L is 20 A.
  4. What is the on-resistance (rDS(on)) of the FDMA86151L?
    The on-resistance (rDS(on)) of the FDMA86151L is 0.06 ohm.
  5. What package type does the FDMA86151L come in?
    The FDMA86151L comes in a WDFN (6-MicroFET, 2x2 mm) package.
  6. What is the power dissipation of the FDMA86151L?
    The power dissipation (Pd) of the FDMA86151L is 2.4 W at ambient temperature (Ta).
  7. What series does the FDMA86151L belong to?
    The FDMA86151L belongs to the PowerTrench® series.
  8. What are the typical applications of the FDMA86151L?
    The FDMA86151L is typically used in synchronous buck converters, DC-DC converters, and other high-efficiency power management applications.
  9. What is the packaging method for the FDMA86151L?
    The FDMA86151L is packaged in Tape & Reel (TR).
  10. Why is the FDMA86151L preferred for high-performance applications?
    The FDMA86151L is preferred for its low on-resistance, low gate charge, and high thermal performance, making it efficient for high-performance power management.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:3.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:88mOhm @ 3.3A, 10V
Vgs(th) (Max) @ Id:3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:7.3 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:450 pF @ 50 V
FET Feature:-
Power Dissipation (Max):2.4W (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:6-MicroFET (2x2)
Package / Case:6-WDFN Exposed Pad
0 Remaining View Similar

In Stock

$1.25
730

Please send RFQ , we will respond immediately.

Similar Products

Part Number FDMA86151L FDMA86551L
Manufacturer onsemi onsemi
Product Status Active Active
FET Type N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 100 V 60 V
Current - Continuous Drain (Id) @ 25°C 3.3A (Ta) 7.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V 4.5V, 10V
Rds On (Max) @ Id, Vgs 88mOhm @ 3.3A, 10V 23mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id 3V @ 250µA 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 7.3 nC @ 10 V 17 nC @ 10 V
Vgs (Max) ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 450 pF @ 50 V 1235 pF @ 30 V
FET Feature - -
Power Dissipation (Max) 2.4W (Ta) 2.4W (Ta)
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount
Supplier Device Package 6-MicroFET (2x2) 6-MicroFET (2x2)
Package / Case 6-WDFN Exposed Pad 6-WDFN Exposed Pad
