Overview

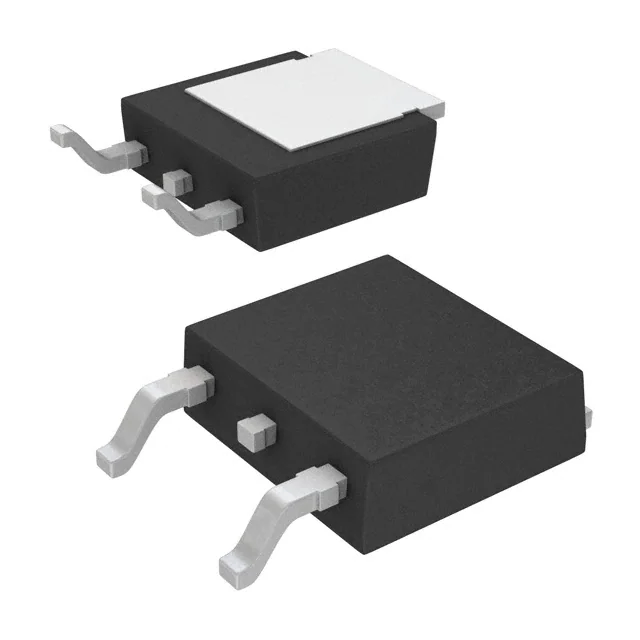

The IRFR024NTRPBF is a high-performance N-Channel MOSFET manufactured by Infineon Technologies. Designed for enhancement mode operation, this semiconductor device efficiently controls the flow of electricity between the drain and source terminals. It is widely used in various electronic circuits due to its robust specifications and reliability.
Key Specifications
| Parameter | Value |
|---|---|
| Drain-Source Breakdown Voltage (Vds) | 55V |
| Continuous Drain Current (Id) | 17A |
| Drain-Source Resistance (Rds On) | 75 mOhms |
| Gate-Source Voltage (Vgs) | -20V to +20V |
| Gate-Source Threshold Voltage (Vgs th) | 1.8V |
| Gate Charge (Qg) | 20nC |
| Package Style | TO-252-3 (Surface Mount) |
| Operating Temperature Range | -55°C to +175°C |
| Power Dissipation | 45W |
Key Features
- Advanced process technology for high efficiency.
- Fully avalanche rated for robust operation.
- Low static drain-to-source ON-resistance (Rds On) of 75 mOhms.
- Dynamic dV/dt rating for reliable switching performance.
- Compact surface-mount package (TO-252-3) suitable for modern circuit board assembly techniques like reflow soldering.
- Wide operating temperature range of -55°C to +175°C, making it suitable for various industrial and commercial environments.
Applications
The IRFR024NTRPBF is primarily used in power management applications due to its high current handling capability and low on-resistance. It is suitable for a variety of applications including but not limited to:
- Power supplies and DC-DC converters.
- Motor control and drive systems.
- Switching regulators and power amplifiers.
- Industrial and commercial power management systems.
Q & A
- What is the Drain-Source Breakdown Voltage (Vds) of the IRFR024NTRPBF?
The Drain-Source Breakdown Voltage (Vds) is 55V. - What is the Continuous Drain Current (Id) rating of the IRFR024NTRPBF?
The Continuous Drain Current (Id) rating is 17A. - What is the Drain-Source Resistance (Rds On) of the IRFR024NTRPBF?
The Drain-Source Resistance (Rds On) is 75 mOhms. - What is the Gate-Source Voltage (Vgs) range for the IRFR024NTRPBF?
The Gate-Source Voltage (Vgs) range is from -20V to +20V. - What is the Gate-Source Threshold Voltage (Vgs th) of the IRFR024NTRPBF?
The Gate-Source Threshold Voltage (Vgs th) is 1.8V. - What is the Gate Charge (Qg) of the IRFR024NTRPBF?
The Gate Charge (Qg) is 20nC. - In what package style is the IRFR024NTRPBF available?
The IRFR024NTRPBF is available in a TO-252-3 surface-mount package. - What is the operating temperature range of the IRFR024NTRPBF?
The operating temperature range is from -55°C to +175°C. - What are some common applications of the IRFR024NTRPBF?
Common applications include power supplies, DC-DC converters, motor control systems, and industrial power management. - Why is the IRFR024NTRPBF suitable for modern circuit board assembly?
The IRFR024NTRPBF is suitable due to its compact surface-mount package and compatibility with reflow soldering techniques.
