BSC028N06NSATMA1
  • Share:

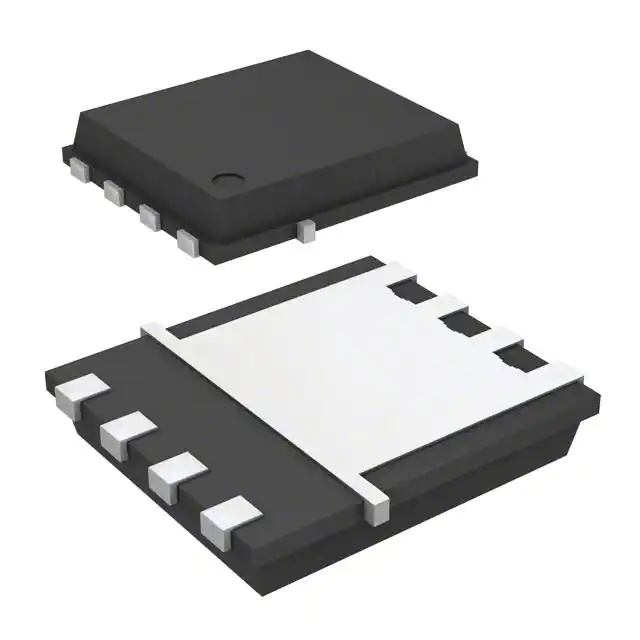

Infineon Technologies BSC028N06NSATMA1

Manufacturer No:
BSC028N06NSATMA1
Manufacturer:
Infineon Technologies
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 60V 23A/100A TDSON
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BSC028N06NSATMA1, produced by Infineon Technologies, is a high-performance OptiMOS™ 5 N-channel power MOSFET. This device is specifically optimized for synchronous rectification in switched mode power supplies (SMPS), making it an ideal choice for various industrial and consumer applications. It is designed to operate at high temperatures up to 175°C and features a low on-resistance (RDS(on)) of 2.8 mΩ, which enhances system efficiency and reduces the need for paralleling multiple devices.

Key Specifications

Parameter Value Unit
VDS (Drain-Source Voltage) 60 V
RDS(on) (On-Resistance) 2.8 mΩ
ID (Continuous Drain Current) 137 A
ID,pulsed (Pulsed Drain Current) 548 A
Qg (Gate Charge) 43 nC
Tj,max (Maximum Junction Temperature) 175 °C
Package PG-TDSON-8

Key Features

  • Optimized for synchronous rectification in SMPS applications.
  • 40% lower RDS(on) compared to alternative devices.
  • 40% improvement in Figure of Merit (FOM) over similar devices.
  • RoHS compliant and halogen-free according to IEC61249-2-21.
  • 100% avalanche tested and rated for high performance.
  • Superior thermal resistance and MSL1 rated.

Applications

  • Synchronous rectification in switched mode power supplies (SMPS).
  • Solar micro inverters.
  • Isolated DC-DC converters.
  • Motor control for 12-48V systems.
  • Or-ing switches.

Q & A

  1. What is the maximum drain-source voltage of the BSC028N06NSATMA1?

    The maximum drain-source voltage is 60 V.

  2. What is the on-resistance (RDS(on)) of this MOSFET?

    The on-resistance is 2.8 mΩ.

  3. What is the continuous drain current rating of the BSC028N06NSATMA1?

    The continuous drain current is 137 A at 25°C.

  4. Is the BSC028N06NSATMA1 RoHS compliant?
  5. What are the typical applications of the BSC028N06NSATMA1?

    Typical applications include synchronous rectification in SMPS, solar micro inverters, isolated DC-DC converters, and motor control.

  6. What is the maximum junction temperature of this MOSFET?

    The maximum junction temperature is 175°C.

  7. What package type is used for the BSC028N06NSATMA1?

    The package type is PG-TDSON-8.

  8. Does the BSC028N06NSATMA1 have any special thermal features?
  9. Is the BSC028N06NSATMA1 100% avalanche tested?
  10. What is the benefit of the lower RDS(on) in this MOSFET?

    The lower RDS(on) results in higher system efficiency and reduced need for paralleling multiple devices.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:23A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On):6V, 10V
Rds On (Max) @ Id, Vgs:2.8mOhm @ 50A, 10V
Vgs(th) (Max) @ Id:2.8V @ 50µA
Gate Charge (Qg) (Max) @ Vgs:37 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:2700 pF @ 30 V
FET Feature:-
Power Dissipation (Max):2.5W (Ta), 83W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:PG-TDSON-8-7
Package / Case:8-PowerTDFN
