AUIRLS3034-7TRL
  • Share:

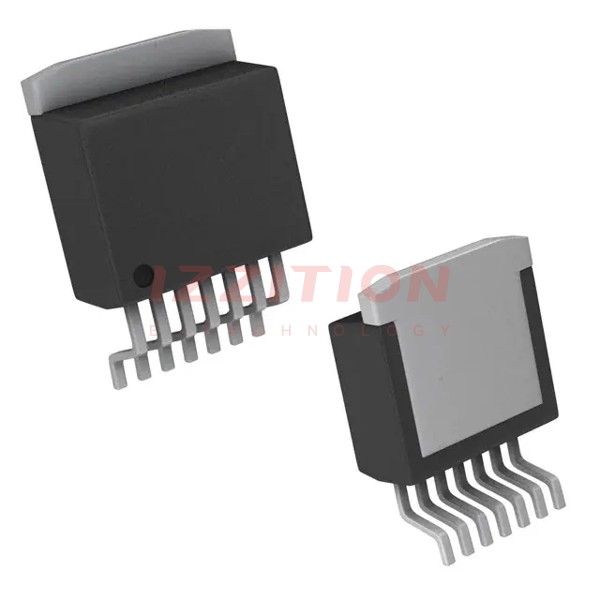

Infineon Technologies AUIRLS3034-7TRL

Manufacturer No:
AUIRLS3034-7TRL
Manufacturer:
Infineon Technologies
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 40V 240A D2PAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The AUIRLS3034-7TRL is a high-performance, automotive-qualified N-Channel MOSFET developed and manufactured by Infineon Technologies. This MOSFET is part of the HEXFET® series and is known for its advanced process technology, ultra-low on-resistance, and high power handling capabilities. It is packaged in a D2PAK-7 format, which is compact and suitable for various automotive electronics designs. The component is lead-free and RoHS compliant, ensuring it meets stringent environmental and safety standards.

Key Specifications

ParameterValue
Part NumberAUIRLS3034-7TRL
ManufacturerInfineon Technologies
Package/CaseD2PAK-7, TO-263-8, TO-263CA
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C240 A (Tc)
Rds On (Max) @ Id, Vgs1.4 mΩ @ 200 A, 10 V
Vgs(th) (Max) @ Id2.5 V @ 250 µA
Gate Charge (Qg) (Max) @ Vgs180 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds10.99 pF @ 40 V
Vgs (Max)±20 V
Operating Temperature-55°C ~ 175°C (TJ)
Power Dissipation (Max)380 W (Tc)

Key Features

  • Advanced process technology for high performance.
  • Ultra-low on-resistance of 1.4 mΩ @ 200 A, 10 V.
  • High power handling capability of up to 380 W.
  • Fast switching and repetitive avalanche allowed up to Tjmax.
  • Lead-free and RoHS compliant.
  • Automotive qualified with an operating temperature range of -55°C to 175°C.
  • Compact D2PAK-7 package suitable for automotive electronics design.

Applications

The AUIRLS3034-7TRL MOSFET is designed for demanding automotive applications, including power management, motor control, and inverter systems. It is particularly suited for electric two-wheeler applications, battery protection switches, and other high-power automotive electronics. Its robustness and high performance make it an ideal choice for applications requiring reliable and efficient power switching.

Q & A

  1. What is the AUIRLS3034-7TRL MOSFET? The AUIRLS3034-7TRL is a high-performance, automotive-qualified N-Channel MOSFET from Infineon Technologies.
  2. What is the package type of the AUIRLS3034-7TRL? It is packaged in a D2PAK-7 format.
  3. What is the maximum drain to source voltage (Vdss) of the AUIRLS3034-7TRL? The maximum Vdss is 40 V.
  4. What is the continuous drain current (Id) of the AUIRLS3034-7TRL at 25°C? The continuous drain current is 240 A (Tc).
  5. What is the on-resistance (Rds On) of the AUIRLS3034-7TRL? The maximum Rds On is 1.4 mΩ @ 200 A, 10 V.
  6. Is the AUIRLS3034-7TRL lead-free and RoHS compliant? Yes, it is lead-free and RoHS compliant.
  7. What is the operating temperature range of the AUIRLS3034-7TRL? The operating temperature range is -55°C to 175°C (TJ).
  8. What are the typical applications of the AUIRLS3034-7TRL? It is used in power management, motor control, inverter systems, and other high-power automotive electronics.
  9. What is the power dissipation capability of the AUIRLS3034-7TRL? The maximum power dissipation is 380 W (Tc).
  10. Is the AUIRLS3034-7TRL suitable for electric two-wheeler applications? Yes, it is particularly suited for electric two-wheeler applications due to its high performance and robustness.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:240A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:1.4mOhm @ 200A, 10V
Vgs(th) (Max) @ Id:2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:180 nC @ 4.5 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:10990 pF @ 40 V
FET Feature:-
Power Dissipation (Max):380W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:D2PAK (7-Lead)
Package / Case:TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
0 Remaining View Similar

In Stock

$4.58
61

Please send RFQ , we will respond immediately.
