Overview
The BCP 69-16 E6327 is a bipolar junction transistor (BJT) produced by Infineon Technologies. Although this component is currently obsolete and no longer manufactured, it was designed to serve various applications in electronic circuits. The BCP 69-16 E6327 is a PNP transistor, which means it is used in circuits where a positive voltage is required to control the flow of current.
Key Specifications
| Parameter | Value |
|---|---|
| Type | Bipolar Junction Transistor (BJT) - PNP |

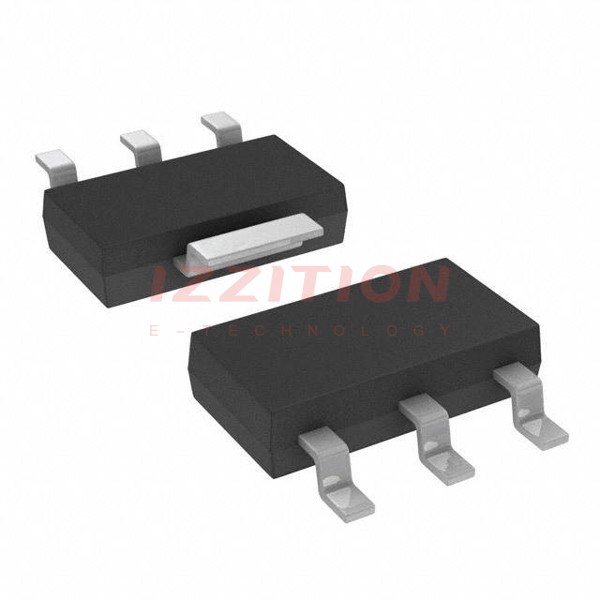

| Package / Case | TO-261-4, TO-261AA (SOT-223) |
| Surface Mount | YES |
| Transistor Element Material | SILICON |
| Operating Temperature | 150°C TJ |
| Collector-Base Voltage (Vcb) | 20V |
| Collector-Emitter Voltage (Vce) | 20V |
| Collector Current (Ic) | 1A |
Key Features
- PNP Transistor: Suitable for applications requiring a positive voltage to control current flow.
- High Current Capability: Can handle up to 1A of collector current.
- Compact Package: Available in SOT-223 package, making it suitable for surface mount applications.
- High Operating Temperature: Can operate up to 150°C junction temperature.
- Versatile Use: Can be used as an amplifier, switch, or oscillator in various electronic circuits.
Applications
The BCP 69-16 E6327 is versatile and can be used in a variety of applications, including:
- Industrial Electronics: For control and switching in industrial automation and control systems.
- Automotive Electronics: In automotive systems for various control and switching functions.
- Consumer Electronics: In audio amplifiers, power supplies, and other consumer electronic devices.
- DC-to-DC Converters: As a switching element in DC-to-DC converter circuits.
Q & A
- What type of transistor is the BCP 69-16 E6327?
The BCP 69-16 E6327 is a PNP bipolar junction transistor (BJT).
- What is the maximum collector current of the BCP 69-16 E6327?
The maximum collector current is 1A.
- What is the operating temperature range of the BCP 69-16 E6327?
The operating temperature range is up to 150°C junction temperature.
- In what package is the BCP 69-16 E6327 available?
The BCP 69-16 E6327 is available in the SOT-223 package.
- Is the BCP 69-16 E6327 still in production?
No, the BCP 69-16 E6327 is obsolete and no longer manufactured.
- What are some common applications of the BCP 69-16 E6327?
Common applications include industrial electronics, automotive electronics, consumer electronics, and DC-to-DC converters.
- What is the collector-base voltage rating of the BCP 69-16 E6327?
The collector-base voltage rating is 20V.
- Can the BCP 69-16 E6327 be used as an amplifier?
Yes, the BCP 69-16 E6327 can be used as an amplifier in electronic circuits.
- What material is the transistor element made of?
The transistor element is made of silicon.
- Where can I find substitutes for the BCP 69-16 E6327?
Substitutes can be found through electronic component distributors such as Digi-Key, Mouser, or other similar platforms.
