Overview

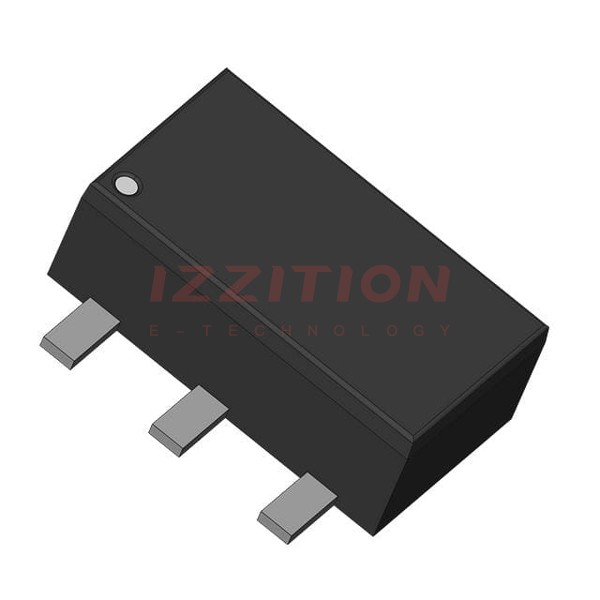

The BCX56-16E6433 is a general-purpose NPN bipolar transistor manufactured by Infineon Technologies. This transistor is part of the BCX56 series, known for its reliability and versatility in various electronic applications. It is packaged in a SOT-89 format, making it suitable for surface mount technology (SMT) and offering a compact solution for modern electronic designs.
Key Specifications
| Parameter | Symbol | Value | Units | Conditions |
|---|---|---|---|---|
| Collector-Base Breakdown Voltage | V(BR)CBO | 100 | V | IC = 0, VCB = 30V |
| Collector-Emitter Breakdown Voltage | V(BR)CEO | 80 | V | IC = 10mA, IB = 0 |
| Emitter-Base Breakdown Voltage | V(BR)EBO | 5 | V | IE = 10µA, IC = 0 |
| Collector Current | IC | 1 | A | |
| Base Current | IB | 0.1 | A | |
| DC Current Gain (hFE) | hFE(1) | 63-250 | VCE = 2.0V, IC = 150mA | |
| Transition Frequency | fT | 130 | MHz | VCE = 5.0V, IC = 10mA, f = 100MHz |
| Collector-Emitter Saturation Voltage | VCE(sat) | 0.5 | V | IC = 500mA, IB = 50mA |
| Operating Junction Temperature Range | Tj | -55 to +150 | °C | |
| Storage Temperature Range | Tstg | -55 to +150 | °C |
Key Features
- Halogen Free and RoHS Compliant: The BCX56-16E6433 is a 'green' device, containing less than 900ppm bromine, chlorine, and antimony compounds, and is lead-free, making it environmentally friendly and compliant with RoHS standards.
- High Reliability: The transistor has an epoxy that meets UL 94 V-0 flammability rating, ensuring high reliability in various applications.
- Compact Packaging: The SOT-89 package is ideal for surface mount technology, providing a compact solution for modern electronic designs.
- Wide Operating Temperature Range: The transistor can operate over a temperature range of -55°C to +150°C, making it suitable for a variety of environmental conditions.
Applications
The BCX56-16E6433 is suitable for a wide range of general-purpose applications, including but not limited to:
- Amplifier Circuits: Due to its high DC current gain and transition frequency, it is ideal for amplifier circuits in audio and radio frequency applications.
- Switching Circuits: Its low collector-emitter saturation voltage and high collector current make it suitable for switching applications.
- Automotive Electronics: The transistor's ability to operate over a wide temperature range makes it a good choice for automotive electronics.
- Consumer Electronics: It can be used in various consumer electronic devices such as TVs, radios, and other household appliances.
Q & A
- What is the collector-emitter breakdown voltage of the BCX56-16E6433?
The collector-emitter breakdown voltage (V(BR)CEO) is 80V. - What is the maximum collector current of the BCX56-16E6433?
The maximum collector current (IC) is 1A. - What is the transition frequency of the BCX56-16E6433?
The transition frequency (fT) is 130MHz. - Is the BCX56-16E6433 RoHS compliant?
Yes, the BCX56-16E6433 is RoHS compliant and lead-free. - What is the operating junction temperature range of the BCX56-16E6433?
The operating junction temperature range is -55°C to +150°C. - What type of package does the BCX56-16E6433 use?
The BCX56-16E6433 is packaged in a SOT-89 format. - What are some common applications of the BCX56-16E6433?
Common applications include amplifier circuits, switching circuits, automotive electronics, and consumer electronics. - What is the DC current gain (hFE) range of the BCX56-16E6433?
The DC current gain (hFE) range is 63-250. - Is the BCX56-16E6433 halogen-free?
Yes, the BCX56-16E6433 is halogen-free. - What is the collector-emitter saturation voltage of the BCX56-16E6433?
The collector-emitter saturation voltage (VCE(sat)) is 0.5V.
