Overview

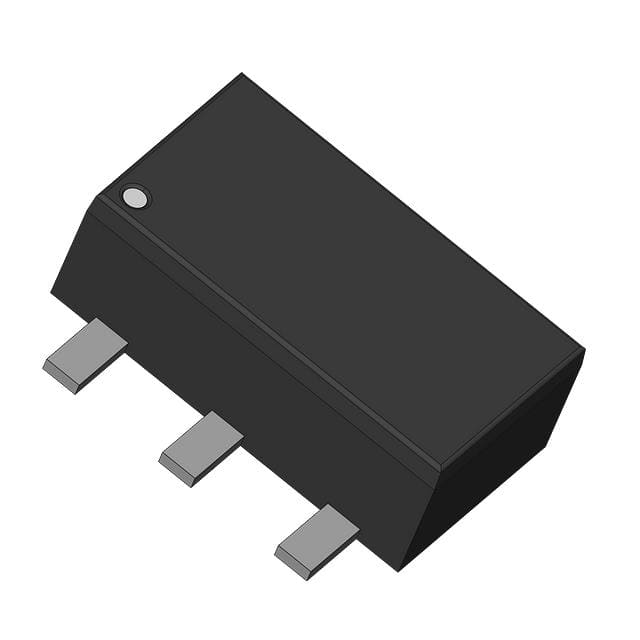

The BCX53-16E6433 is a high-performance bipolar junction transistor (BJT) manufactured by Infineon Technologies. This PNP transistor is designed for demanding commercial and industrial applications, offering robust and dependable performance. It features a maximum collector-emitter voltage of 80 V, a maximum collector current of 1 A, and a transition frequency of 125 MHz. The transistor is packaged in a SOT-89-4 surface mount package, making it suitable for a wide range of electronic projects.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Infineon Technologies |
| Part Number | BCX53-16E6433 |
| Polarity/Channel Type | PNP |
| Collector-Emitter Voltage (Max) | 80 V |
| Collector Current (Max) | 1 A |
| Transition Frequency | 125 MHz |
| Power Dissipation (Max) | 2 W |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-89-4 |
| DC Current Gain (hFE) (Min) | 40 @ 50mA, 2V |
| RoHS Status | ROHS3 Compliant |
| AEC-Q101 Qualified | Yes |
Key Features
- High Performance: The BCX53-16E6433 offers high transition frequency and current gain, making it suitable for high-speed switching applications.
- Robust Design: With a maximum collector-emitter voltage of 80 V and a maximum collector current of 1 A, this transistor is robust and dependable for demanding applications.
- Surface Mount Package: The SOT-89-4 package is compact and suitable for surface mount technology, facilitating easy integration into modern electronic designs.
- AEC-Q101 Qualified: This transistor meets the Automotive Electronics Council Q101 (AEC-Q101) standards, ensuring reliability and performance in automotive and industrial environments.
- High Operating Temperature: The transistor can operate up to 150°C (TJ), making it suitable for high-temperature applications.
Applications
- Automotive Systems: Due to its AEC-Q101 qualification, this transistor is ideal for use in automotive systems, including power management and control circuits.
- Industrial Control: It is suitable for industrial control systems, motor control, and power switching applications where reliability and high performance are critical.
- Consumer Electronics: The BCX53-16E6433 can be used in various consumer electronic devices that require high-speed switching and robust performance.
- Power Management: It is used in power management circuits, such as voltage regulators, power amplifiers, and switching power supplies.
Q & A
- What is the maximum collector-emitter voltage of the BCX53-16E6433?
The maximum collector-emitter voltage is 80 V.
- What is the maximum collector current of the BCX53-16E6433?
The maximum collector current is 1 A.
- What is the transition frequency of the BCX53-16E6433?
The transition frequency is 125 MHz.
- What package type is used for the BCX53-16E6433?
The transistor is packaged in a SOT-89-4 surface mount package.
- Is the BCX53-16E6433 AEC-Q101 qualified?
Yes, it is AEC-Q101 qualified.
- What is the operating temperature range of the BCX53-16E6433?
The operating temperature range is up to 150°C (TJ).
- What are the typical applications of the BCX53-16E6433?
Typical applications include automotive systems, industrial control, consumer electronics, and power management circuits.
- Is the BCX53-16E6433 RoHS compliant?
Yes, it is ROHS3 compliant.
- What is the DC current gain (hFE) of the BCX53-16E6433?
The DC current gain (hFE) is 40 @ 50mA, 2V.
- Where can I find the datasheet for the BCX53-16E6433?
The datasheet can be found on the official Infineon Technologies website or through authorized distributors like Cytech Systems and Avaq Semiconductor.
