Overview

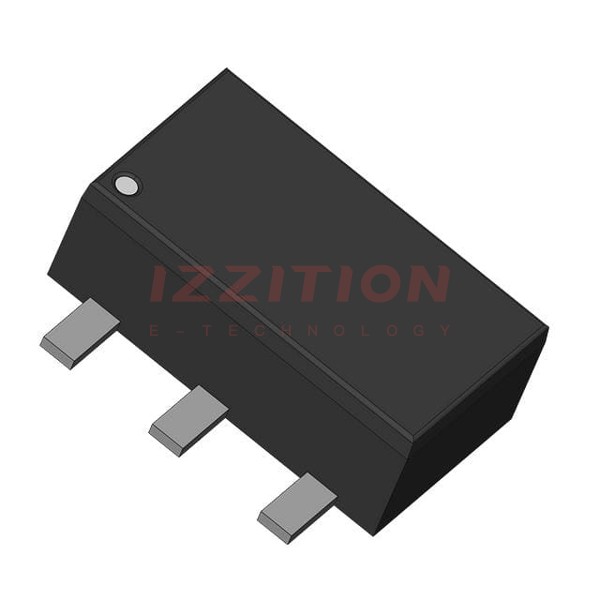

The BCX53-16-E6433 is a PNP medium power bipolar transistor manufactured by Infineon Technologies. This transistor is part of Infineon's general-purpose transistor family and is designed for a variety of applications requiring medium power handling. The BCX53-16 is housed in the SOT-89 package, making it suitable for surface mount technology (SMT) assembly.
Key Specifications
| Parameter | Value |
|---|---|
| Transistor Polarity | PNP |
| Collector-Emitter Voltage (Vbrceo) | -80V |
| Transition Frequency (ft) | 125MHz |
| Power Dissipation (Pd) | 500mW |
| DC Collector Current | -1A |
| DC Current Gain (hFE) | 250hFE |
| Transistor Case Style | SOT-89 |
| No. of Pins | 3 Pins |
| Operating Temperature Max | 150°C |
| Operating Temperature Min | -65°C |
| Moisture Sensitivity Level (MSL) | MSL 1 - Unlimited |
| SVHC (Substances of Very High Concern) | No SVHC (20-Jun-2016) |
Key Features
- High Collector-Emitter Voltage: The BCX53-16 can handle a collector-emitter voltage of up to 80V, making it suitable for applications requiring high voltage handling.
- Medium Power Handling: With a DC collector current of 1A and power dissipation of 500mW, this transistor is ideal for medium power applications.
- High Transition Frequency: The transistor has a transition frequency of 125MHz, which is beneficial for high-frequency applications.
- Compact SOT-89 Package: The SOT-89 package is compact and suitable for surface mount technology, making it ideal for space-constrained designs.
- Wide Operating Temperature Range: The transistor operates over a temperature range of -65°C to 150°C, making it versatile for various environmental conditions.
Applications
- General Purpose Amplification: The BCX53-16 is suitable for general-purpose amplification in audio, signal processing, and other electronic circuits.
- Switching Applications: Its high transition frequency and medium power handling make it suitable for switching applications in power supplies, motor control, and other high-frequency switching circuits.
- Automotive and Industrial Electronics: The transistor's robust specifications and wide operating temperature range make it a good choice for automotive and industrial electronics where reliability and durability are crucial.
Q & A
- What is the collector-emitter voltage of the BCX53-16 transistor?
The collector-emitter voltage (Vbrceo) of the BCX53-16 transistor is -80V.
- What is the maximum DC collector current of the BCX53-16?
The maximum DC collector current of the BCX53-16 is -1A.
- What is the transition frequency of the BCX53-16 transistor?
The transition frequency (ft) of the BCX53-16 transistor is 125MHz.
- What is the power dissipation of the BCX53-16 transistor?
The power dissipation (Pd) of the BCX53-16 transistor is 500mW.
- What is the package type of the BCX53-16 transistor?
The BCX53-16 transistor is housed in the SOT-89 package.
- What is the operating temperature range of the BCX53-16 transistor?
The operating temperature range of the BCX53-16 transistor is from -65°C to 150°C.
- Is the BCX53-16 transistor RoHS compliant?
Yes, the BCX53-16 transistor is RoHS compliant and does not contain Substances of Very High Concern (SVHC) as of 20-Jun-2016.
- What are some common applications of the BCX53-16 transistor?
The BCX53-16 transistor is commonly used in general-purpose amplification, switching applications, automotive electronics, and industrial electronics.
- Where can I find the datasheet for the BCX53-16 transistor?
The datasheet for the BCX53-16 transistor can be found on the official Infineon Technologies website or through authorized distributors like Nexperia and Digi-Key.
- What is the moisture sensitivity level (MSL) of the BCX53-16 transistor?
The BCX53-16 transistor has a moisture sensitivity level (MSL) of 1 - Unlimited.
