Overview

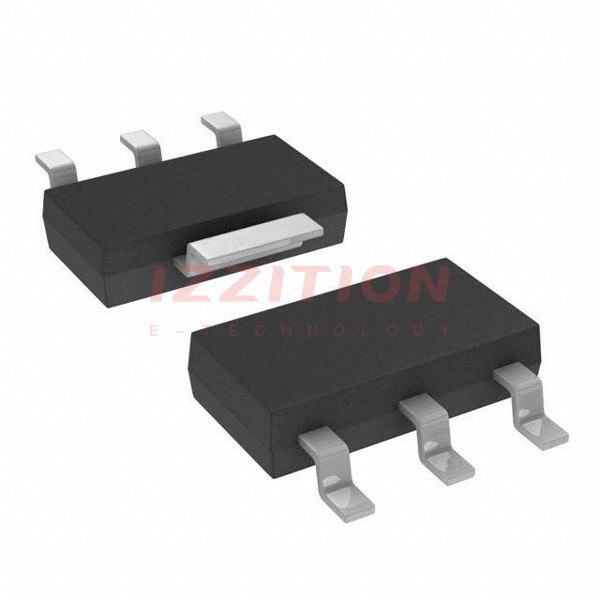

The BCP6925H6327XTSA1 is a bipolar junction transistor (BJT) produced by Infineon Technologies. This PNP transistor is designed for general-purpose applications and is packaged in a surface-mount SOT223-4 package. The component is completely lead-free and halogen-free, aligning with modern environmental standards. However, it is important to note that this product is scheduled for obsolescence and will be discontinued by the manufacturer, with a last time buy date of December 31, 2026.
Key Specifications
| Parameter | Value |
|---|---|
| Type | PNP Bipolar Junction Transistor (BJT) |
| Voltage Rating (Vceo) | 20 V |
| Current Rating (Ic) | 1 A |
| Frequency Rating (fT) | 100 MHz |
| Power Dissipation (Ptot) | 3 W |
| Package Type | SOT223-4 (Surface Mount) |
| Lead-Free | Yes |
| Halogen-Free | Yes |
| Lifecycle Status | Obsolete (Scheduled for discontinuation) |
Key Features
- PNP bipolar junction transistor suitable for general-purpose applications.
- High current and voltage ratings, making it versatile for various uses.
- High frequency rating of 100 MHz, suitable for high-frequency applications.
- Surface-mount SOT223-4 package for easy integration into modern PCB designs.
- Completely lead-free and halogen-free, complying with environmental regulations.
Applications
The BCP6925H6327XTSA1 is suitable for a wide range of general-purpose applications, including but not limited to:
- Amplifier circuits
- Switching circuits
- High-frequency applications such as RF amplifiers and oscillators
- Automotive and industrial control systems
Q & A
- What is the type of the BCP6925H6327XTSA1 transistor?
The BCP6925H6327XTSA1 is a PNP bipolar junction transistor (BJT).
- What is the voltage rating of the BCP6925H6327XTSA1?
The voltage rating (Vceo) of the BCP6925H6327XTSA1 is 20 V.
- What is the current rating of the BCP6925H6327XTSA1?
The current rating (Ic) of the BCP6925H6327XTSA1 is 1 A.
- What is the frequency rating of the BCP6925H6327XTSA1?
The frequency rating (fT) of the BCP6925H6327XTSA1 is 100 MHz.
- What is the package type of the BCP6925H6327XTSA1?
The BCP6925H6327XTSA1 is packaged in a surface-mount SOT223-4 package.
- Is the BCP6925H6327XTSA1 lead-free and halogen-free?
Yes, the BCP6925H6327XTSA1 is completely lead-free and halogen-free.
- What is the lifecycle status of the BCP6925H6327XTSA1?
The BCP6925H6327XTSA1 is scheduled for obsolescence and will be discontinued by the manufacturer.
- What is the last time buy date for the BCP6925H6327XTSA1?
The last time buy date for the BCP6925H6327XTSA1 is December 31, 2026.
- Where can I find more detailed specifications for the BCP6925H6327XTSA1?
You can find detailed specifications in the datasheet available on the manufacturer's website or through distributors like Mouser and Digi-Key.
- What are some common applications for the BCP6925H6327XTSA1?
The BCP6925H6327XTSA1 is suitable for amplifier circuits, switching circuits, high-frequency applications, and automotive and industrial control systems.
