Overview

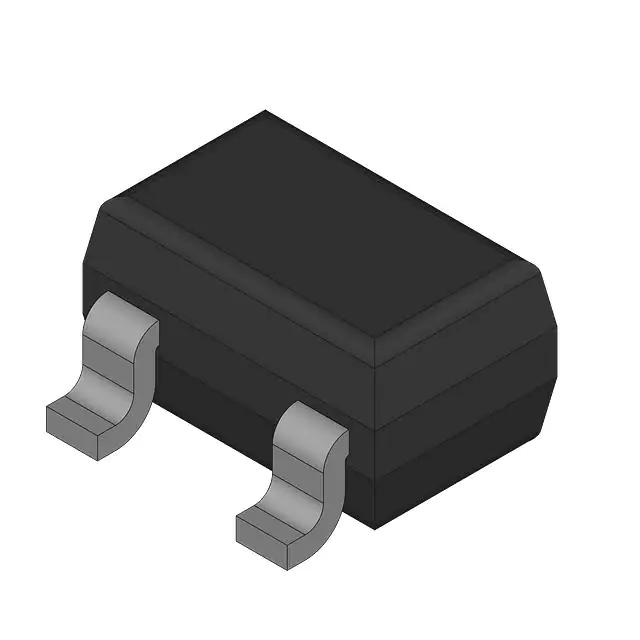

The BC807-25WE6327 is a PNP silicon bipolar junction transistor (BJT) manufactured by Infineon Technologies. This transistor is designed for general-purpose amplification and switching applications. It features a high collector current, high current gain, and low collector-emitter saturation voltage, making it suitable for a wide range of electronic circuits. The transistor is packaged in a SOT-323 (SC-70) surface mount package, which is lead-free and RoHS compliant.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Transistor Type | PNP | - |
| Voltage - Collector Emitter Breakdown (Max) | 45 | V |
| Current - Collector (Ic) (Max) | 500 | mA |
| Power - Max | 250 | mW |
| Frequency - Transition | 200 | MHz |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 100mA, 1V | - |
| Vce Saturation (Max) @ Ib, Ic | 700mV @ 50mA, 500mA | - |
| Operating Temperature | -55 to +150 | °C |
| Package / Case | SOT-323 (SC-70) | - |
| Mounting Type | Surface Mount | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | - |
Key Features
- High collector current of up to 500 mA
- High current gain (hFE) with a minimum value of 160 at 100 mA and 1 V
- Low collector-emitter saturation voltage (Vce(sat)) of up to 700 mV
- Transition frequency of 200 MHz, suitable for high-frequency applications
- Pb-free (RoHS compliant) SOT-323 package
- Operating temperature range from -55°C to +150°C
- Complementary types available (BC817.../W, BC818.../W for NPN)
Applications
- General-purpose amplification and switching circuits
- Audio amplifiers and other low-power audio applications
- Automotive and industrial control systems
- Consumer electronics such as home appliances and audio equipment
- Low-power DC-DC converters and power management circuits
Q & A
- What is the maximum collector current of the BC807-25WE6327?
The maximum collector current is 500 mA.
- What is the collector-emitter breakdown voltage of the BC807-25WE6327?
The collector-emitter breakdown voltage is up to 45 V.
- What is the transition frequency of the BC807-25WE6327?
The transition frequency is 200 MHz.
- What is the package type of the BC807-25WE6327?
The package type is SOT-323 (SC-70).
- Is the BC807-25WE6327 RoHS compliant?
- What is the operating temperature range of the BC807-25WE6327?
- What are the complementary types of the BC807-25WE6327?
- What is the maximum power dissipation of the BC807-25WE6327?
- What is the DC current gain (hFE) of the BC807-25WE6327?
- What is the collector-emitter saturation voltage (Vce(sat)) of the BC807-25WE6327?
