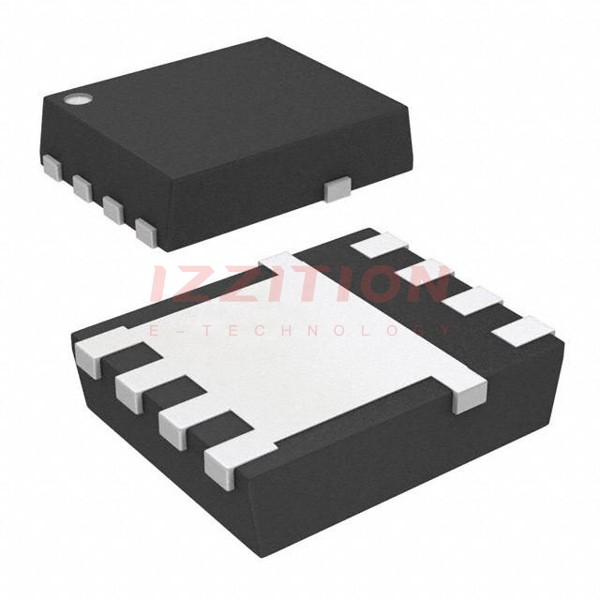

Texas Instruments CSD18512Q5B

Manufacturer No:
CSD18512Q5B
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 40V 211A 8VSON
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The Texas Instruments CSD18512Q5B is a 40 V, 1.3 mΩ N-channel NexFET™ power MOSFET designed to minimize losses in power conversion applications. This device is housed in a 5 mm × 6 mm PowerTDFN-8 package and is optimized for high-efficiency switching in various power management scenarios. It features low thermal resistance, rapid current sensing, and overcurrent limiting protection, making it a robust and reliable choice for demanding applications.

Key Specifications

ParameterValueUnit
VDS (Drain to Source Voltage)40V
Rds(on) at VGS=4.5 V (max)2.3mΩ
Rds(on) at VGS=10 V (max)1.6mΩ
IDM - Pulsed Drain Current (max)400A
QG (Total Gate Charge) (typ)75nC
QGD (Gate to Drain Charge) (typ)13.3nC
VGS (Gate to Source Voltage)±20V
VGS(th) (Threshold Voltage) (typ)1.6V
ID - Continuous Drain Current (silicon limited) at TC=25°C211A
Operating Temperature Range-55 to 150°C

Key Features

  • Low RDS(on) for high efficiency
  • Low thermal resistance
  • Rapid current sensing
  • Overcurrent limiting protection
  • Avalanche rated
  • Logic level compatibility
  • Pb-free terminal plating and RoHS compliant
  • Halogen-free

Applications

  • DC-DC conversion
  • Secondary side synchronous rectifier
  • Motor control

Q & A

  1. What is the maximum drain to source voltage (VDS) of the CSD18512Q5B?
    The maximum VDS is 40 V.
  2. What is the typical on-resistance (Rds(on)) at VGS=10 V?
    The typical Rds(on) at VGS=10 V is 1.6 mΩ.
  3. What is the maximum pulsed drain current (IDM) of the CSD18512Q5B?
    The maximum IDM is 400 A.
  4. What is the operating temperature range of the CSD18512Q5B?
    The operating temperature range is -55 to 150°C.
  5. Is the CSD18512Q5B RoHS compliant?
    Yes, the CSD18512Q5B is RoHS compliant.
  6. What package type is the CSD18512Q5B available in?
    The CSD18512Q5B is available in a PowerTDFN-8 package.
  7. What are some of the key applications of the CSD18512Q5B?
    The key applications include DC-DC conversion, secondary side synchronous rectifier, and motor control.
  8. Does the CSD18512Q5B support logic level gate drive?
    Yes, the CSD18512Q5B supports logic level gate drive.
  9. What is the typical gate charge (QG) of the CSD18512Q5B?
    The typical QG is 75 nC.
  10. Is the CSD18512Q5B halogen-free?
    Yes, the CSD18512Q5B is halogen-free.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:211A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:1.6mOhm @ 30A, 10V
Vgs(th) (Max) @ Id:2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:-
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:7120 pF @ 20 V
FET Feature:-
Power Dissipation (Max):139W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-VSON-CLIP (5x6)
Package / Case:8-PowerTDFN
