NTTFS008P03P8Z
  • Share:

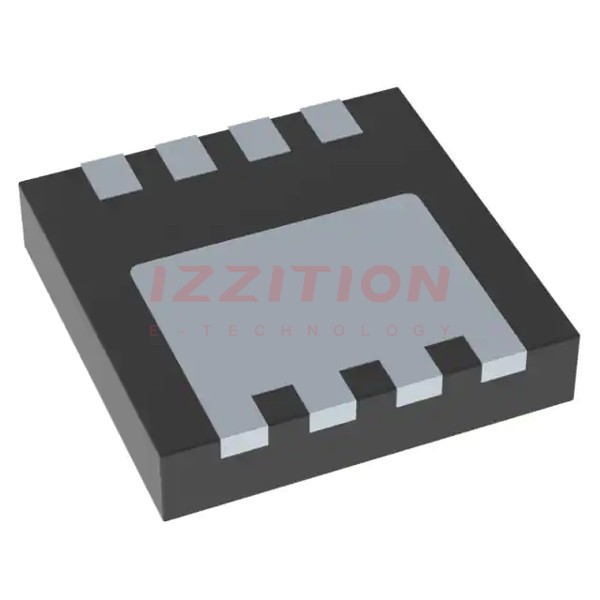

onsemi NTTFS008P03P8Z

Manufacturer No:
NTTFS008P03P8Z
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET P-CH 30V 22A/96A 8PQFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NTTFS008P03P8Z is a high-performance P-Channel MOSFET transistor manufactured by onsemi. This device is designed for high-current and high-voltage applications, offering excellent thermal conduction and space-saving design. The MOSFET features an ultra-low on-resistance (RDS(on)) to improve system efficiency and is packaged in an 8-PQFN (3.3x3.3mm) surface mount package. It is RoHS compliant and free from lead, halogen, and BFR (Brominated Flame Retardants), making it suitable for a wide range of applications where environmental compliance is crucial.

Key Specifications

Parameter Value Unit
Channel Type P-Channel
Maximum Drain Source Voltage 30 V V
Maximum Continuous Drain Current 22 A (Ta), 96 A (Tc) A
Maximum Drain Source Resistance 3.8 mΩ @ 18 A, 10 V Ω
Maximum Gate Threshold Voltage 3 V @ 250 µA V
Maximum Junction Temperature 150°C (TJ) °C
Maximum Power Dissipation 2.36 W (Ta), 50 W (Tc) W
Maximum Pulse Drain Current 418 A A
Maximum Total Gate Charge 134 nC nC
Gate to Source Voltage ±25 V V
Package Type 8-PQFN (3.3x3.3mm)
Mounting Type Surface Mount
Junction to Case Thermal Resistance 2.5 °C/W °C/W

Key Features

  • Ultra Low RDS(on): Improves system efficiency with a very low on-resistance.
  • Advanced Package Technology: The 8-PQFN package provides excellent thermal conduction and space-saving design.
  • Environmental Compliance: Pb-free, halogen-free, and BFR-free, making it RoHS compliant.
  • High Current and Voltage Handling: Capable of handling up to 96 A of continuous drain current and 30 V of drain-source voltage.
  • Low Gate Threshold Voltage: With a maximum gate threshold voltage of 3 V, it is suitable for a variety of gate drive voltages.

Applications

  • Power Load Switch: Ideal for applications requiring high current switching.
  • Protection Circuits: Suitable for reverse current, over voltage, and reverse negative voltage protection.
  • Battery Management: Used in battery management systems for efficient power handling.

Q & A

  1. What is the maximum drain-source voltage of the NTTFS008P03P8Z MOSFET?

    The maximum drain-source voltage is 30 V.

  2. What is the maximum continuous drain current of the NTTFS008P03P8Z?

    The maximum continuous drain current is 22 A at ambient temperature (Ta) and 96 A at case temperature (Tc).

  3. What is the package type of the NTTFS008P03P8Z?

    The package type is 8-PQFN (3.3x3.3mm) surface mount.

  4. Is the NTTFS008P03P8Z RoHS compliant?

    Yes, it is RoHS compliant and free from lead, halogen, and BFR.

  5. What is the maximum junction temperature of the NTTFS008P03P8Z?

    The maximum junction temperature is 150°C (TJ).

  6. What are the typical applications of the NTTFS008P03P8Z?

    Typical applications include power load switch, protection circuits, and battery management.

  7. What is the maximum gate threshold voltage of the NTTFS008P03P8Z?

    The maximum gate threshold voltage is 3 V at 250 µA.

  8. What is the junction to case thermal resistance of the NTTFS008P03P8Z?

    The junction to case thermal resistance is 2.5 °C/W.

  9. What is the maximum pulse drain current of the NTTFS008P03P8Z?

    The maximum pulse drain current is 418 A.

  10. What is the maximum total gate charge of the NTTFS008P03P8Z?

    The maximum total gate charge is 134 nC.

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:22A (Ta), 96A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:3.8mOhm @ 18A, 10V
Vgs(th) (Max) @ Id:3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:134 nC @ 10 V
Vgs (Max):±25V
Input Capacitance (Ciss) (Max) @ Vds:5600 pF @ 15 V
FET Feature:-
Power Dissipation (Max):2.36W (Ta), 50W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-PQFN (3.3x3.3)
Package / Case:8-PowerWDFN
