NTMFS4982NFT1G
  • Share:

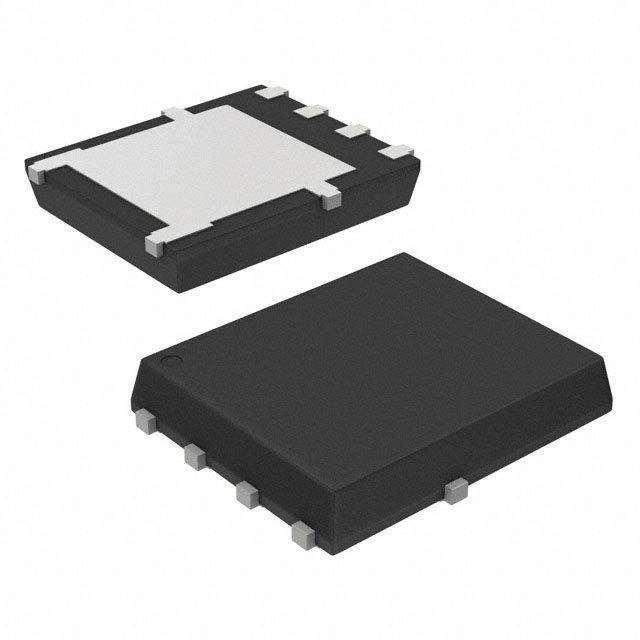

onsemi NTMFS4982NFT1G

Manufacturer No:
NTMFS4982NFT1G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 30V 26.5A/207A 5DFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NTMFS4982NFT1G is a single N-channel power MOSFET produced by onsemi. This component is designed for high-performance applications requiring efficient power management. However, it is important to note that this product has been discontinued by onsemi, with the last time buy date being April 1, 2022, and the last ship date being October 1, 2022.

Key Specifications

Parameter Value
Transistor Polarity N-Channel
Number of Channels 1 Channel
Vds - Drain-Source Breakdown Voltage 30 V
Id - Continuous Drain Current 207 A

Key Features

  • High Current Capability: The NTMFS4982NFT1G can handle a continuous drain current of 207 A, making it suitable for high-power applications.
  • Low On-Resistance: This MOSFET is designed to minimize on-resistance, ensuring efficient power transfer and reduced heat generation.
  • Robust Construction: The component is built with a robust design to withstand various environmental and operational stresses.

Applications

  • Power Management Systems: Ideal for use in power management systems that require high current handling and efficient power switching.
  • Industrial Control Systems: Suitable for industrial control systems, motor drives, and other high-power applications.
  • Automotive Systems: Can be used in automotive systems where high reliability and performance are critical.

Q & A

  1. What is the transistor polarity of the NTMFS4982NFT1G?

    The transistor polarity is N-Channel.

  2. What is the continuous drain current rating of the NTMFS4982NFT1G?

    The continuous drain current rating is 207 A.

  3. What is the drain-source breakdown voltage of the NTMFS4982NFT1G?

    The drain-source breakdown voltage is 30 V.

  4. Is the NTMFS4982NFT1G still in production?

    No, the NTMFS4982NFT1G has been discontinued by onsemi.

  5. What was the last time buy date for the NTMFS4982NFT1G?

    The last time buy date was April 1, 2022.

  6. What was the last ship date for the NTMFS4982NFT1G?

    The last ship date was October 1, 2022.

  7. What are some potential applications for the NTMFS4982NFT1G?

    Potential applications include power management systems, industrial control systems, and automotive systems.

  8. Where can I find replacement parts for the NTMFS4982NFT1G?

    onsemi has partnered with Rochester Electronics and Flip Electronics to carry remaining inventory. You may also need to consider alternative standard devices suggested by onsemi.

  9. What should I do if I need to continue using the NTMFS4982NFT1G after its discontinuance?

    You should contact onsemi or their authorized distributors to discuss possible alternatives or negotiate an appropriate end-of-life plan.

  10. Are there any minimum order quantities or special conditions for purchasing the remaining stock of NTMFS4982NFT1G?

    Yes, onsemi may implement minimum order quantities or dollar amounts based on available inventories, and the devices become non-cancelable and non-returnable (NCNR).

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:26.5A (Ta), 207A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:1.3mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:2.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:84 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:6000 pF @ 15 V
FET Feature:-
Power Dissipation (Max):1.5W (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:5-DFN (5x6) (8-SOFL)
Package / Case:8-PowerTDFN, 5 Leads
0 Remaining View Similar

In Stock

-
17

Please send RFQ , we will respond immediately.

Same Series
NTMFS4982NFT3G
NTMFS4982NFT3G
MOSFET N-CH 30V 26.5A/207A 5DFN

Similar Products

Part Number NTMFS4982NFT1G NTMFS4985NFT1G NTMFS4983NFT1G NTMFS4982NFT3G
Manufacturer onsemi onsemi onsemi onsemi
Product Status Obsolete Obsolete Obsolete Last Time Buy
FET Type N-Channel N-Channel N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V 30 V 30 V 30 V
Current - Continuous Drain (Id) @ 25°C 26.5A (Ta), 207A (Tc) 17.5A (Ta), 65A (Tc) 22A (Ta), 106A (Tc) 26.5A (Ta), 207A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V 4.5V, 10V 4.5V, 10V 4.5V, 10V
Rds On (Max) @ Id, Vgs 1.3mOhm @ 25A, 10V 3.4mOhm @ 30A, 10V 2.1mOhm @ 30A, 10V 1.3mOhm @ 25A, 10V
Vgs(th) (Max) @ Id 2.2V @ 1mA 2.3V @ 1mA 2.3V @ 1mA 2.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 84 nC @ 10 V 30.5 nC @ 10 V 47.9 nC @ 10 V 84 nC @ 10 V
Vgs (Max) ±20V ±20V ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 6000 pF @ 15 V 2100 pF @ 15 V 3250 pF @ 15 V 6000 pF @ 15 V
FET Feature - - - -
Power Dissipation (Max) 1.5W (Ta) 1.63W (Ta), 22.73W (Tc) 1.7W (Ta) 1.5W (Ta)
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Supplier Device Package 5-DFN (5x6) (8-SOFL) 5-DFN (5x6) (8-SOFL) 5-DFN (5x6) (8-SOFL) 5-DFN (5x6) (8-SOFL)
Package / Case 8-PowerTDFN, 5 Leads 8-PowerTDFN, 5 Leads 8-PowerTDFN, 5 Leads 8-PowerTDFN, 5 Leads
