Overview

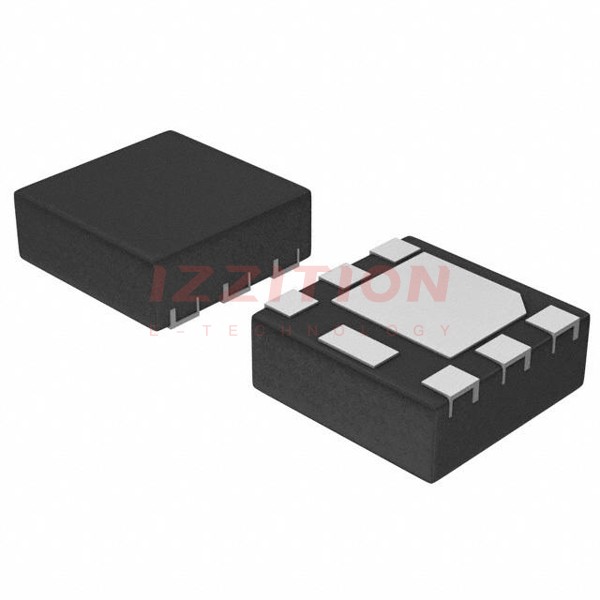

The NTLJS3113PT1G is a power MOSFET from onsemi, designed as a single P-channel device in a WDFN6 package. This component is notable for its low on-resistance and high current handling capabilities, making it suitable for various power management applications. The device features an exposed drain pad for excellent thermal conduction and is packaged in a compact 2x2 mm footprint, similar to the SC-88 package. It is also RoHS compliant, Pb-free, and halogen-free, ensuring environmental sustainability.
Key Specifications
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Drain-to-Source Voltage | VDSS | -20 | V |
| Gate-to-Source Voltage | VGS | ±8.0 | V |
| Continuous Drain Current (TA = 25°C) | ID | -5.8 | A |
| Continuous Drain Current (TA = 85°C) | ID | -4.4 | A |
| Pulsed Drain Current (tp = 10 μs) | IDM | -23 | A |
| Power Dissipation (TA = 25°C) | PD | 1.9 | W |
| On-Resistance (VGS = -4.5 V, ID = -3.0 A) | RDS(on) | 32-40 | mΩ |
| Junction-to-Ambient Thermal Resistance | RθJA | 65 | °C/W |
| Operating Junction and Storage Temperature | TJ, TSTG | -55 to 150 | °C |
Key Features
- Low on-resistance (RDS(on)) solution in a 2x2 mm package.
- Exposed drain pad for excellent thermal conduction.
- Compact 2x2 mm footprint, similar to SC-88 package.
- Low profile (< 0.8 mm) for easy fit in thin environments.
- Pb-free, halogen-free, and RoHS compliant.
- 1.5 V RDS(on) rating for operation at low voltage logic level gate drive.
Applications
- DC-DC converters (buck and boost circuits).
- Battery and load management applications in portable equipment such as cell phones, PDAs, media players, etc.
- High side load switch.
Q & A
- What is the maximum drain-to-source voltage of the NTLJS3113PT1G?
The maximum drain-to-source voltage is -20 V. - What is the continuous drain current at 25°C and 85°C?
The continuous drain current is -5.8 A at 25°C and -4.4 A at 85°C. - What is the on-resistance of the MOSFET at VGS = -4.5 V and ID = -3.0 A?
The on-resistance is 32-40 mΩ. - What is the junction-to-ambient thermal resistance?
The junction-to-ambient thermal resistance is 65 °C/W. - What are the operating and storage temperature ranges?
The operating and storage temperature ranges are -55 to 150 °C. - Is the NTLJS3113PT1G RoHS compliant?
Yes, the device is RoHS compliant, Pb-free, and halogen-free. - What are the typical applications of the NTLJS3113PT1G?
The typical applications include DC-DC converters, battery and load management in portable equipment, and high side load switches. - What is the package type and footprint of the NTLJS3113PT1G?
The package type is WDFN6 with a 2x2 mm footprint. - What is the maximum pulsed drain current?
The maximum pulsed drain current is -23 A for a pulse width of 10 μs. - What is the power dissipation at 25°C?
The power dissipation is 1.9 W at 25°C.
