Overview

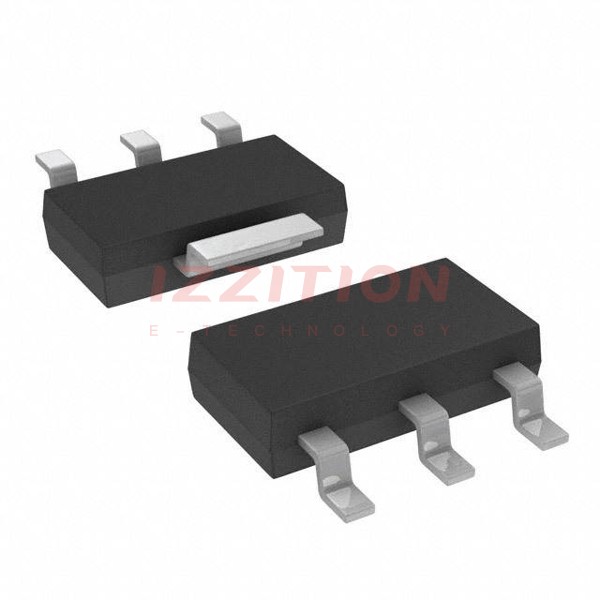

The NTF3055L175T3 is a Power MOSFET produced by onsemi, designed for low voltage, high speed switching applications. This N-Channel MOSFET is housed in a SOT-223 (TO-261) package and is suitable for use in power supplies, converters, power motor controls, and bridge circuits. It is a logic level device, making it compatible with a wide range of control signals.
Key Specifications
| Rating | Symbol | Value | Unit |
|---|---|---|---|
| Drain-to-Source Voltage | VDSS | 60 | Vdc |
| Drain-to-Gate Voltage (RGS = 1.0 MΩ) | VDGR | 60 | Vdc |
| Gate-to-Source Voltage | VGS | ±15 (Continuous), ±20 (Non-repetitive, tp ≤ 10 ms) | Vdc |
| Drain Current | ID | 2.0 A (Continuous @ TA = 25°C), 1.5 A (Continuous @ TA = 100°C), 6.0 A (Single Pulse, tp ≤ 10 μs) | A |
| Gate Threshold Voltage | VGS(th) | 1.0 - 2.0 Vdc | Vdc |
| Static Drain-to-Source On-Resistance | RDS(on) | 155 - 175 mΩ (VGS = 5.0 Vdc, ID = 1.0 A) | mΩ |
| Input Capacitance | Ciss | 194 - 270 pF (VDS = 25 Vdc, VGS = 0 V, f = 1.0 MHz) | pF |
| Turn-On Delay Time | td(on) | 10.2 - 20 ns (VDD = 30 Vdc, ID = 2.0 A, VGS = 5.0 Vdc, RG = 9.1 Ω) | ns |
Key Features
- Pb-Free Packages are Available
- Logic Level Gate Drive
- Low On-Resistance: 155 - 175 mΩ (VGS = 5.0 Vdc, ID = 1.0 A)
- High Speed Switching Capability
- Low Gate Charge: 5.1 - 10 nC (VDS = 48 Vdc, ID = 2.0 A, VGS = 5.0 Vdc)
Applications
- Power Supplies
- Converters
- Power Motor Controls
- Bridge Circuits
Q & A
- What is the maximum drain-to-source voltage of the NTF3055L175T3?
The maximum drain-to-source voltage (VDSS) is 60 Vdc.
- What is the typical on-resistance of the NTF3055L175T3?
The typical static drain-to-source on-resistance (RDS(on)) is 155 - 175 mΩ at VGS = 5.0 Vdc and ID = 1.0 A.
- What are the gate-to-source voltage limits for the NTF3055L175T3?
The continuous gate-to-source voltage (VGS) is ±15 Vdc, and the non-repetitive gate-to-source voltage is ±20 Vdc for tp ≤ 10 ms.
- What is the maximum drain current for the NTF3055L175T3?
The maximum continuous drain current (ID) is 2.0 A at TA = 25°C and 1.5 A at TA = 100°C.
- What are the typical switching times for the NTF3055L175T3?
The turn-on delay time (td(on)) is 10.2 - 20 ns, and the turn-off delay time (td(off)) is 14.3 - 30 ns.
- Is the NTF3055L175T3 Pb-Free?
- What is the input capacitance of the NTF3055L175T3?
The input capacitance (Ciss) is 194 - 270 pF at VDS = 25 Vdc, VGS = 0 V, and f = 1.0 MHz.
- What are the typical applications for the NTF3055L175T3?
The NTF3055L175T3 is typically used in power supplies, converters, power motor controls, and bridge circuits.
- What is the package type for the NTF3055L175T3?
The NTF3055L175T3 is housed in a SOT-223 (TO-261) package.
- What is the gate charge for the NTF3055L175T3?
The total gate charge (QT) is 5.1 - 10 nC at VDS = 48 Vdc, ID = 2.0 A, and VGS = 5.0 Vdc.
