Overview

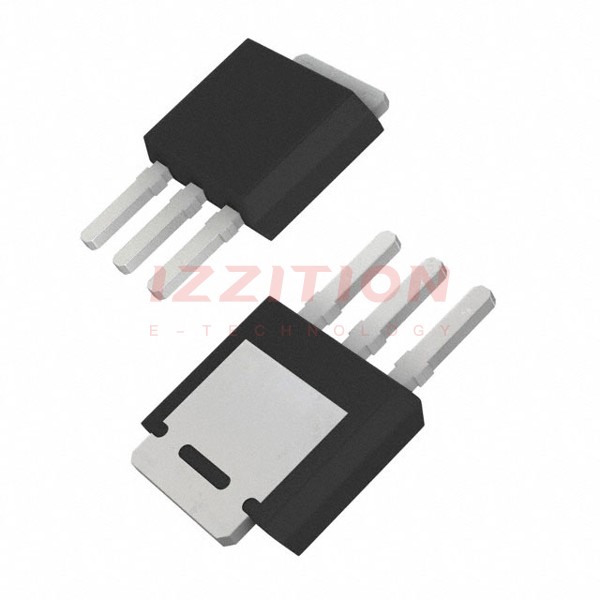

The NTD3055-150-1G is a power MOSFET produced by onsemi, designed for low voltage, high speed switching applications. This N-Channel MOSFET is available in both DPAK and IPAK packages and is RoHS compliant and Pb-Free. It is particularly suited for use in power supplies, converters, power motor controls, and bridge circuits. The device is also qualified for automotive and other applications requiring unique site and control change requirements, adhering to AEC-Q101 standards and PPAP capable.
Key Specifications
Rating | Symbol | Value | Unit |
---|---|---|---|
Drain-to-Source Voltage | VDSS | 60 | Vdc |
Drain-to-Gate Voltage (RGS = 10 MΩ) | VDGR | 60 | Vdc |
Gate-to-Source Voltage - Continuous | VGS | ±20 | Vdc |
Gate-to-Source Voltage - Non-repetitive (tp ≤ 10 ms) | VGS | ±30 | Vdc |
Drain Current - Continuous @ TA = 25°C | ID | 9.0 | A |
Drain Current - Continuous @ TA = 100°C | ID | 3.0 | A |
Drain Current - Single Pulse (tp ≤ 10 μs) | IDM | 27 | A |
Total Power Dissipation @ TA = 25°C | PD | 28.8 | W |
Operating and Storage Temperature Range | TJ, Tstg | -55 to 175 | °C |
Static Drain-to-Source On-Resistance (RDS(on)) | RDS(on) | 122 mΩ (Typ) | mΩ |
Maximum Lead Temperature for Soldering Purposes | TL | 260 | °C |
Key Features
- Designed for low voltage, high speed switching applications.
- AEC-Q101 qualified and PPAP capable for automotive and other applications requiring unique site and control change requirements.
- Pb-Free and RoHS compliant.
- Available in DPAK and IPAK packages.
- Low RDS(on) of 122 mΩ (Typical).
- High drain current of up to 9.0 A.
- High drain-to-source voltage of 60 V.
Applications
- Power Supplies
- Converters
- Power Motor Controls
- Bridge Circuits
Q & A
- What is the maximum drain-to-source voltage of the NTD3055-150-1G MOSFET?
The maximum drain-to-source voltage is 60 Vdc.
- What is the continuous drain current rating at 25°C for this MOSFET?
The continuous drain current rating at 25°C is 9.0 A.
- Is the NTD3055-150-1G MOSFET RoHS compliant and Pb-Free?
Yes, the NTD3055-150-1G MOSFET is RoHS compliant and Pb-Free.
- What are the typical applications for the NTD3055-150-1G MOSFET?
Typical applications include power supplies, converters, power motor controls, and bridge circuits.
- What is the maximum lead temperature for soldering purposes?
The maximum lead temperature for soldering purposes is 260°C.
- What is the static drain-to-source on-resistance (RDS(on)) of the NTD3055-150-1G?
The typical static drain-to-source on-resistance (RDS(on)) is 122 mΩ.
- Is the NTD3055-150-1G qualified for automotive applications?
Yes, it is AEC-Q101 qualified and PPAP capable for automotive and other applications requiring unique site and control change requirements.
- What are the available package types for the NTD3055-150-1G MOSFET?
The MOSFET is available in both DPAK and IPAK packages.
- What is the operating and storage temperature range for this MOSFET?
The operating and storage temperature range is -55°C to 175°C.
- What is the total power dissipation at 25°C for the NTD3055-150-1G MOSFET?
The total power dissipation at 25°C is 28.8 W.
