Overview

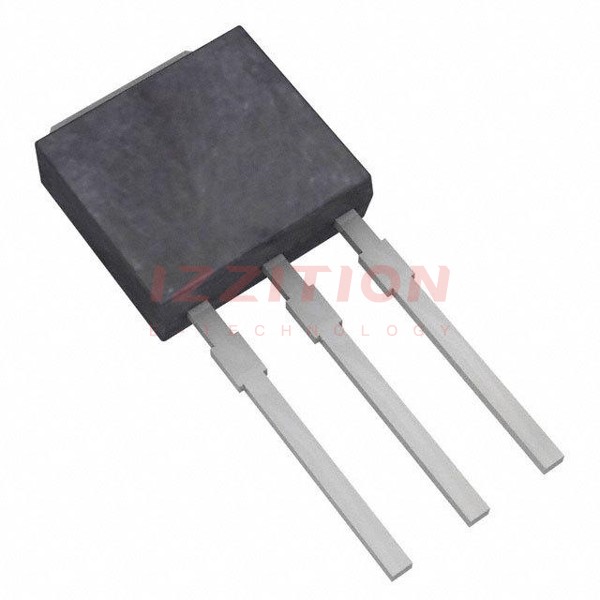

The FQU17P06TU is a P-Channel enhancement mode power MOSFET produced by onsemi, utilizing Fairchild Semiconductor’s proprietary planar stripe and DMOS technology. This advanced MOSFET is designed to reduce on-state resistance and provide superior switching performance along with high avalanche energy strength. It is suitable for a variety of applications requiring high current and voltage handling capabilities.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Drain-Source Voltage (VDSS) | -60 | V |
| Continuous Drain Current (ID) at TC = 25°C | -12 | A |
| Continuous Drain Current (ID) at TC = 100°C | -7.6 | A |
| Pulsed Drain Current (IDM) | -48 | A |
| Gate-Source Voltage (VGSS) | ±25 | V |
| Static Drain-Source On-Resistance (RDS(on)) at VGS = -10 V, ID = -6 A | 0.135 | Ω |
| Power Dissipation (PD) at TA = 25°C | 2.5 | W |
| Operating and Storage Temperature Range | -55 to +150 | °C |
| Thermal Resistance, Junction-to-Case (RθJC) | 2.85 | °C/W |
| Thermal Resistance, Junction to Ambient (RθJA) with minimum pad size | 110 | °C/W |
Key Features
- Low on-state resistance (RDS(on)) of 135 mΩ (max.) at VGS = -10 V, ID = -6 A
- Low gate charge (typ. 21 nC)
- Low Crss (typ. 80 pF)
- 100% avalanche tested
- High switching performance and high avalanche energy strength
- Wide operating temperature range from -55°C to +150°C
Applications
The FQU17P06TU is suitable for various high-power applications, including:
- Switched mode power supplies
- Audio amplifiers
- DC motor control
- Variable switching power applications
Q & A
- What is the maximum drain-source voltage of the FQU17P06TU?
The maximum drain-source voltage (VDSS) is -60 V. - What is the continuous drain current at 25°C and 100°C?
The continuous drain current is -12 A at 25°C and -7.6 A at 100°C. - What is the typical on-state resistance of the FQU17P06TU?
The typical on-state resistance (RDS(on)) is 0.135 Ω at VGS = -10 V, ID = -6 A. - What is the thermal resistance from junction to case?
The thermal resistance from junction to case (RθJC) is 2.85 °C/W. - What are the typical applications of the FQU17P06TU?
The FQU17P06TU is used in switched mode power supplies, audio amplifiers, DC motor control, and variable switching power applications. - What is the maximum power dissipation at 25°C?
The maximum power dissipation (PD) at TA = 25°C is 2.5 W. - What is the operating and storage temperature range of the FQU17P06TU?
The operating and storage temperature range is from -55°C to +150°C. - What is the gate-source voltage range?
The gate-source voltage (VGSS) range is ±25 V. - What is the typical gate charge?
The typical gate charge is 21 nC. - Is the FQU17P06TU 100% avalanche tested?
Yes, the FQU17P06TU is 100% avalanche tested.
