FDWS9509L-F085
  • Share:

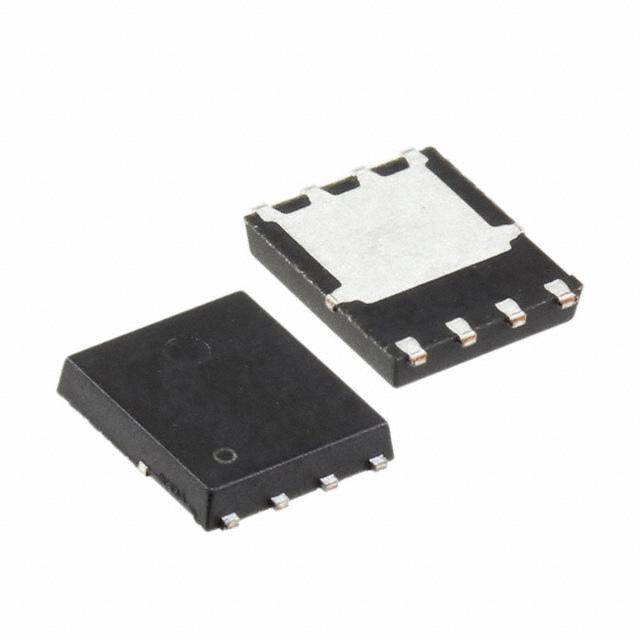

onsemi FDWS9509L-F085

Manufacturer No:
FDWS9509L-F085
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET P-CH 40V 65A 8DFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FDWS9509L-F085 is a P-Channel Logic Level Power Trench MOSFET manufactured by onsemi. This device is characterized by its high performance and reliability, making it suitable for a variety of automotive and industrial applications. It features a voltage rating of -40V, a current rating of -65A, and an on-resistance (RDS(on)) of 8mΩ. The MOSFET is also qualified to AEC Q101 standards and is RoHS compliant, ensuring environmental sustainability and automotive-grade reliability.

Key Specifications

ParameterValue
Channel PolarityP-Channel
VDS (V)-40
ID (A)-65
RDS(on) Max @ VGS = -10V (mΩ)8
RDS(on) Typ @ VGS = -10V, ID = -65A (mΩ)6.3
Qg(tot) Typ @ VGS = -10V, ID = -65A (nC)48
Package TypePower 56 (SO-8FL)
ComplianceRoHS Compliant, AEC Q101 Qualified

Key Features

  • Typical RDS(on) = 6.3 mΩ at VGS = -10V, ID = -65A
  • UIS Capability
  • Wettable flanks for automatic optical inspection (AOI)
  • Low on-resistance and high current capability
  • Logic level gate drive for ease of use in digital circuits

Applications

  • Automotive Engine Control
  • PowerTrain Management
  • Solenoid and Motor Drivers
  • Electronic Steering
  • Integrated Starter/Alternator
  • Distributed Power Architectures and VRM
  • Primary Switch for 12V Systems

Q & A

  1. What is the voltage rating of the FDWS9509L-F085 MOSFET?
    The FDWS9509L-F085 has a voltage rating of -40V.
  2. What is the current rating of the FDWS9509L-F085 MOSFET?
    The FDWS9509L-F085 has a current rating of -65A.
  3. What is the typical on-resistance (RDS(on)) of the FDWS9509L-F085?
    The typical on-resistance (RDS(on)) is 6.3 mΩ at VGS = -10V, ID = -65A.
  4. Is the FDWS9509L-F085 RoHS compliant?
    Yes, the FDWS9509L-F085 is RoHS compliant.
  5. What are the primary applications of the FDWS9509L-F085?
    The primary applications include automotive engine control, powertrain management, solenoid and motor drivers, electronic steering, and integrated starter/alternator systems.
  6. What is the package type of the FDWS9509L-F085?
    The package type is Power 56 (SO-8FL).
  7. Is the FDWS9509L-F085 qualified to any automotive standards?
    Yes, it is qualified to AEC Q101 standards.
  8. What is the typical total gate charge (Qg(tot)) of the FDWS9509L-F085?
    The typical total gate charge (Qg(tot)) is 48 nC at VGS = -10V, ID = -65A.
  9. Does the FDWS9509L-F085 support automatic optical inspection (AOI)?
    Yes, it has wettable flanks for automatic optical inspection (AOI).
  10. What is the reference price of the FDWS9509L-F085?
    The reference price is $0.5222 per unit.

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:65A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:8mOhm @ 65A, 10V
Vgs(th) (Max) @ Id:3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:67 nC @ 10 V
Vgs (Max):±16V
Input Capacitance (Ciss) (Max) @ Vds:3360 pF @ 20 V
FET Feature:-
Power Dissipation (Max):107W (Tj)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-DFN (5.1x6.3)
Package / Case:8-PowerTDFN
0 Remaining View Similar

In Stock

-
16

Please send RFQ , we will respond immediately.

Similar Products

Part Number FDWS9509L-F085 FDWS9508L-F085
Manufacturer onsemi onsemi
Product Status Obsolete Obsolete
FET Type P-Channel P-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V 40 V
Current - Continuous Drain (Id) @ 25°C 65A (Tc) 80A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V 4.5V, 10V
Rds On (Max) @ Id, Vgs 8mOhm @ 65A, 10V 4.9mOhm @ 80A, 10V
Vgs(th) (Max) @ Id 3V @ 250µA 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 67 nC @ 10 V 107 nC @ 10 V
Vgs (Max) ±16V ±16V
Input Capacitance (Ciss) (Max) @ Vds 3360 pF @ 20 V 4840 pF @ 20 V
FET Feature - -
Power Dissipation (Max) 107W (Tj) 214W (Tj)
Operating Temperature -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ)
Mounting Type Surface Mount Surface Mount
Supplier Device Package 8-DFN (5.1x6.3) 8-PQFN (5x6)
Package / Case 8-PowerTDFN 8-PowerTDFN
