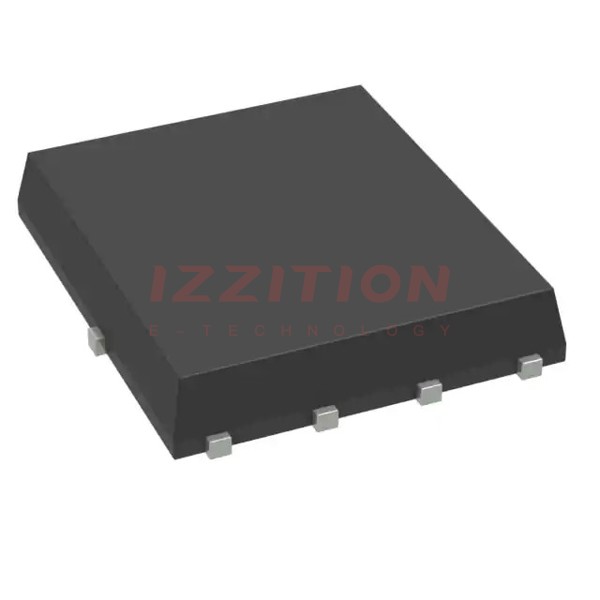

onsemi FDMS8333L

Manufacturer No:
FDMS8333L
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N CH 40V 22A POWER 56
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FDMS8333L is an N-Channel MOSFET designed and manufactured by onsemi. This device is specifically engineered to enhance the overall efficiency and minimize switch node ringing in DC-DC converters. It is part of the PowerTrench MOSFET family, known for its high performance and reliability in power management applications.

Key Specifications

ParameterValue
Voltage Rating (Vds)40 V
Continuous Drain Current (Id) at Ta22 A
Continuous Drain Current (Id) at Tc76 A
Power Dissipation (Pd) at Ta2.5 W
Power Dissipation (Pd) at Tc69 W
Package TypeSurface Mount 8-PQFN (5x6)
Maximum Drain Current (Idm)250 A

Key Features

  • High efficiency and low switch node ringing, making it ideal for DC-DC converters.
  • PowerTrench technology for improved performance and reliability.
  • High current handling capability with a maximum drain current of 250 A.
  • Compact surface mount 8-PQFN (5x6) package for space-efficient designs.

Applications

The FDMS8333L is suitable for a variety of power management applications, including:

  • DC-DC converters
  • Power supplies
  • Motor control systems
  • High-power switching circuits

Q & A

  1. What is the voltage rating of the FDMS8333L MOSFET?
    The voltage rating of the FDMS8333L MOSFET is 40 V.
  2. What is the continuous drain current at ambient temperature (Ta) for the FDMS8333L?
    The continuous drain current at ambient temperature (Ta) is 22 A.
  3. What is the continuous drain current at case temperature (Tc) for the FDMS8333L?
    The continuous drain current at case temperature (Tc) is 76 A.
  4. What is the maximum power dissipation at ambient temperature (Ta) for the FDMS8333L?
    The maximum power dissipation at ambient temperature (Ta) is 2.5 W.
  5. What is the maximum power dissipation at case temperature (Tc) for the FDMS8333L?
    The maximum power dissipation at case temperature (Tc) is 69 W.
  6. What package type does the FDMS8333L come in?
    The FDMS8333L comes in a surface mount 8-PQFN (5x6) package.
  7. What is the maximum drain current (Idm) for the FDMS8333L?
    The maximum drain current (Idm) for the FDMS8333L is 250 A.
  8. What technology is used in the FDMS8333L MOSFET?
    The FDMS8333L MOSFET uses PowerTrench technology.
  9. Where can the FDMS8333L be used?
    The FDMS8333L can be used in DC-DC converters, power supplies, motor control systems, and high-power switching circuits.
  10. Why is the FDMS8333L preferred in DC-DC converters?
    The FDMS8333L is preferred in DC-DC converters due to its high efficiency and ability to minimize switch node ringing.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:22A (Ta), 76A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:3.1mOhm @ 22A, 10V
Vgs(th) (Max) @ Id:3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:64 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:4545 pF @ 20 V
FET Feature:-
Power Dissipation (Max):2.5W (Ta), 69W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-PQFN (5x6)
Package / Case:8-PowerTDFN
