FDMC86260
  • Share:

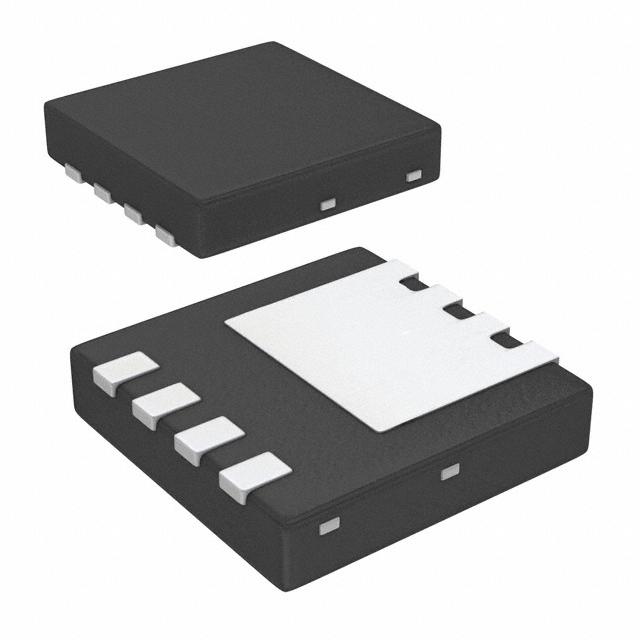

onsemi FDMC86260

Manufacturer No:
FDMC86260
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N CH 150V 5.4A POWER 33
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FDMC86260 is an N-Channel Power Trench® MOSFET produced by onsemi, utilizing an advanced Power Trench process. This technology is designed to minimize on-state resistance while maintaining superior switching performance. The MOSFET is suitable for various high-performance applications, including DC-DC power supplies, due to its low on-state resistance and high current handling capabilities.

Key Specifications

Parameter Value
Channel Polarity N-Channel
Drain to Source Voltage (Vdss) 150 V
Continuous Drain Current (Id) 25 A
On-State Resistance (rDS(on)) at Vgs = 10 V, Id = 5.4 A 34 mΩ
On-State Resistance (rDS(on)) at Vgs = 6 V, Id = 4.8 A 44 mΩ
Gate Threshold Voltage (Vgs(th)) ±4 V
Package Type PQFN-8
Maximum Power Dissipation (Pd) 65 W
Operating Junction Temperature -55°C to 150°C
Compliance RoHS Compliant, Lead-free

Key Features

  • High performance technology for extremely low on-state resistance (rDS(on))
  • Advanced Power Trench® process for superior switching performance
  • 100% UIL Tested for reliability
  • Lead-free and RoHS Compliant
  • Extended junction temperature rating up to 175°C for the ET150 variant

Applications

  • DC-DC power supplies
  • Merchant power supplies
  • High-performance switching applications
  • Power management systems requiring low on-state resistance and high current handling

Q & A

  1. What is the maximum drain to source voltage (Vdss) of the FDMC86260 MOSFET?

    The maximum drain to source voltage (Vdss) is 150 V.

  2. What is the continuous drain current (Id) rating of the FDMC86260?

    The continuous drain current (Id) rating is 25 A.

  3. What is the on-state resistance (rDS(on)) at Vgs = 10 V and Id = 5.4 A?

    The on-state resistance (rDS(on)) is 34 mΩ at Vgs = 10 V and Id = 5.4 A.

  4. Is the FDMC86260 RoHS Compliant and lead-free?
  5. What is the package type of the FDMC86260?

    The package type is PQFN-8.

  6. What are the typical applications of the FDMC86260?

    Typical applications include DC-DC power supplies, merchant power supplies, and other high-performance switching applications.

  7. What is the maximum power dissipation (Pd) of the FDMC86260?

    The maximum power dissipation (Pd) is 65 W.

  8. Does the FDMC86260 have any special testing?
  9. What is the operating junction temperature range of the FDMC86260?

    The operating junction temperature range is -55°C to 150°C.

  10. Is there a variant with an extended junction temperature rating?

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):150 V
Current - Continuous Drain (Id) @ 25°C:5.4A (Ta), 16A (Tc)
Drive Voltage (Max Rds On, Min Rds On):6V, 10V
Rds On (Max) @ Id, Vgs:34mOhm @ 5.4A, 10V
Vgs(th) (Max) @ Id:4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:21 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1330 pF @ 75 V
FET Feature:-
Power Dissipation (Max):2.3W (Ta), 54W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:Power33
Package / Case:8-PowerWDFN
0 Remaining View Similar

In Stock

$2.62
372

Please send RFQ , we will respond immediately.

Similar Products

Part Number FDMC86260 FDMC86160 FDMC86240
Manufacturer onsemi onsemi onsemi
Product Status Active Active Active
FET Type N-Channel N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 150 V 100 V 150 V
Current - Continuous Drain (Id) @ 25°C 5.4A (Ta), 16A (Tc) 9A (Ta), 43A (Tc) 4.6A (Ta), 16A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 6V, 10V 6V, 10V 6V, 10V
Rds On (Max) @ Id, Vgs 34mOhm @ 5.4A, 10V 14mOhm @ 9A, 10V 51mOhm @ 4.6A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA 4V @ 250µA 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 21 nC @ 10 V 22 nC @ 10 V 15 nC @ 10 V
Vgs (Max) ±20V ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 1330 pF @ 75 V 1290 pF @ 50 V 905 pF @ 75 V
FET Feature - - -
Power Dissipation (Max) 2.3W (Ta), 54W (Tc) 2.3W (Ta), 54W (Tc) 2.3W (Ta), 40W (Tc)
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Supplier Device Package Power33 Power33 8-MLP (3.3x3.3)
Package / Case 8-PowerWDFN 8-PowerWDFN 8-PowerWDFN
