FDMC86102L
  • Share:

onsemi FDMC86102L

Manufacturer No:
FDMC86102L
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 100V 7A/18A 8MLP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FDMC86102LZ is an N-Channel MOSFET produced by onsemi, utilizing their advanced PowerTrench® process with Shielded Gate technology. This technology optimizes the on-state resistance while maintaining superior switching performance. The MOSFET is designed for general usage and is suitable for a wide range of applications. It features a low profile and is 100% UIL tested, ensuring reliability and compliance with RoHS standards.

Key Specifications

Parameter Symbol Unit Min Max
Drain-to-Source Voltage VDS V - - 100
Gate-to-Source Voltage VGS V - - ±20
Continuous Drain Current at TC = 25°C ID A - - 22
Continuous Drain Current at TA = 25°C ID A - - 7
Pulsed Drain Current ID A - - 30
Power Dissipation at TC = 25°C PD W - - 41
Power Dissipation at TA = 25°C PD W - - 2.3
Operating and Storage Junction Temperature Range TJ, TSTG °C -55 - 150
Static Drain-to-Source On Resistance at VGS = 10 V, ID = 6.5 A RDS(on) mΩ - 19 24
Static Drain-to-Source On Resistance at VGS = 4.5 V, ID = 5.5 A RDS(on) mΩ - 25 35
Gate-to-Source Threshold Voltage VGS(th) V 1.0 1.6 2.2
Input Capacitance Ciss pF - 969 1290
Output Capacitance Coss pF - 181 240
Reverse Transfer Capacitance Crss pF - 9 15

Key Features

  • Shielded Gate MOSFET Technology: Enhances performance and reliability.
  • Low On-State Resistance: RDS(on) = 24 mΩ at VGS = 10 V, ID = 6.5 A and RDS(on) = 35 mΩ at VGS = 4.5 V, ID = 5.5 A.
  • HBM ESD Protection Level: > 6 kV typical.
  • 100% UIL Tested: Ensures reliability and robustness.
  • RoHS Compliant: Environmentally friendly.
  • Low Profile: 1 mm max in Power 33 package.

Applications

  • DC-DC Switching: Suitable for various DC-DC converter applications due to its low on-state resistance and superior switching performance.
  • General Power Management: Can be used in a wide range of power management circuits requiring high efficiency and reliability.

Q & A

  1. What is the maximum drain-to-source voltage of the FDMC86102LZ?

    The maximum drain-to-source voltage (VDS) is 100 V.

  2. What is the continuous drain current at TC = 25°C?

    The continuous drain current at TC = 25°C is 22 A.

  3. What is the on-state resistance at VGS = 10 V and ID = 6.5 A?

    The on-state resistance (RDS(on)) is 24 mΩ at VGS = 10 V and ID = 6.5 A.

  4. Is the FDMC86102LZ RoHS compliant?

    Yes, the FDMC86102LZ is RoHS compliant.

  5. What is the operating and storage junction temperature range?

    The operating and storage junction temperature range is -55°C to +150°C.

  6. What is the typical HBM ESD protection level?

    The typical HBM ESD protection level is > 6 kV.

  7. What is the package type of the FDMC86102LZ?

    The package type is WDFN8 (Pb-Free, Halide Free).

  8. What are the key applications of the FDMC86102LZ?

    The key applications include DC-DC switching and general power management.

  9. What is the thermal resistance from junction to case (RJC)?

    The thermal resistance from junction to case (RJC) is 3°C/W.

  10. What is the input capacitance (Ciss) of the FDMC86102LZ?

    The input capacitance (Ciss) is typically 969 pF.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:7A (Ta), 18A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:23mOhm @ 7A, 10V
Vgs(th) (Max) @ Id:3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:22 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1330 pF @ 50 V
FET Feature:-
Power Dissipation (Max):2.3W (Ta), 41W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount

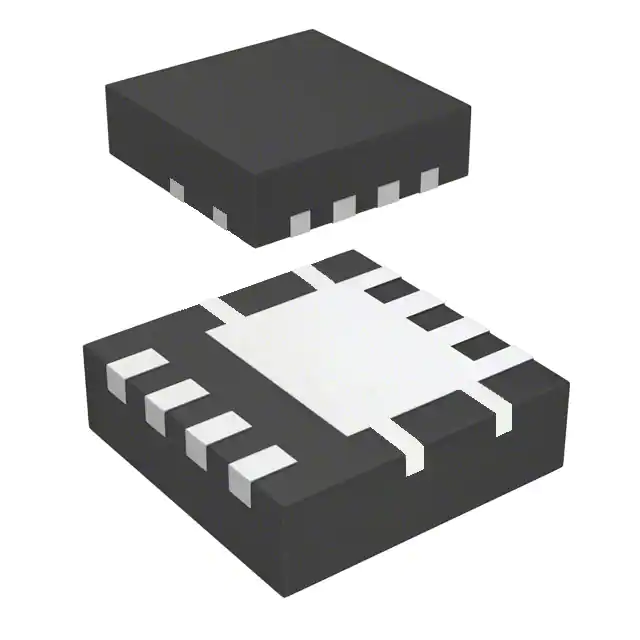

Supplier Device Package:8-MLP (3.3x3.3)
Package / Case:8-PowerWDFN
0 Remaining View Similar

In Stock

$1.65
154

Please send RFQ , we will respond immediately.

Similar Products

Part Number FDMC86102L FDMC86102LZ FDMC86102
Manufacturer onsemi onsemi onsemi
Product Status Active Active Active
FET Type N-Channel N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 100 V 100 V 100 V
Current - Continuous Drain (Id) @ 25°C 7A (Ta), 18A (Tc) 7A (Ta), 18A (Tc) 7A (Ta), 20A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V 4.5V, 10V 6V, 10V
Rds On (Max) @ Id, Vgs 23mOhm @ 7A, 10V 24mOhm @ 6.5A, 10V 24mOhm @ 7A, 10V
Vgs(th) (Max) @ Id 3V @ 250µA 2.2V @ 250µA 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 22 nC @ 10 V 22 nC @ 10 V 18 nC @ 10 V
Vgs (Max) ±20V ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 1330 pF @ 50 V 1290 pF @ 50 V 965 pF @ 50 V
FET Feature - - -
Power Dissipation (Max) 2.3W (Ta), 41W (Tc) 2.3W (Ta), 41W (Tc) 2.3W (Ta), 41W (Tc)
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Supplier Device Package 8-MLP (3.3x3.3) 8-MLP (3.3x3.3) Power33
Package / Case 8-PowerWDFN 8-PowerWDFN 8-PowerTDFN
