Overview
The FDMC8010DC is an N-Channel MOSFET produced by onsemi, utilizing their advanced POWERTRENCH process and DUAL COOL package technology. This device is designed to offer the lowest on-state resistance (rDS(on)) while maintaining excellent switching performance and low junction-to-ambient thermal resistance. It is part of onsemi's lineup of high-performance MOSFETs, tailored for applications requiring high current handling and efficient thermal management.
Key Specifications
Parameter | Symbol | Min | |||
---|---|---|---|---|---|
Drain to Source Voltage | VDS | - | - | 30 | V |
Gate to Source Voltage | VGS | - | - | ±20 | V |
Continuous Drain Current (TC = 25°C) | ID | - | - | 157 | A |
Continuous Drain Current (TC = 100°C) | ID | - | - | 99 | A |
Pulsed Drain Current | ID | - | - | 788 | A |
Power Dissipation (TC = 25°C) | PD | - | - | 50 | W |
Operating and Storage Junction Temperature Range | TJ, TSTG | -55 | - | 150 | °C |
Static Drain to Source On Resistance (VGS = 10 V, ID = 37 A) | rDS(on) | 0.91 | 1.28 | - | mΩ |
Static Drain to Source On Resistance (VGS = 4.5 V, ID = 32 A) | rDS(on) | 1.2 | 1.74 | - | mΩ |
Thermal Resistance, Junction to Ambient | RθJA | - | - | 42 | °C/W |
Key Features
- DUAL COOL Top Side Cooling PQFN Package, enhancing thermal performance.
- Low on-state resistance (rDS(on)) of 1.28 mΩ at VGS = 10 V, ID = 37 A, and 1.74 mΩ at VGS = 4.5 V, ID = 32 A.
- High performance technology for extremely low rDS(on) and excellent switching characteristics.
- Pb-free and RoHS compliant, ensuring environmental sustainability.
- Low thermal resistance, with RθJC of 2.5 °C/W and RθJA of 42 °C/W under specified conditions.
Applications
- Load Switch
- Motor Bridge Switch
- Synchronous Rectifier
- Other high-current switching applications requiring efficient thermal management.
Q & A
- What is the maximum drain to source voltage for the FDMC8010DC?
The maximum drain to source voltage (VDS) is 30 V.
- What is the typical on-state resistance (rDS(on)) at VGS = 10 V and ID = 37 A?
The typical on-state resistance (rDS(on)) is 1.28 mΩ.
- What is the continuous drain current rating at TC = 25°C?
The continuous drain current rating at TC = 25°C is 157 A.
- What is the thermal resistance from junction to ambient (RθJA) under standard conditions?
The thermal resistance from junction to ambient (RθJA) is 42 °C/W.
- Is the FDMC8010DC Pb-free and RoHS compliant?
Yes, the FDMC8010DC is Pb-free and RoHS compliant.
- What are some common applications for the FDMC8010DC?
Common applications include load switches, motor bridge switches, and synchronous rectifiers.
- What is the operating and storage junction temperature range for the FDMC8010DC?
The operating and storage junction temperature range is -55°C to +150°C.
- What is the maximum power dissipation at TC = 25°C?
The maximum power dissipation at TC = 25°C is 50 W.
- What package type is used for the FDMC8010DC?

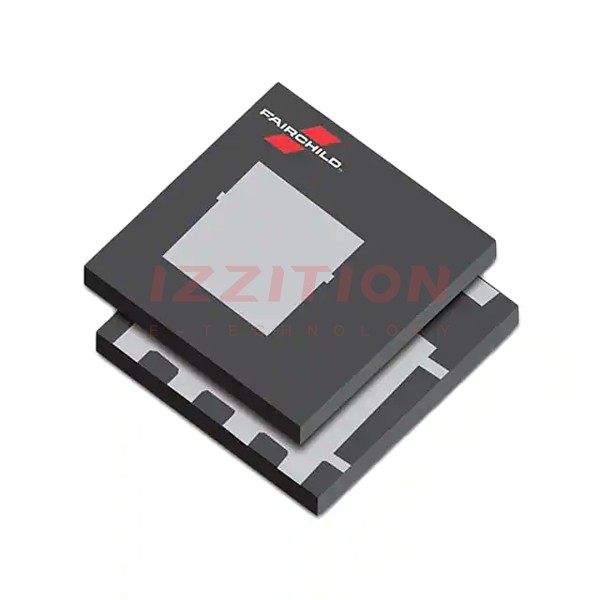

The FDMC8010DC uses a DUAL COOL Top Side Cooling PQFN Package.
- What are the dimensions of the PQFN package?
The PQFN package dimensions are 3.3x3.3 mm.
